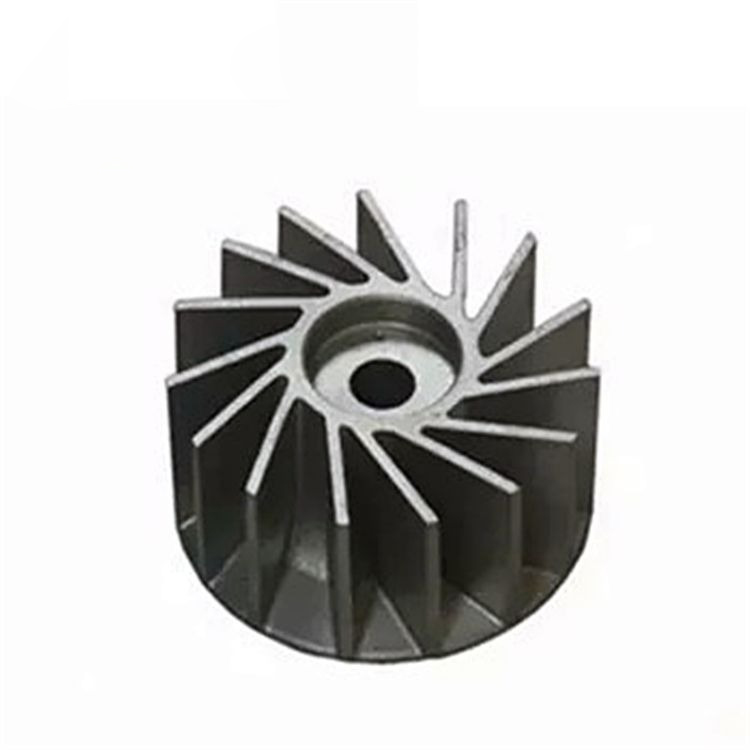

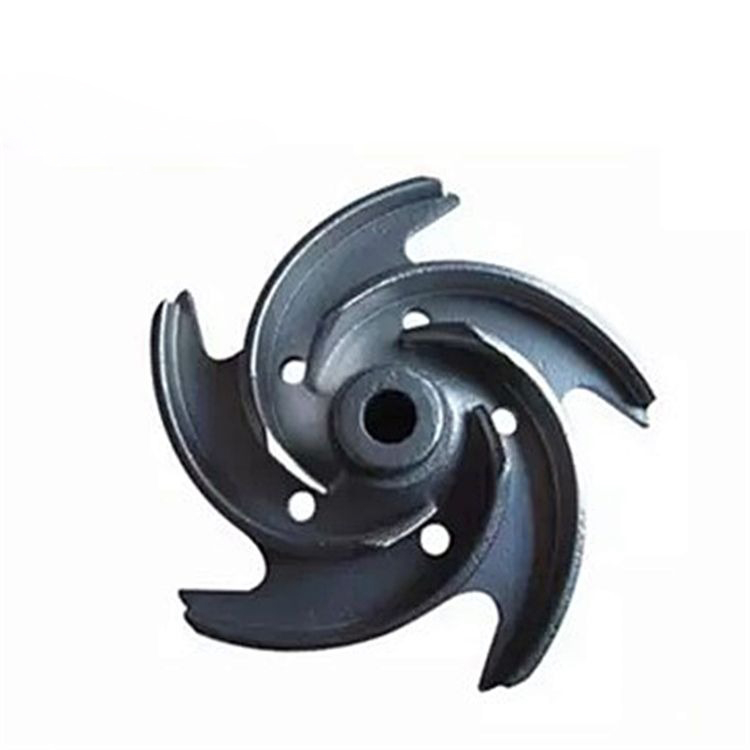

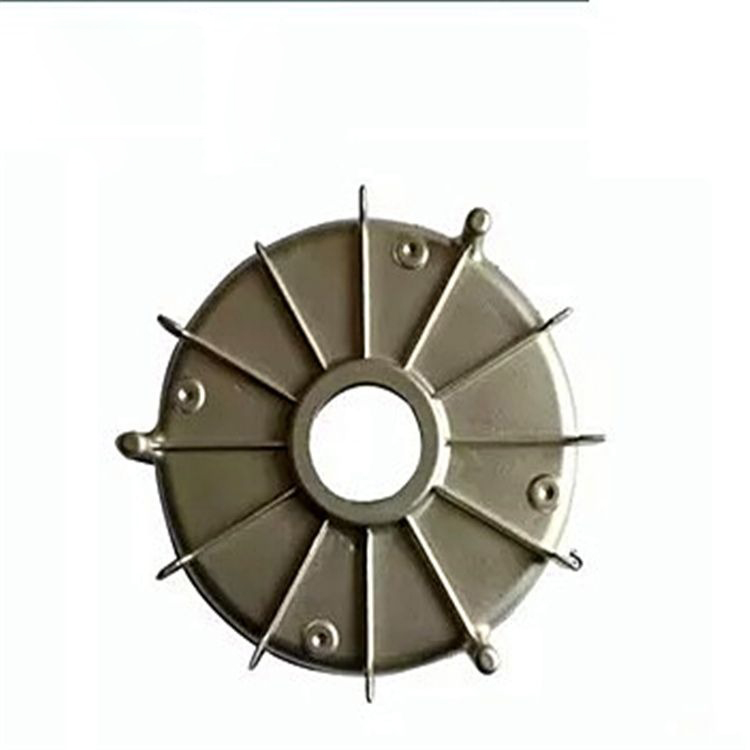

Pump lmpeller

Why choose us?

1. Precision casting process

Silica sol investment casting, minimum wall thickness 1.2mm, dimensional accuracy CT5 level

Vacuum casting technology, porosity < 0.5%, X-ray detection in accordance with ASTM E155

3D printing wax molds quickly verify fluid properties

2. Intelligent CNC machining

The five-axis linkage machining center guarantees a tolerance of ±0.05°

Online laser detection compensates tool wear in real time

Electrolytic polishing (EP) process reduces surface resistance

3. Full life cycle test

Material spectroscopic analysis (PMI) ensures that the composition is up to standard

High-speed water tunnel test (flow rate ≤25m/s) to verify the cavitation performance

200 hours continuous running test (API 682 standard)

Product introduction

304 stainless steel oil pump impeller casting products, with significant product and process advantages. Products are made of high-quality 304 stainless steel, chemical composition and mechanical properties strictly meet international standards, to ensure high strength, corrosion resistance and good processing performance, suitable for a variety of industrial application scenarios. In terms of technology, the company has its own stainless steel investment casting production line and machining production line, which can provide one-stop service and control the quality of the whole process from mold design and manufacturing to finished product processing. The company is equipped with advanced CNC machining center, manufacturing molds by itself to ensure high precision and production efficiency.

Our advantage

1. Excellent hydrodynamic performance

Adopt precision casting + 5-axis CNC machining, blade profile error ≤0.1mm, ensure hydraulic efficiency ≥92%

The surface of the runner is polished to Ra0.8μm, reducing turbulence loss and saving 15%~20% energy than ordinary impeller

Dynamic balance rating up to G2.5 (ISO 1940), vibration value < 1.5mm/s

2. Super corrosion resistance

304/316 stainless steel (optional duplex steel 2205), acid and alkali resistance, seawater corrosion resistance

Passed 2000 hours of salt spray testing (ASTM B117) and intergranular corrosion testing (ASTM A262-E)

It is suitable for harsh conditions such as sour crude oil and chemical medium

3. Long service life

Anti-cavitation design (NPSHR value optimization 30%)

The surface can be nitrided (HV≥1000) or tungsten carbide spray, and the wear resistance life is increased by 3 to 5 times

Bench test life > 30,000 hours (API 610 standard)

4. Modular compatible design

Support ANSI/API/DIN and other interface standards

Traditional cast iron/bronze impellers can be replaced without changing the pump body

A full range of closed/semi-open/open impeller types are available

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample
