Aluminum Bronze Brass Casting Service

Why choose us?

1. Intelligent die casting system

Aluminum die casting: 800T cold chamber machine (vacuum auxiliary ≤50mbar)

Zinc die casting: 300T hot chamber machine (injection speed ≥5m/s)

2. Mold innovation technology

Aluminum die casting mold: nano coating (hardness HV2800), life of 200,000 mold times

Zinc die casting mold: two-color injection mold frame, quick change ≤15 minutes

3. Special post-treatment

Aluminum: T6 heat treatment (hardness HB80-90) + micro-arc oxidation (corrosion resistance increased by 8 times)

Zinc parts: Passivated coating (chromate conversion film, corrosion resistance ≥720 hours)

4. Digital detection system

Coordinate measurement (aluminum ±0.02mm/ Zinc ±0.015mm)

CT scanning (zinc internal pore detection resolution 30μm)

Spectral analysis (component deviation ≤0.5%)

Product introduction

This precision aluminum/zinc die casting is made of ADC12 aluminum alloy (9.6-12% silicon content) and Zamak 5 zinc alloy, and is molded by 800T cold chamber (aluminum) and 300T hot chamber (zinc) die casting machines for 0.3-0.5mm ultra-thin-walled complex structures. The product was enhanced by T6 heat treatment (aluminum HB80-90) and passivation coating (zinc corrosion resistance 720 hours +), and strictly tested with three coordinates (±0.015mm) and CT scanning (30μm resolution).

Our advantage

1. Bimetallic material system

Aluminum alloy: ADC12 (GB/T 15115, silicon content 9.6-12%), AlSi10Mg (tensile ≥310MPa)

Zinc alloy: Zamak 3 (ASTM B86, hardness ≥82HB), Zamak 5 (30% better wear resistance)

2. Complex structure precision molding

Minimum wall thickness: aluminum 0.5mm/ zinc 0.3mm

Maximum projected area: aluminum 600cm²/ zinc 300cm²

Can be integrated: threaded inserts, buckle structure, heat fin

3. Industry customized solutions

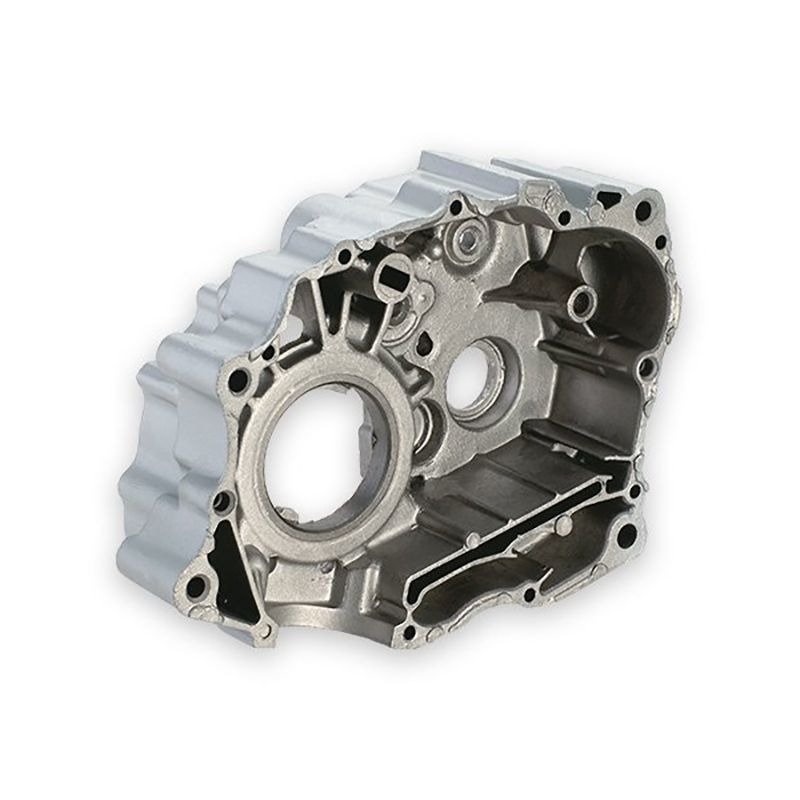

Automobile: gearbox housing (oil duct tightness ≤0.1ml/min)

Electronics: 5G base station housing (EMI shielding ≥60dB)

Home appliances: precision gear box (noise ≤35dB)

4. Strict quality certification

X-ray inspection of aluminum parts (ASTM E505, porosity ≤0.3%)

Salt spray test for zinc parts (ASTM B117, ≥500 hours)

Meets IATF 16949 automotive standards

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample.
