Cast Iron Parts

Why choose us?

1. Composite shell making technology

Silica sol + zirconium sand 9 layers coating, shell high temperature strength ≥1600℃

Customized slurry viscosity control (±3%), reproduced 0.1mm fine texture

2. Vacuum assisted casting

Pouring vacuum ≤50mbar, liquid metal filling integrity ≥99.5%

Directional solidification technology: shrinkage reduction of 70%

3. Digital finishing

Five axis linkage machining center: form and position tolerance ±0.015mm

Micron EDM: depth-diameter ratio 15:1 microhole

4. Special surface treatment

Electroless nickel plating: hardness HV≥600, corrosion resistance increased by 5 times

Micro arc oxidation: ceramic layer thickness 50-100μm, insulation resistance ≥100MΩ

Product introduction

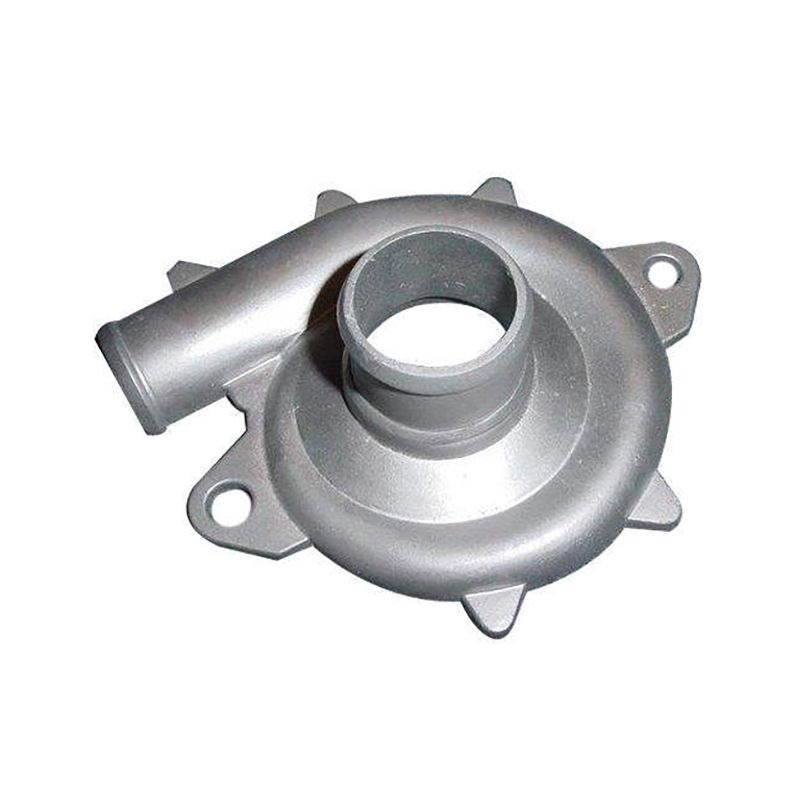

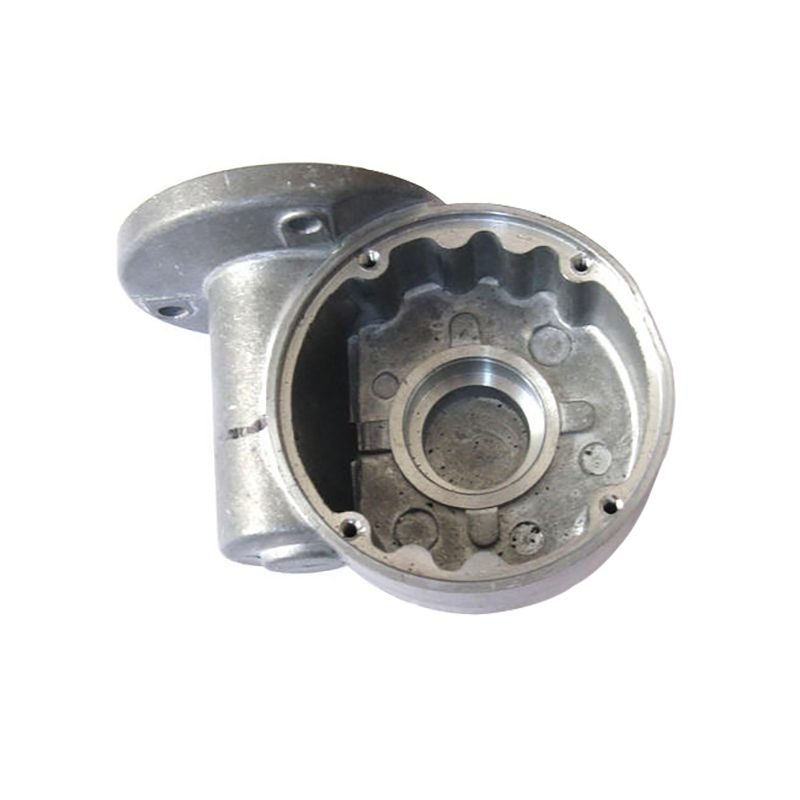

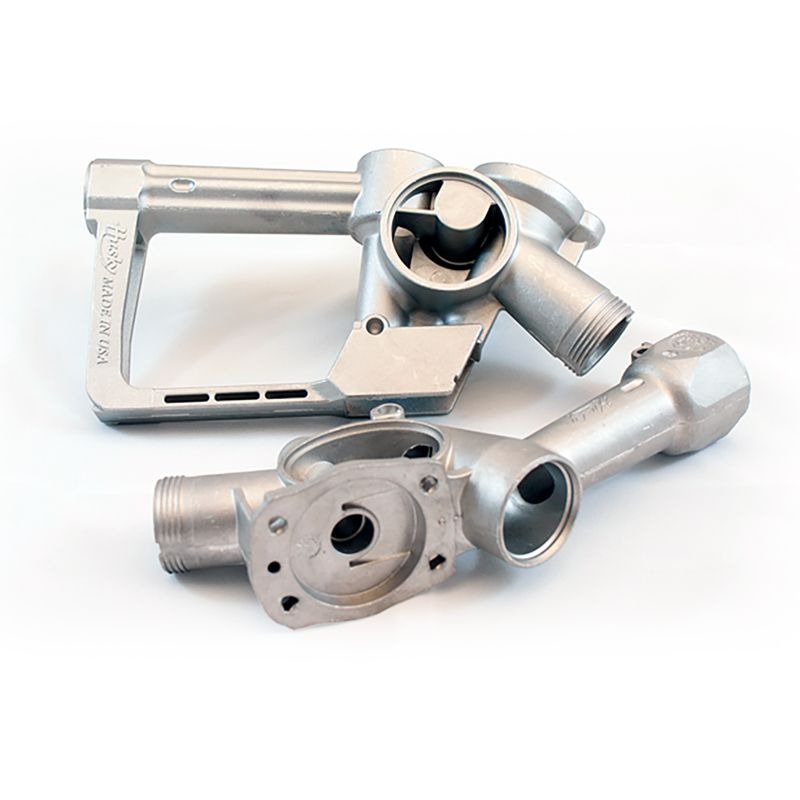

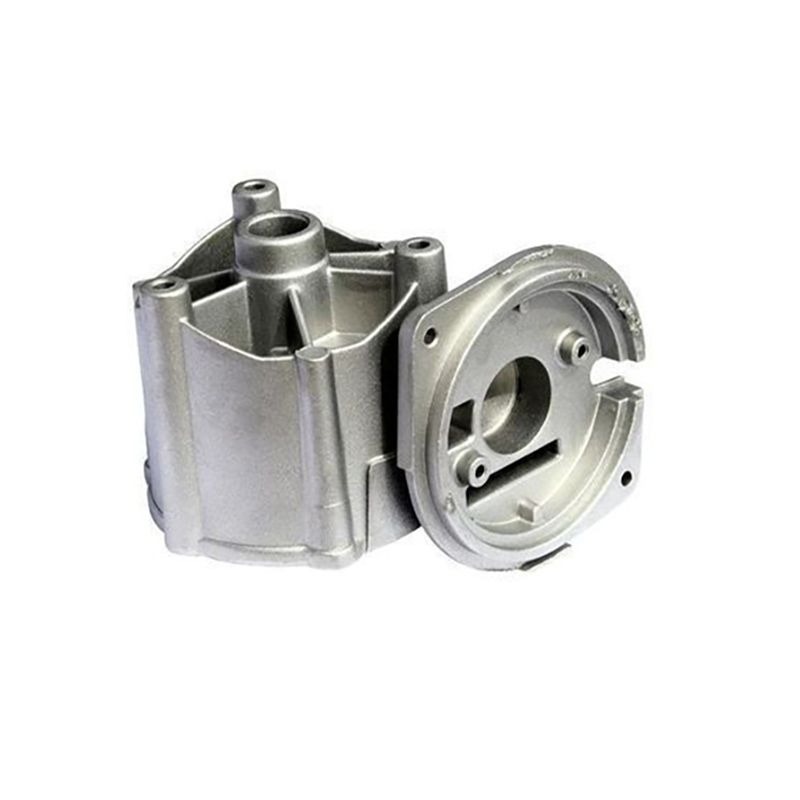

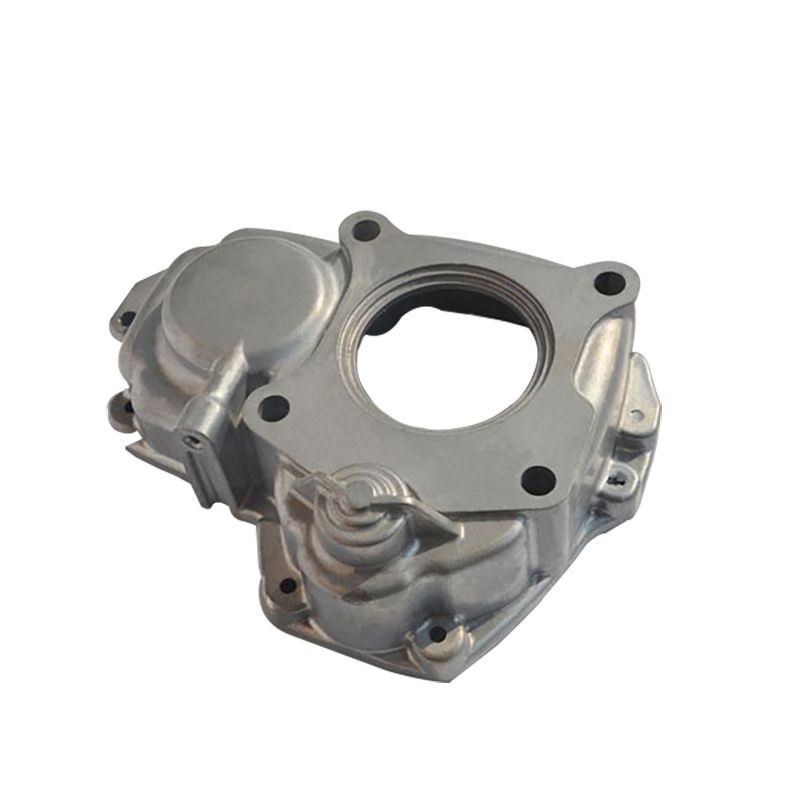

This aluminum alloy investment casting is made of ZL101A/AlSi7Mg and other high quality alloy (tensile strength ≥240MPa), through 9 layers of silica sol composite shell (1600℃ high temperature strength) and vacuum assisted casting (≤50mbar) process, to achieve 0.8mm ultra-thin wall complex structure molding (CT5 level accuracy). After five-axis precision machining (±0.015mm) and electroless nickel plating (HV≥600) treatment, key components such as aviation frame (weight reduction 35%), semiconductor cavity (vacuum leakage rate ≤1×10⁻⁹Pa·m³/s) through X-ray inspection (ASTM E155) and three-dimensional scanning (±0.01mm) strict inspection, monthly production capacity of 80 tons, Support topology optimization design and free foundry simulation services.

Our advantage

1. Precision material selection

ZL101A/ZL104 (GB/T 1173) and AlSi7Mg (EN AC-42100), excellent fluidity (silicon content 7-12%)

Mechanical properties: ZL104 tensile strength ≥240MPa, elongation ≥5%

2. Ultra-high precision molding

The minimum wall thickness is 0.8mm and the minimum aperture is 1.0mm

Dimensional accuracy CT5 (ISO 8062), surface roughness Ra≤3.2μm (as-cast)

3. Integration of complex structures

Can cast 0.5mm thin-wall mesh, special-shaped runner, precision gear tooth shape

4. Strict quality certification

Provide X-ray inspection report (ASTM E155, detection of Φ0.3mm defects)

Compliant with ISO 9001 and AS9100 aviation standards

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample.
