Pump Parts

Why choose us?

1. Precision investment casting

Silica sol 7-layer shell: shell high temperature strength ≥1600℃

Vacuum directional solidification: shrinkage rate ≤0.5%

2. Intelligent processing system

Germany DMG five-axis machining center:

Positioning accuracy ±0.003mm

Deep hole drilling capacity depth to diameter ratio 20:1

Swiss STUDER cylindrical grinding: roundness ≤0.005mm

3. Surface strengthening technology

Electrolytic polishing: Surface roughness Ra≤0.4μm

Low temperature ion nitriding: surface hardness HV≥900

4. Whole process inspection

Industrial CT Scan (resolution 25μm)

Coordinate measurement (key size ±0.015mm)

Spectral analysis (component deviation ≤0.3%)

Product introduction

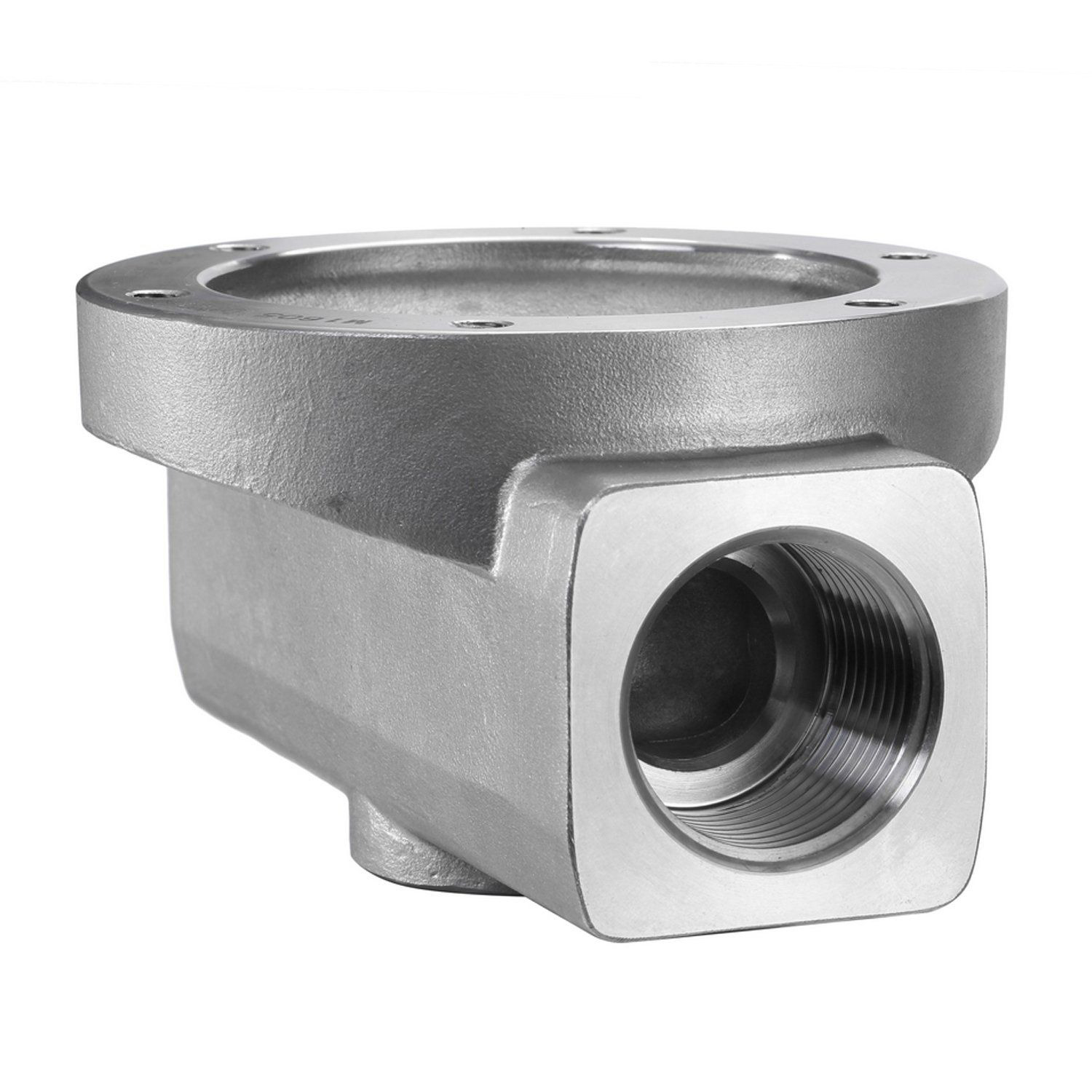

This 304 stainless steel precision casting for automotive engines is made of ASTM A743 standard material, and 1.5mm thin-wall complex flow channel molding is achieved by multi-layer silica sol investment casting process (CT6 precision). After five-axis CNC finishing (tolerance ±0.02mm) and electrolytic polishing (Ra≤0.4μm), key parts such as oil pump housing through X-ray inspection (ASTM E155) and 200-hour dynamic pressure test, perfect for turbocharging system.

Our advantage

1. Selection of high-performance materials

304 stainless steel (ASTM A743 standard), key properties:

Nickel content 8-10.5%, chromium content 18-20%

Tensile strength ≥515MPa, temperature resistance -40℃~800℃

Certified by IATF 16949 Automotive industry

2. Fluid dynamics optimization

Minimum wall thickness 1.5mm, runner roughness Ra≤1.6μm (cast)

Castable:

Turbocharged oil pump housing (pressure ≥1.2MPa)

High pressure fuel rail (burst pressure ≥30MPa)

Precision fit characteristic

3. Machining accuracy:

Shaft hole with H7/g6 grade

Flatness ≤0.03mm/100mm

Dynamic balance rating G6.3 (ISO 1940)

4. Strict quality certification

100% X-ray inspection (ASTM E155, Φ0.3mm defects detected)

Pulse pressure test: 500,000 cycles (SAE J2743)

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample.
