Why choose us?
1. High precision transmission gear
Provide helical gear, planetary gear, bevel gear and other precision transmission gear, transmission accuracy can reach DIN 6 standard. High quality alloy steel (such as 20CrMnTi) or stainless steel material, after special heat treatment of the surface hardness of HRC58-62
2. Customized design ability
Supports gear customization in the module range 0.5-10mm. Can provide special tooth shape design (such as involute, arc tooth, etc.) to meet different transmission needs
3. Excellent mechanical properties
The gear mesh noise is less than 65dB, the transmission efficiency is more than 98%, and the service life is more than 100,000 hours
4. Strict quality control
The gear measuring center is used for full parameter inspection, according to ISO 1328 accuracy standard
Product introduction

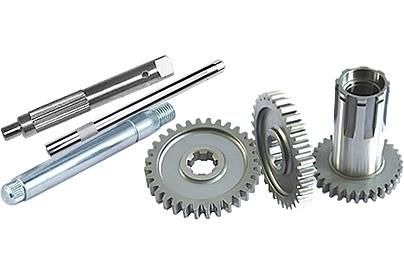

Transmission gear is the core component of mechanical transmission, which is widely used in industrial robots, automotive gearboxes and medical equipment. Using high-quality alloy steel and precision machining technology, with high precision (error ≤5μm), high strength (hardness HRC60), low noise (< 65dB) and long life (100,000 hours +) and other characteristics, through strict testing to ensure excellent performance, to provide efficient and reliable power transmission solutions for all kinds of equipment.
Our advantage
1. Precision machining technology
The CNC hobbing machine imported from Switzerland is used for machining, the tooth shape error is less than 0.01mm, and the Klingberg gear grinder from Germany is used for finishing
2.Advanced heat treatment technology
Carburizing quenching process, hardening layer depth 0.8-1.2mm, vacuum heat treatment to ensure that the gear does not deformation
3. Surface strengthening treatment
Optional shot peening process can increase fatigue strength by 30%
4. Provide surface treatment such as nickel plating and black oxide
4. Complete testing system
The coordinate measuring instrument detects the geometrical parameters of the gear, the spectral analyzer ensures the accurate composition of the material, and the metallographic microscope examines the structure.
Detail data
Application | Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery |
Material Type | Stainless steel |
Standard | CE, ROHS, SGS |
CNC Machining | CNC Machined Parts |
Molding Technics | Lost Wax Casting |
Weight | 1.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
