Investment Casting Pipe Fittings

Why choose us?

1. High quality stainless steel

304/316 medical grade stainless steel with excellent corrosion resistance (through 48-hour salt spray test) and mechanical strength (tensile strength ≥515MPa)

2. Precision structure molding

It can produce complex pipe fittings with wall thickness of more than 1.5mm, dimensional accuracy of CT7 level (ISO 8062 standard), surface roughness Ra≤3.2μm, reducing subsequent processing

3. Diversify the product range

Covering pipe fittings, valve fittings, instrument components, etc., support non-standard customization, minimum aperture up to φ2mm

4. Strict quality control system

100% penetration test (ASTM E165 standard), material spectrum analysis report is provided with the goods

Product introduction

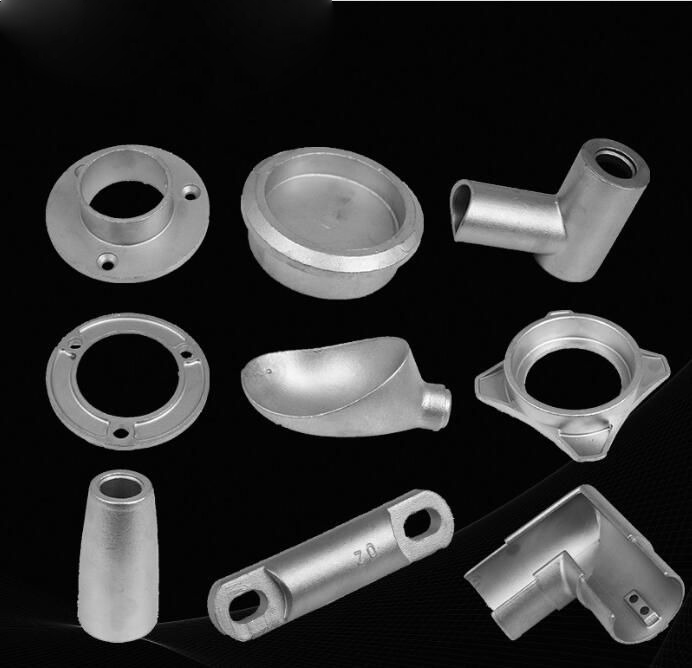

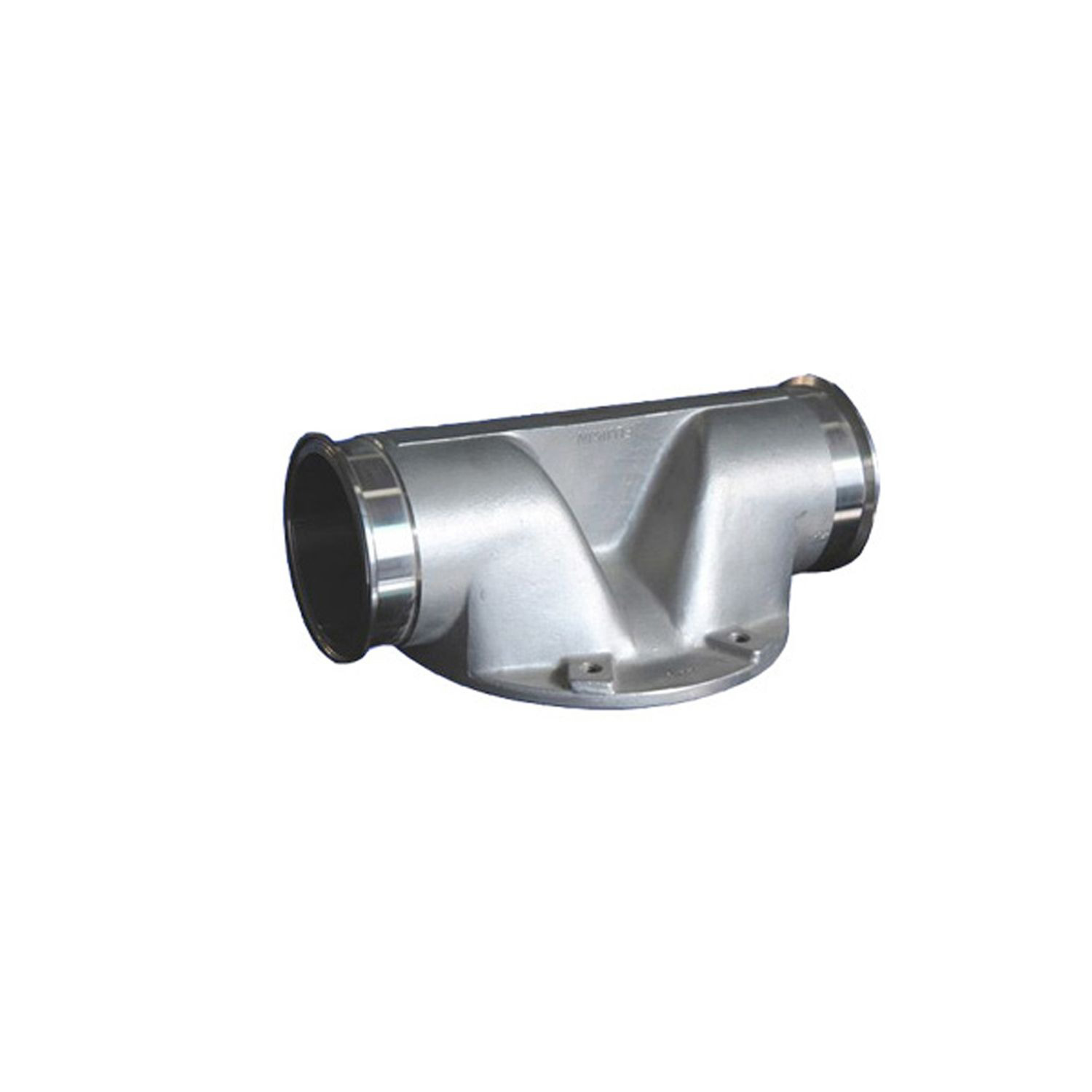

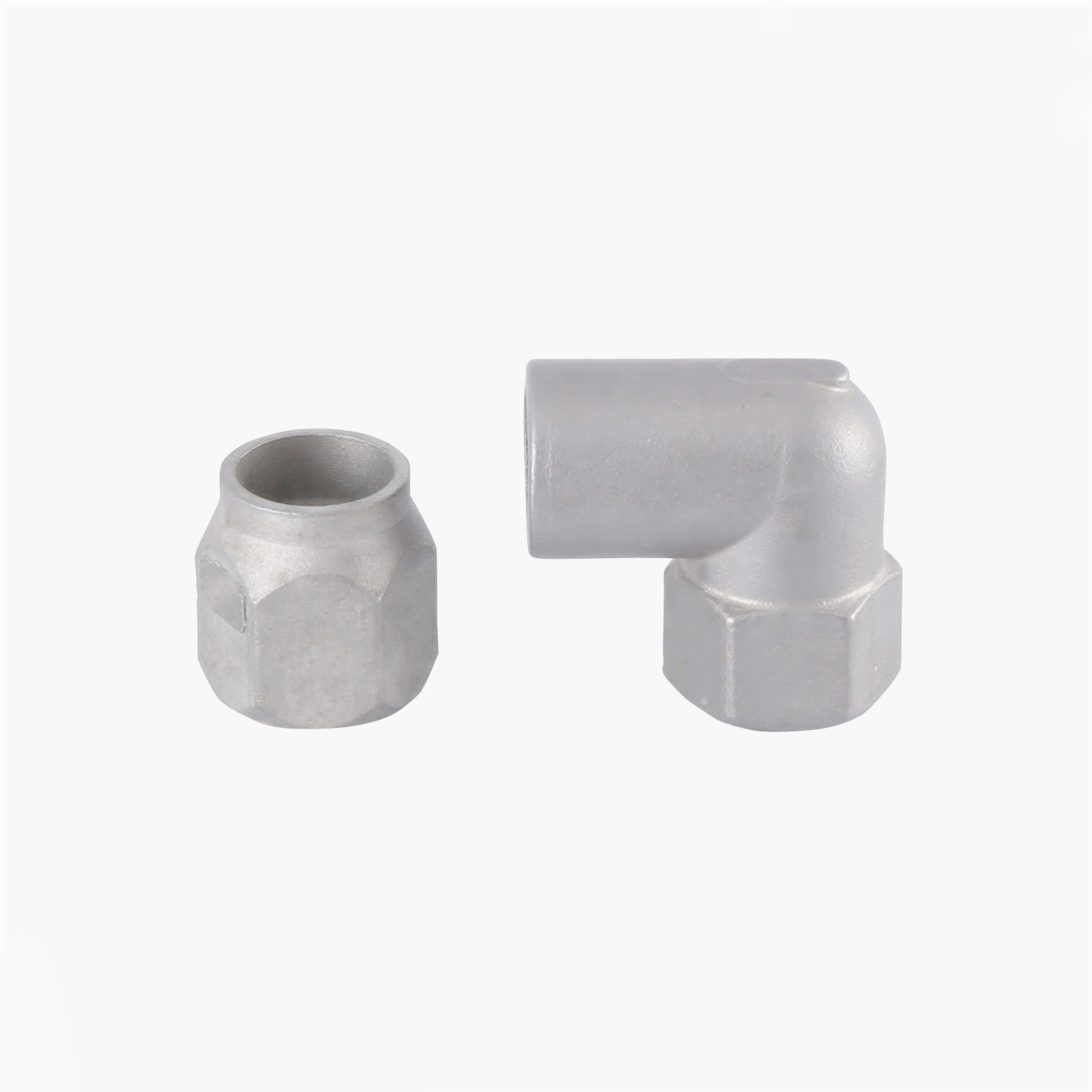

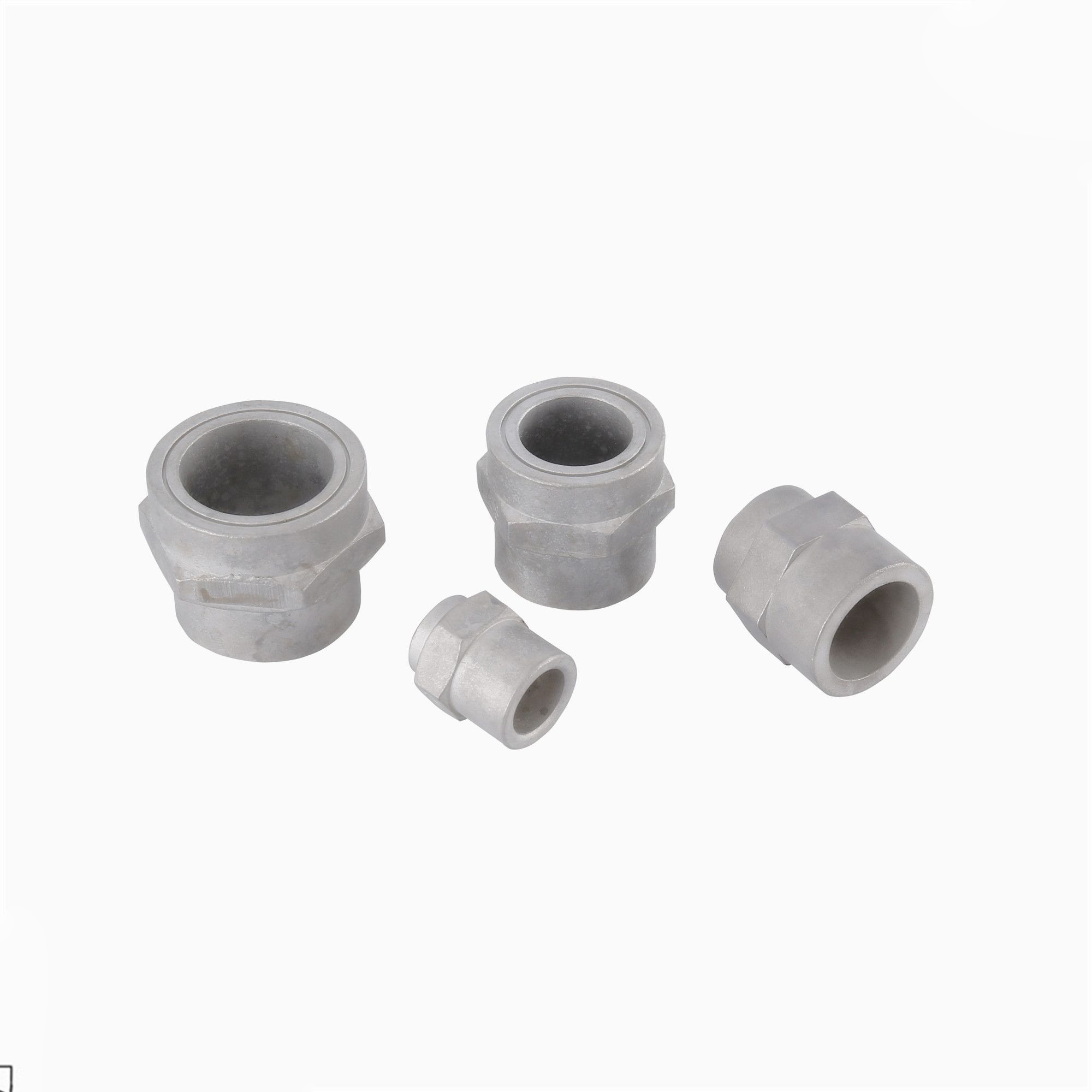

304/316 stainless steel investment casting pipe fittings using investment casting process, with excellent corrosion resistance (through 48-hour salt spray test) and high precision (CT7 level), widely used in chemical, food, medical and energy industries. Through the silica sol shell (7-layer coating) and vacuum casting process, it can produce complex structural parts with a minimum φ2mm hole. After electrolytic polishing (Ra≤0.8μm) and solution treatment, it has high cleanliness and high strength. With coordinate measurement (±0.01mm) and penetration detection and other strict testing, especially suitable for high-precision, high-cleanliness requirements of small batch pipe production.

Our advantage

1. Precision investment casting

Silica sol shell process (7 layers of coating), the shell temperature resistance of 1600℃, vacuum casting to reduce porosity defects

2. Advanced post-processing

Electrolytic polishing reduces the surface Ra value to 0.8μm, solid solution treatment (1050℃ water quenching) to optimize the crystal phase structure, professional testing equipment

3. Coordinate Measuring instrument (±0.01mm accuracy)

Metallographic microscopy for inclusion detection (according to ASTM E45 standards) is typically used in chemical pipelines, food machinery, medical equipment and other fields where cleanliness and corrosion resistance are strictly required.

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample.
