Why choose us?
1. Composite precision casting
7 layers of silica sol shell: shell high temperature strength ≥1600℃
Vacuum assisted casting: Casting density ≥99.5% (X-ray testing ASTM E155)
2. Five-axis CNC finishing
Ultrasonic vibration cutting (200% efficiency increase)
Deep hole machining capacity depth-diameter ratio 30:1
3. Surface engineering treatment
Electrolytic polishing (medical grade) : Ra≤0.4μm, passivation chromium content ≥20%
Laser cladding: wear layer hardness ≥HRC60
4. Full-dimensional detection system
Industrial CT Scan: Resolution 20μm (ASTM E1695)
Cleanliness test: Residual particles ≤0.05mg/cm² (ISO 16232)
Pressure test: Helium mass spectrometry leak detection rate ≤1×10⁻⁹Pa·m³/s
Product introduction

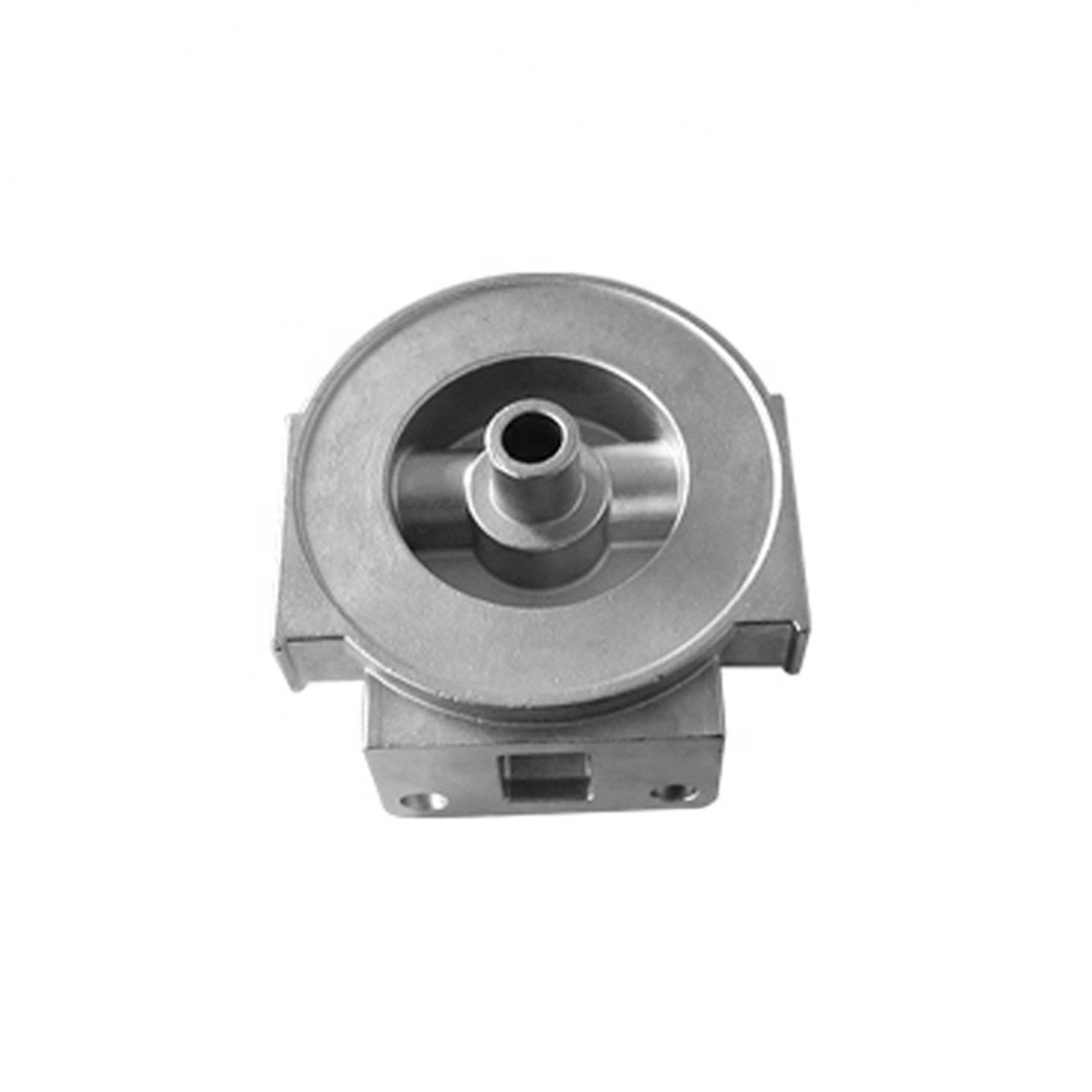

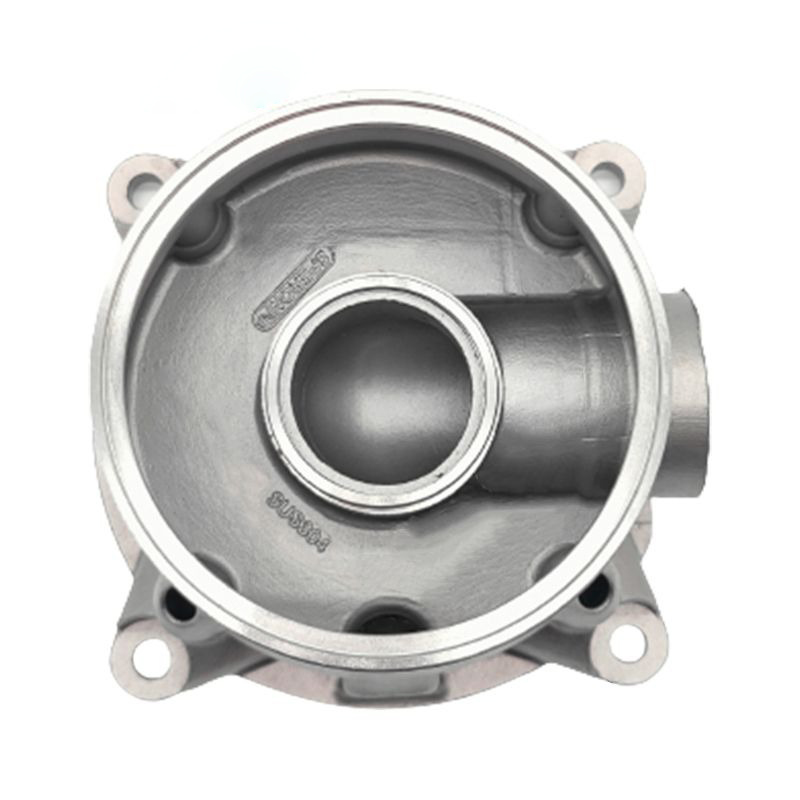

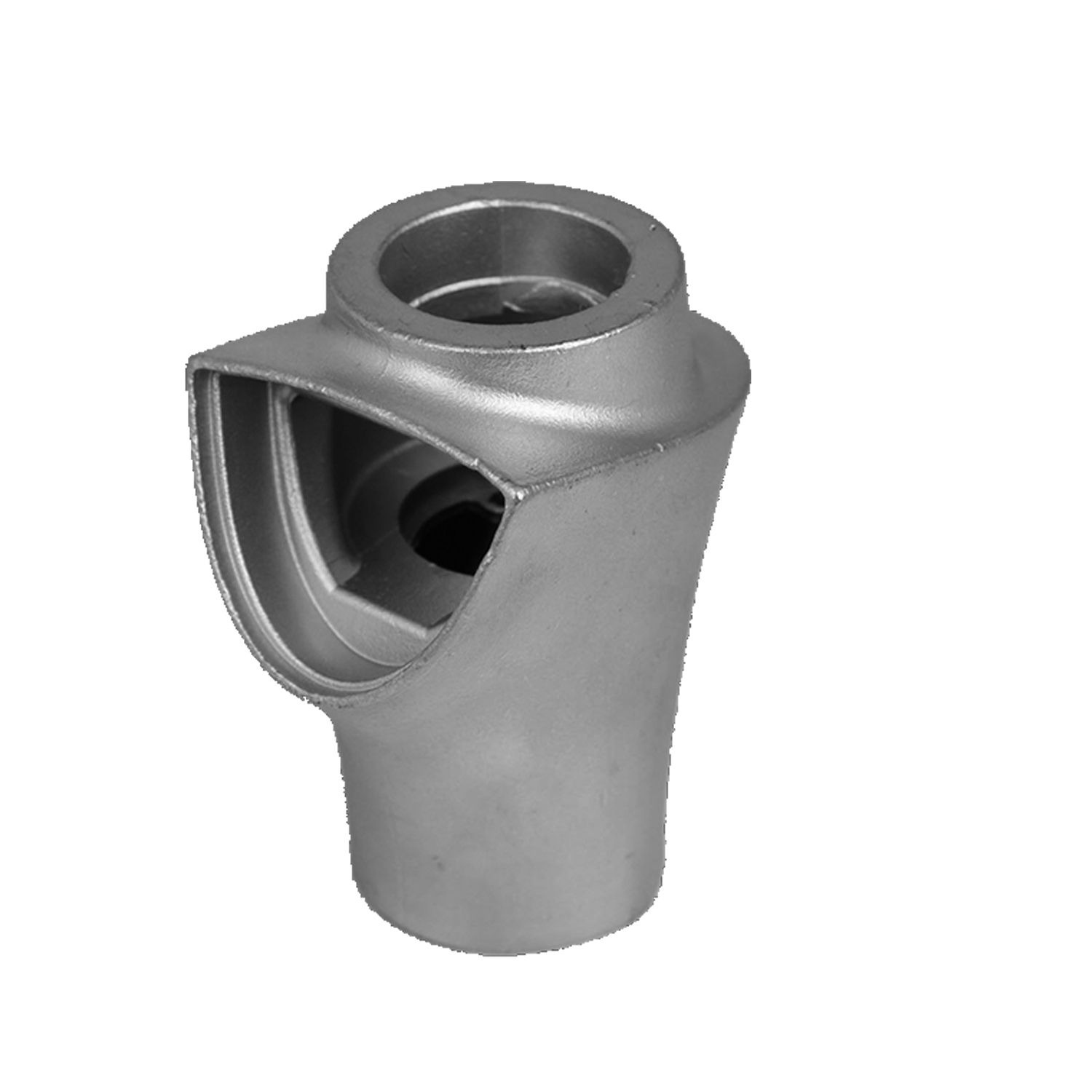

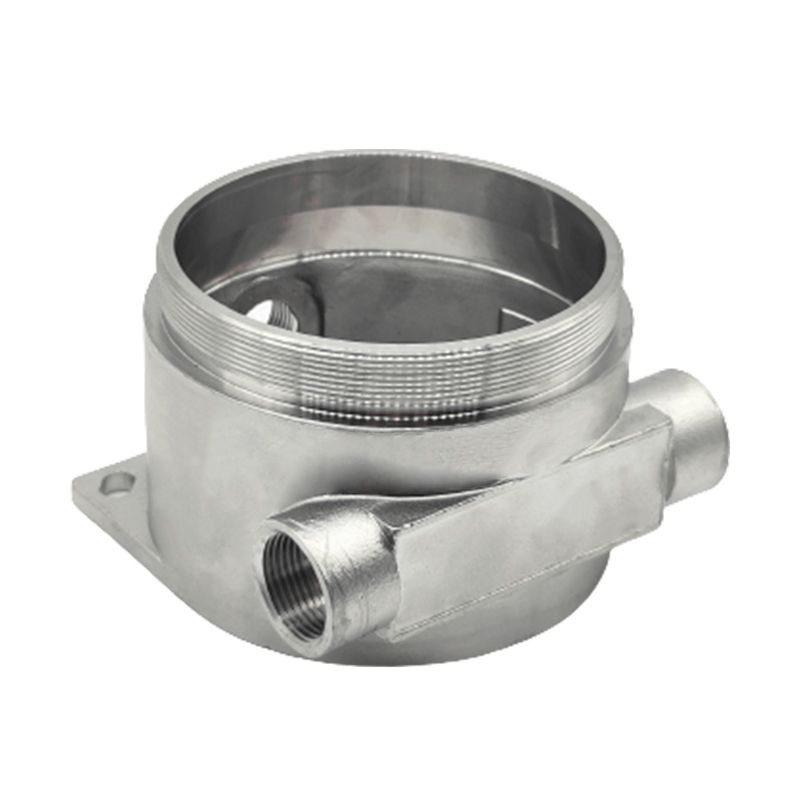

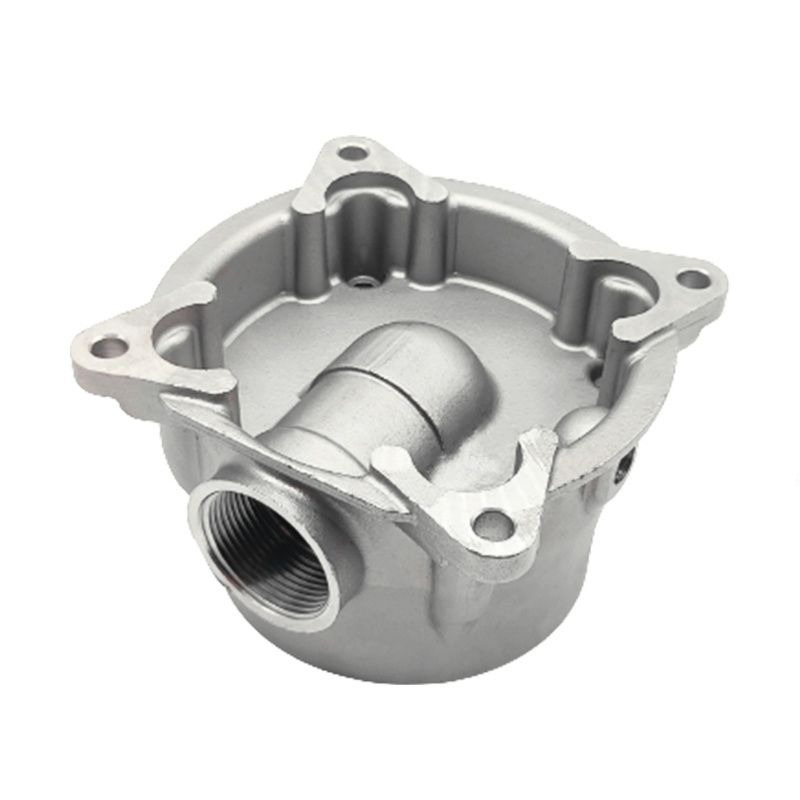

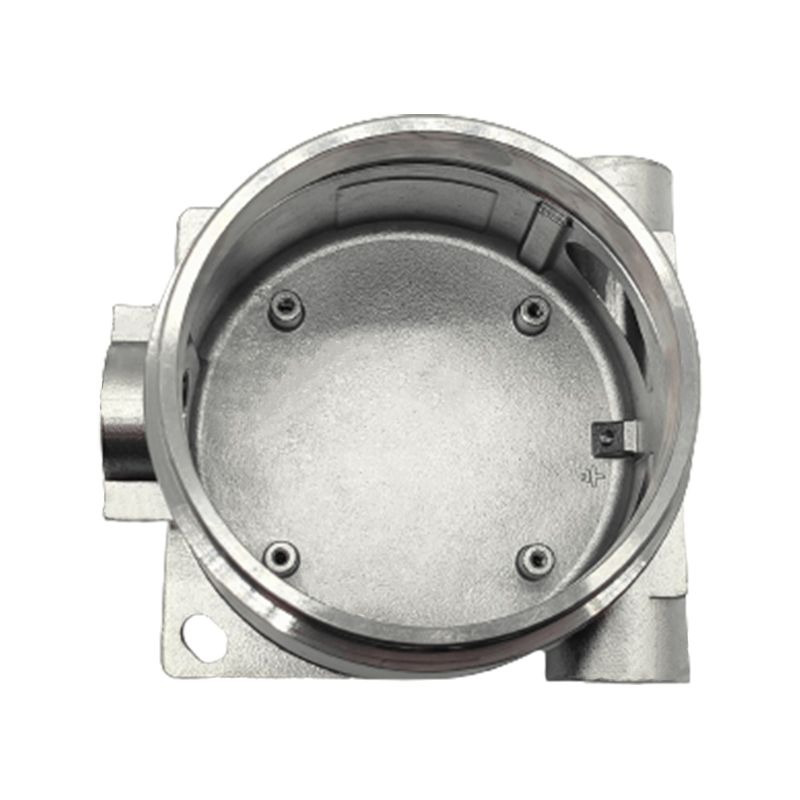

This stainless steel precision casting is made of 316L/2205 medical grade stainless steel (ASTM A743 standard), through silica sol investment casting (7-layer shell) to achieve 1.5mm ultra-thin wall complex structure molding (CT6 precision). The products are finished by five-axis CNC (tolerance ±0.02mm) and electrolytic polishing (Ra≤0.4μm), and key components such as surgical instruments (FDA approved) are inspected by industrial CT (20μm resolution).
Our advantage
1. Material system
Using 316L/2205 duplex steel (ASTM A743 standard), key properties:
316L: Molybdenum content of 2-3%, through the ISO 10993 biocompatibility test
2205: Yield strength ≥450MPa, chloride corrosion resistance ≥5000ppm
Provision of material traceability reports (EN 10204 3.1)
2. Ultra-precision molding capability
Investment casting: minimum wall thickness 1.5mm, minimum aperture φ1.2mm
CNC machining: dimensional accuracy ±0.02mm, surface roughness Ra≤0.8μm
3. Special industry certification
Medical: FDA 510(k)/CE MDR certification
Energy: ASME B16.34 Nuclear power standard
Ship: DNV-GL Classification Society certification
Detail data
Application | Hardware |
Material Type | Stainless steel |
Standard | CE, RoHS, ISO 9001:2000 |
Molding Technics | Gravity Casting |
Casting | Investment Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample
