Why choose us?
1. Precision casting system
Silica sol investment casting process (7-9 shell)
Vacuum induction melting (1600℃±20℃)
Intelligent temperature control system for shell roasting
Argon shielded casting technology
2. Special treatment process
Solution heat treatment (1050℃ water quenching)
Shot peening surface strengthening
Electrolytic polishing (optional)
Laser marking traceability system
3. Quality inspection system
100% X-ray Inspection (ASTM E505)
Coordinate measurement (accuracy ±0.02mm)
Air tightness test (0.3MPa)
Salt spray test (500 hours)
Material spectral analysis

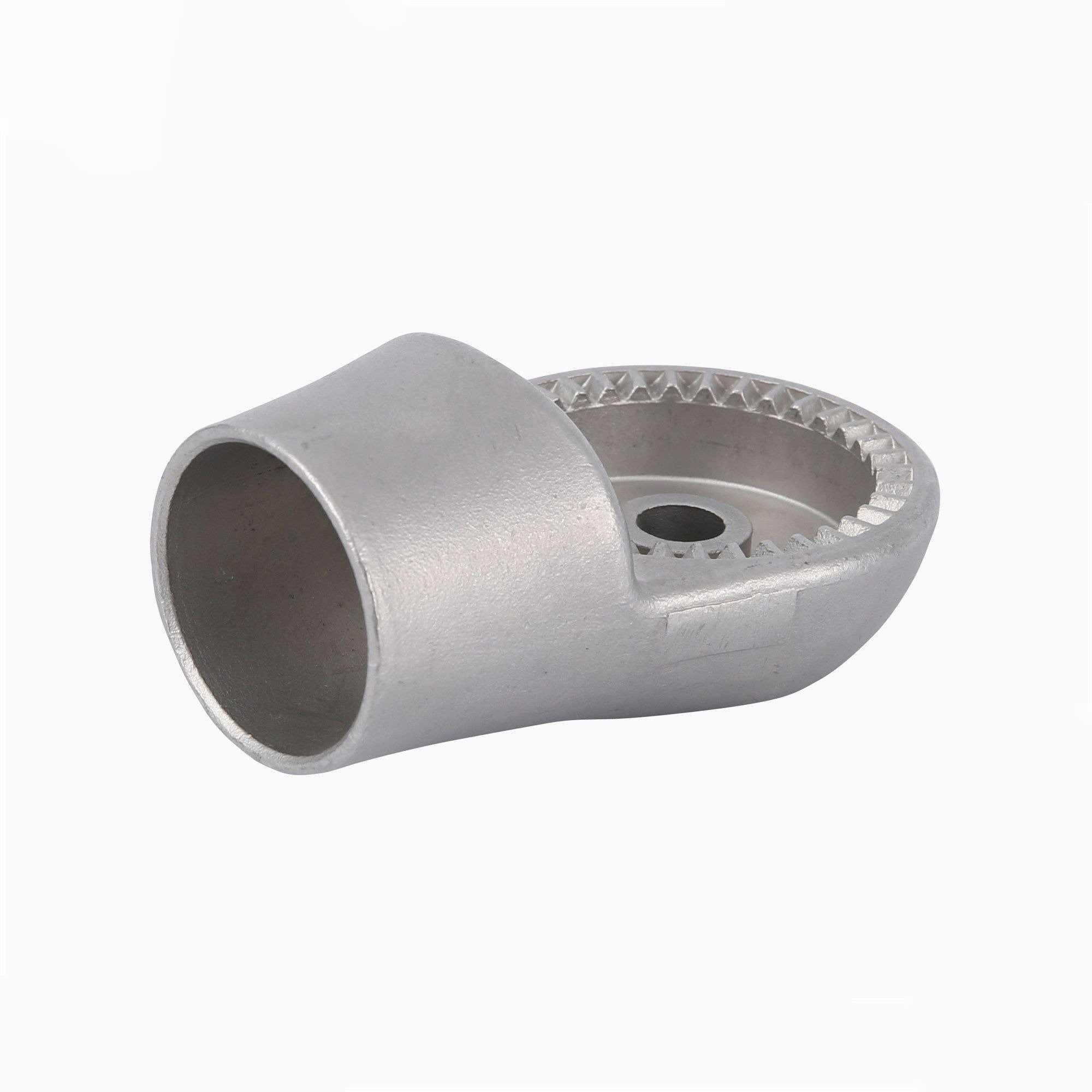

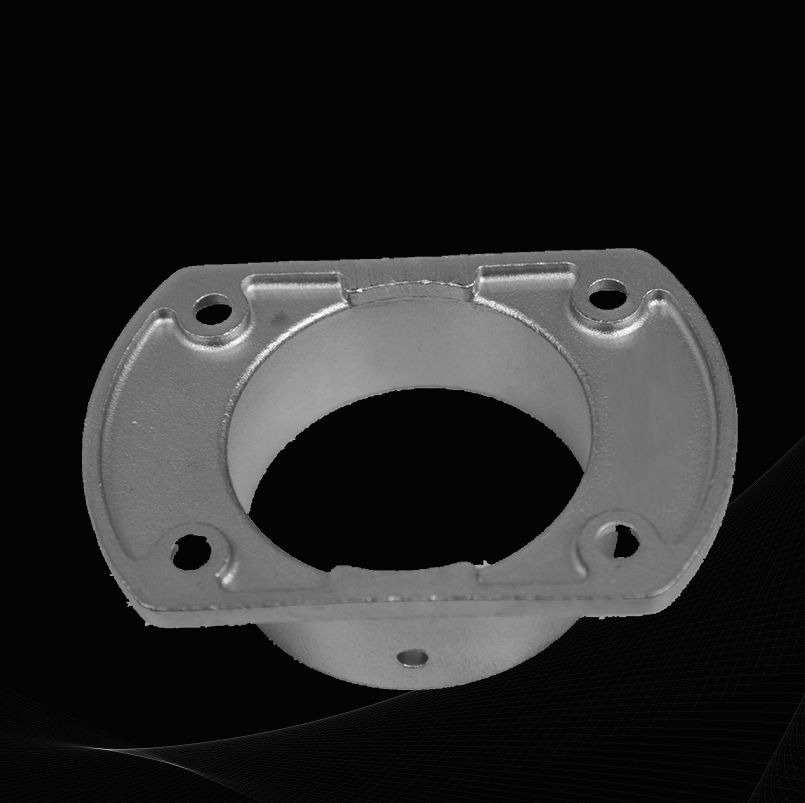

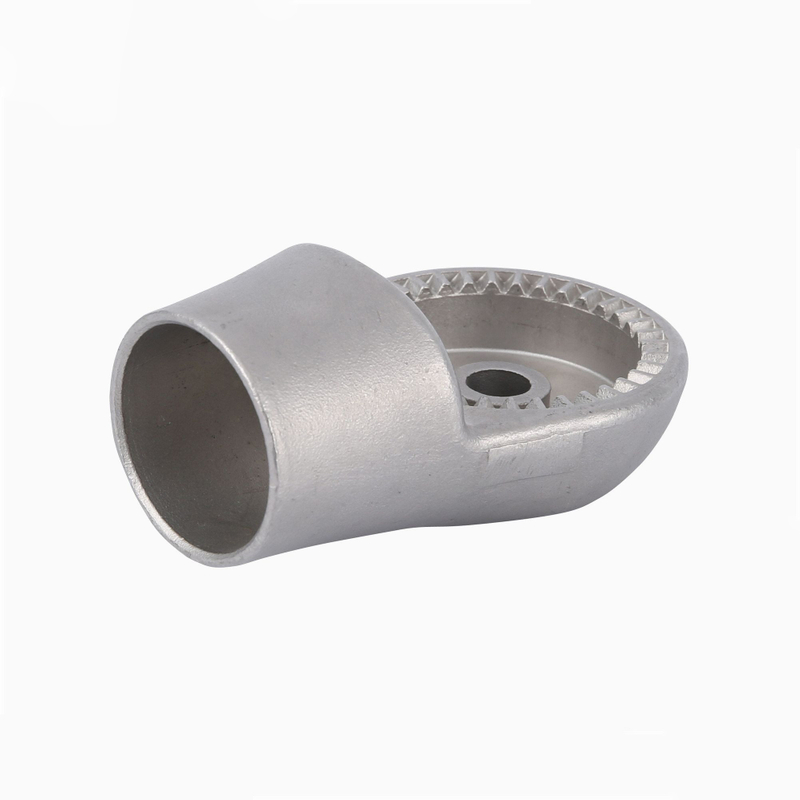

Product introduction
We specialize in 304/CF8m stainless steel, through silica sol investment casting process to manufacture high-precision engine components, dimensional accuracy up to CT5 (ISO 8062), the minimum wall thickness of 1.2mm, the surface can be polished to Ra0.8μm. The product has been tested by X-ray flaw detection and salt spray test (500 hours), with tensile strength ≥515MPa and temperature resistance up to 800℃.
Our advantage
1. High quality material system
Available in 304 stainless steel (ASTM A743 CF8m) and special alloy steel
Material characteristics: High temperature resistance to 800℃, excellent corrosion resistance
Mechanical properties: Tensile strength ≥515MPa, elongation ≥30%
TS16949 material certification in automotive industry
2. Precision manufacturing parameters
Dimensional accuracy CT5 (ISO 8062 standard)
Minimum wall thickness 1.2mm
Surface roughness Ra3.2μm (polished to Ra0.8μm)
Single weight range: 50g-15kg

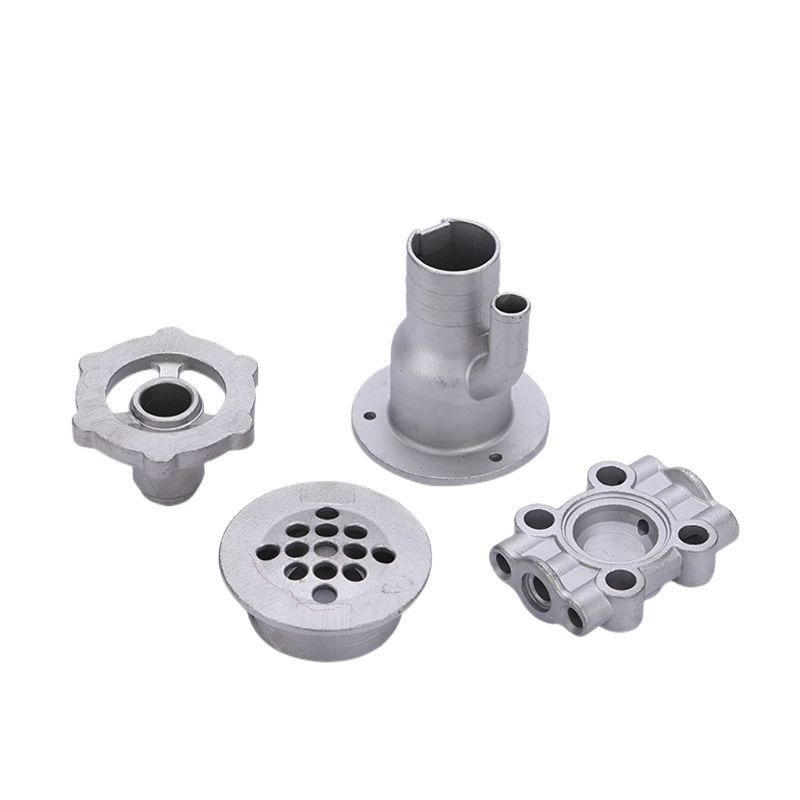

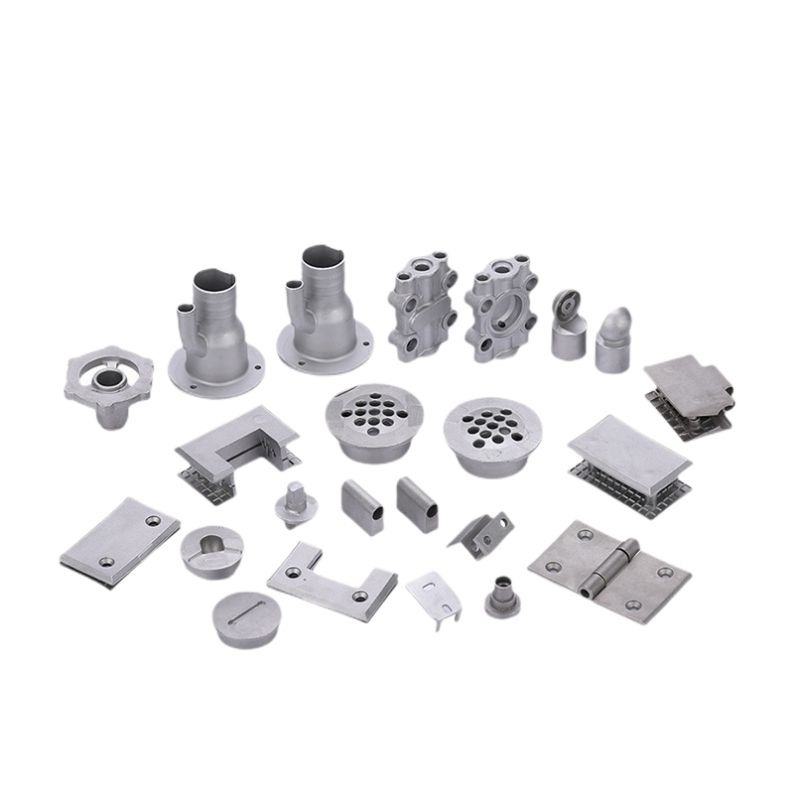

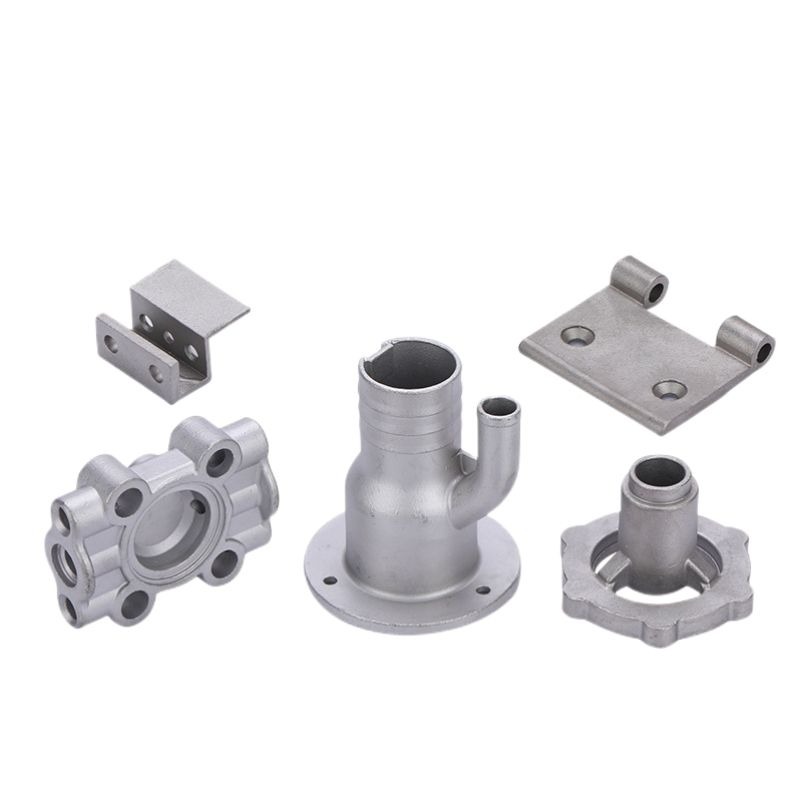

3. Professional application field
√ Automobile engine: turbine housing, sensor seat
√ Motorcycle parts: clutch housing, support
√ Industrial motors: end caps, connectors
√ Hydraulic system: valve body, pump casing
Detail data
Application | Machinery Parts |
Material Type | Stainless steel |
Standard | CE, RoHS, ISO 9001:2000, ISO 9001:2008 |
Kind | Stainless Steel Casting |
Molding Technics | Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample
