Hand Wheel

Why choose us?

1. Precision investment casting

Silica sol + zirconium sand 9-layer composite shell, type shell temperature resistance 1600℃

Vacuum assisted casting, casting density ≥99.5%

2. Digital finishing

Five axis linkage machining center: blade edge Angle tolerance ±0.1°

CNC grinding machine: flatness ≤0.02mm/100mm

3. Special surface treatment

Electrolytic polishing: Remove the surface 20-50μm, passivation chromium content ≥18%

Micro arc oxidation (optional) : ceramic layer hardness HV≥1000

4. Intelligent detection system

3D Blue Light scanning: Full size comparison (accuracy ±0.01mm)

Cleanliness test: Residual particles ≤0.1mg/cm² (ISO 16232)

Dynamic balance test: speed 3000rpm, vibration value ≤0.05mm

Product introduction

This food-grade stainless steel meat grinder component is made of 304/316L stainless steel (ASTM A743 standard), and is molded with a 0.8mm ultra-thin blade and complex runner (Ra≤1.6μm as cast) through a 9-layer silica sol precision investment casting process. After vacuum casting (density ≥99.5%) and five-axis finishing (cutting edge Angle ±0.1°), combined with electrolytic polishing (Ra≤0.4μm) and laser quenching (HRC52-55) and other strengthening processes, the product has passed X-ray flaw detection (0.3mm detection accuracy) and 3000rpm dynamic balance test. Perfectly meet the needs of 100,000 uses of commercial meat grinder.

Our advantage

1. Food grade stainless steel

Made of 304/316L stainless steel (ASTM A743 standard), FDA 21 CFR 177.1520 food contact certification

Corrosion resistance: Salt spray test ≥720 hours (ASTM B117), hardness HB150-200

2. Precision structure health design

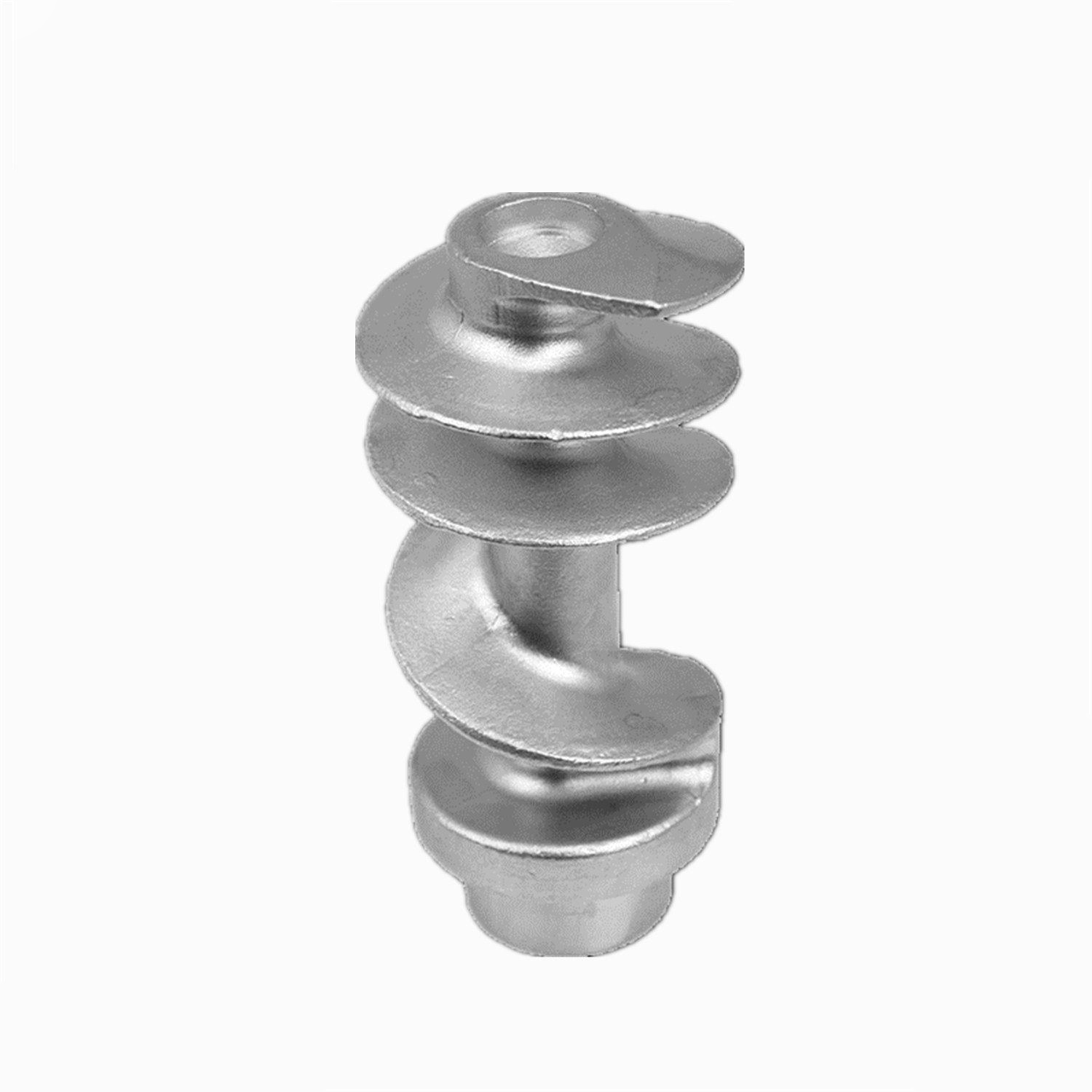

It can cast 0.8mm thin-walled blade, spiral feeder and other complex structures

Surface finish Ra≤1.6μm (as cast), electrolytic polishing Ra≤0.4μm

Streamlined design without dead corners, in line with HACCP food safety standards

3. Wear-resistant strengthening characteristics

Local laser hardening of the cutting edge of the blade, hardness HRC52-55

Key friction surface ion nitriding, wear resistance increased by 300%

4. Strict quality certification

100% X-ray inspection (ASTM E155, detection of Φ0.3mm defects)

Provide material spectrum report (SGS certification)

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample
