Why choose us?
1. Precision stamping
200T precision punching machine: pin head tolerance ±0.05mm
Multi-station progressive die: daily capacity of 5000-8000 pieces
2. Special heat treatment
Vacuum quenching (1050℃) : hardness HRC38-42
Low temperature ion nitriding: surface hardness HV≥900, wear resistance increased by 5 times
3. Intelligent assembly process
Robot automatic assembly: spring precompression force deviation ≤3%
Laser marking: permanent anti-counterfeiting mark (depth 0.1mm)
4. Strict testing system
Destructive test: axial load ≥8000N does not break
Salt spray test: 1000 hours without red rust
Fatigue test: Normal function after 100,000 cycles
Product introduction

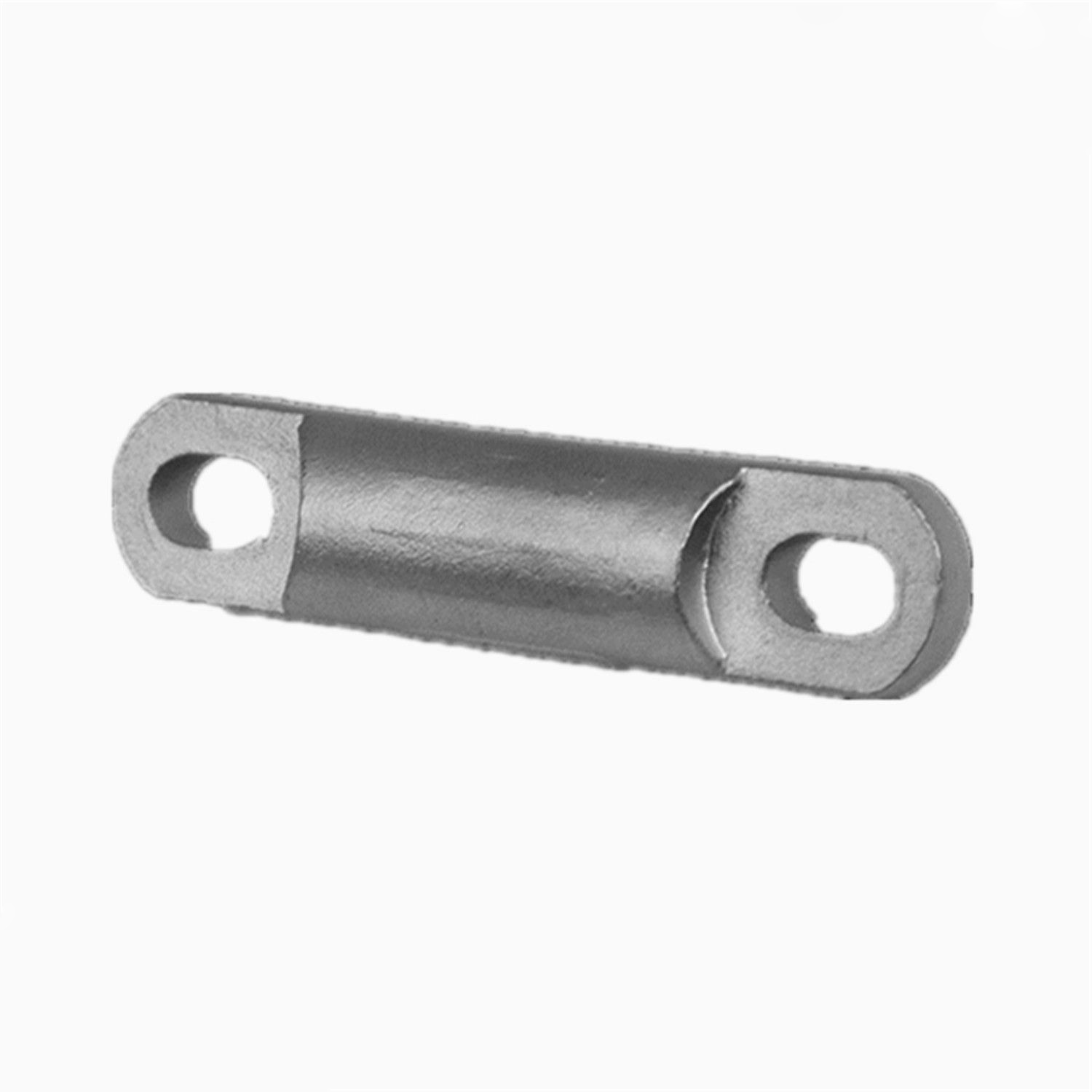

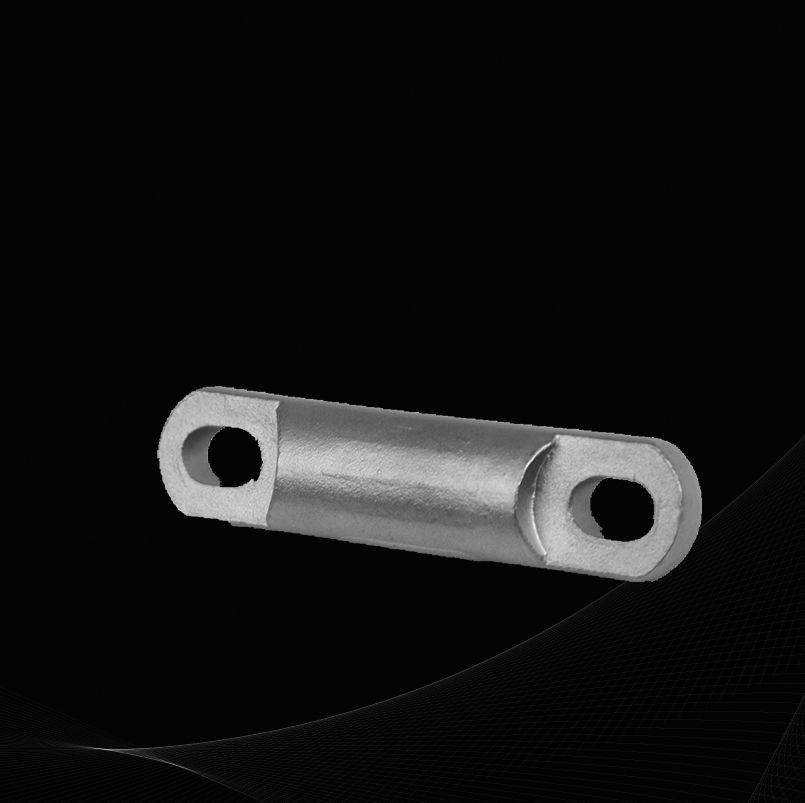

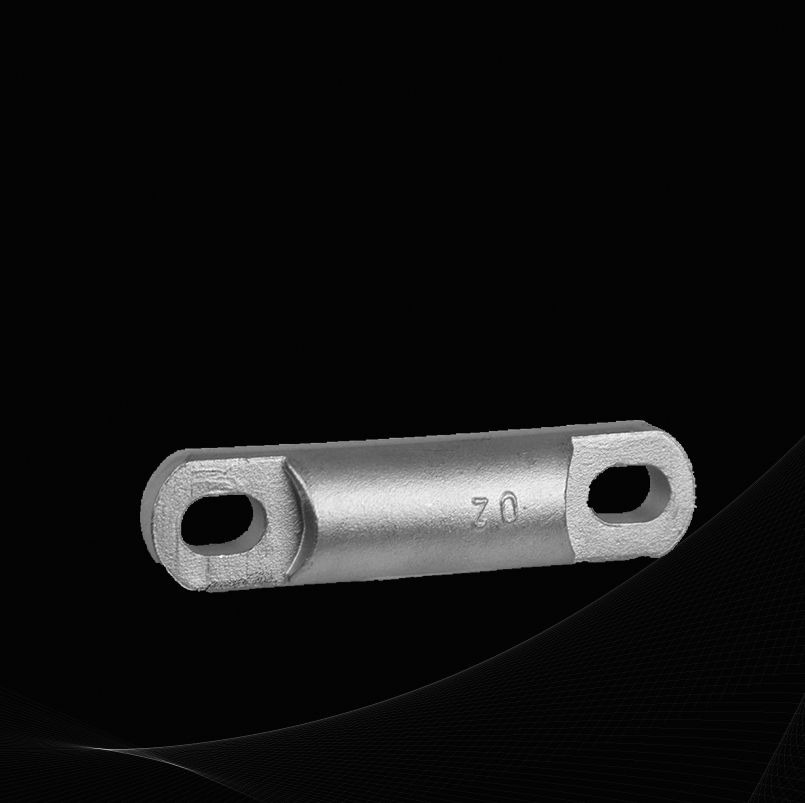

This heavy duty stainless steel door lock latch is made of 304/316 military grade stainless steel (salt spray resistance ≥1000 hours), by 200T precision stamping (tolerance ±0.05mm) and vacuum quenching process (HRC38-42), with 5,000 N shear resistance and 100,000 times of insertion and removal life. The product adopts 45° anti-skid bevel design and double spring structure. It has passed 1-hour fire resistance test (EN 1634-1) and 8000N destructive test. It is suitable for high security places such as vaults and data centers, and supports PVD black plating and other surface treatment.
Our advantage
1. Military-grade material guarantee
304/316 stainless steel (GB/T 1220 standard), 316 molybdenum 2-3%, salt spray corrosion resistance ≥1000 hours (ASTM B117)
Mechanical properties: 304 tensile strength ≥515MPa, 316 tensile strength ≥620MPa
2. Super structural design
Bolt diameter Ø12-30mm (optional), shear force ≥5000N
Double spring structure, service life ≥ 100,000 insertion and removal tests
3. Security protection features
Anti-skid design: latch Angle 45±1°, anti-violent damage
Fire certification: 1 hour fire test (EN 1634-1)
4. Multi-scenario adaptation
Applicable door thickness 35-60mm, support heaven and earth rod linkage system
Surface treatment optional:
Wire-drawing (anti-fingerprint)
PVD black plating (Wear Class 4)
Detail data
Application | Machinery Parts |
Material Type | Stainless steel |
Standard | CE, RoHS, ISO 9001:2000, ISO 9001:2008 |
Kind | Stainless Steel Casting |
Molding Technics | Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
