Why choose us?
1. Silica sol precision casting
Nano silica sol shell (11 layers)
Medical grade wax molding system
Vacuum argon shielded casting
Precision temperature control husking technology
2. Special treatment process
Vacuum heat treatment (hardness control)
Multi-axis CNC precision grinding
Electrolytic polishing (Ra≤0.4μm)
Laser micromarking
Product introduction

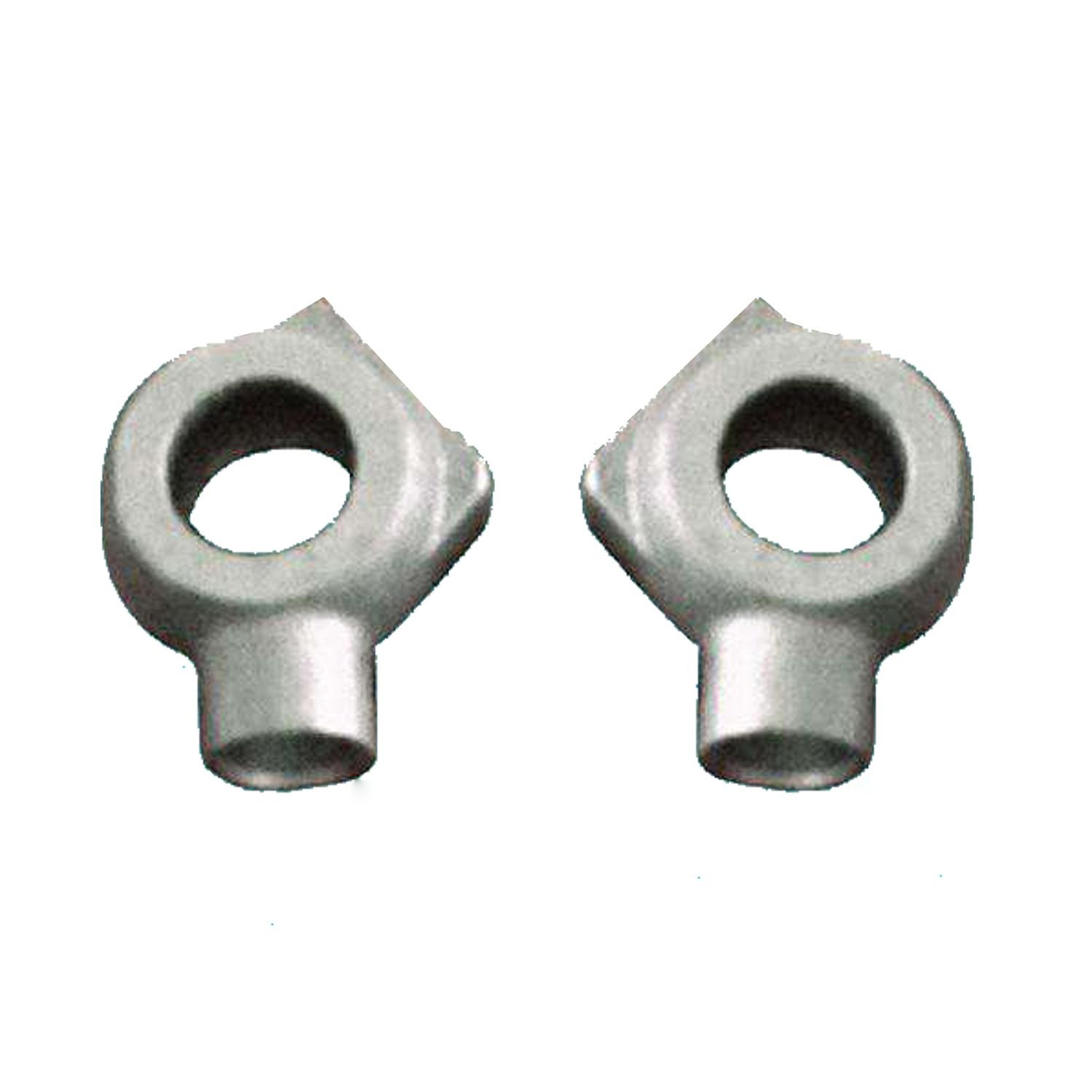

We are made of 420/440C stainless steel by 11 layers of silica sol precision casting process, ensuring an ultra-high accuracy of ±0.05mm and a mirror finish of Ra0.4μm. The hardness of the product reaches HRC52-56 after vacuum heat treatment, and it has passed ISO 13485 and FDA certification, supporting 134℃ high temperature sterilization. Equipped with optical inspection and bite force testing (50N±5N), we provide CE/FDA compliant high quality instruments to dental clinics worldwide.
Our advantage
1. Material guarantee
420/440C medical stainless steel (ISO 7153-1 standard)
Special addition of molybdenum element (improve corrosion resistance)
Passed the ISO 13485 medical device quality management system certification
Meets FDA 21 CFR 880.5570 standard for dental devices
2. Precision manufacturing parameters
Dimensional accuracy: ±0.05mm (key bite part)
Surface roughness: Ra0.4μm (mirror finish)
Hardness: HRC 52-56 (vacuum heat treatment)
Weight range: 80-300g
3. Professional performance indicators
√ Corrosion resistance: Passed 168-hour salt spray test
√ Biocompatibility: Passed cytotoxicity tests (ISO 10993-5)
√ Service life: ≥10,000 opening and closing tests
√ Sterilization performance: Support 134℃ high temperature autoclave sterilization
Detail data
Application | All Industries |
Material Type | Stainless steel |
Standard | CE, RoHS, ISO 9001:2000 |
Molding Technics | Gravity Casting |
Casting | Investment Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample
