Why choose us?
1. Precision lost wax casting process
Using silica sol precision shell technology (7-9 layers)
Medium temperature wax molding system (shrinkage < 0.3%)
Vacuum assisted pouring process
Argon shielded melting (1600℃)
2. Improve the post-treatment process
Vibration grinding deburring
Electrolytic polishing/mechanical polishing is optional
Pickling passivation treatment
100% Penetration Testing (PT)
3. Strict quality control system
Raw material spectral analysis
Process size three coordinate detection
Final X-ray detection
Mechanical properties testing (tensile, hardness, etc.)
Complete material certificate provided
Product introduction

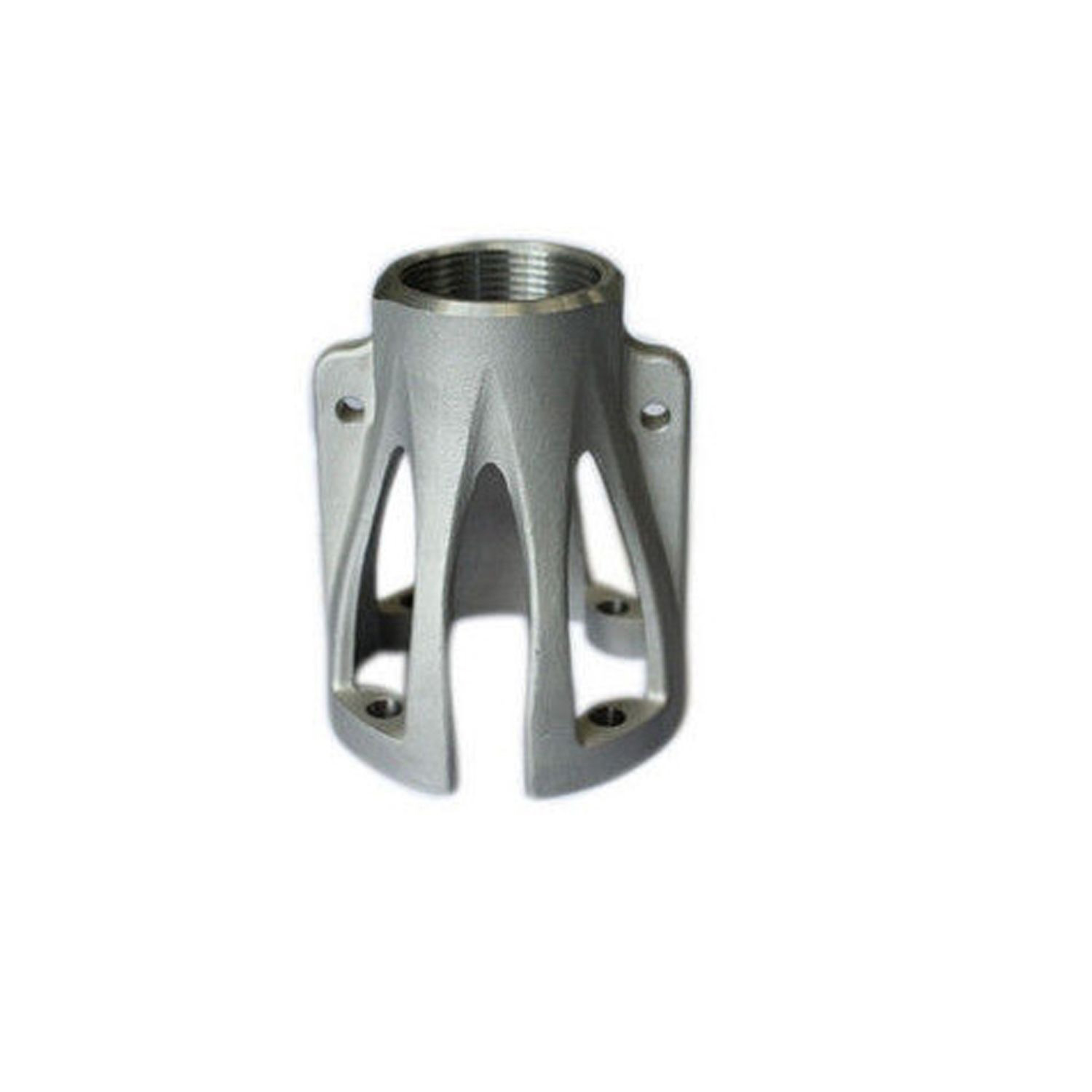

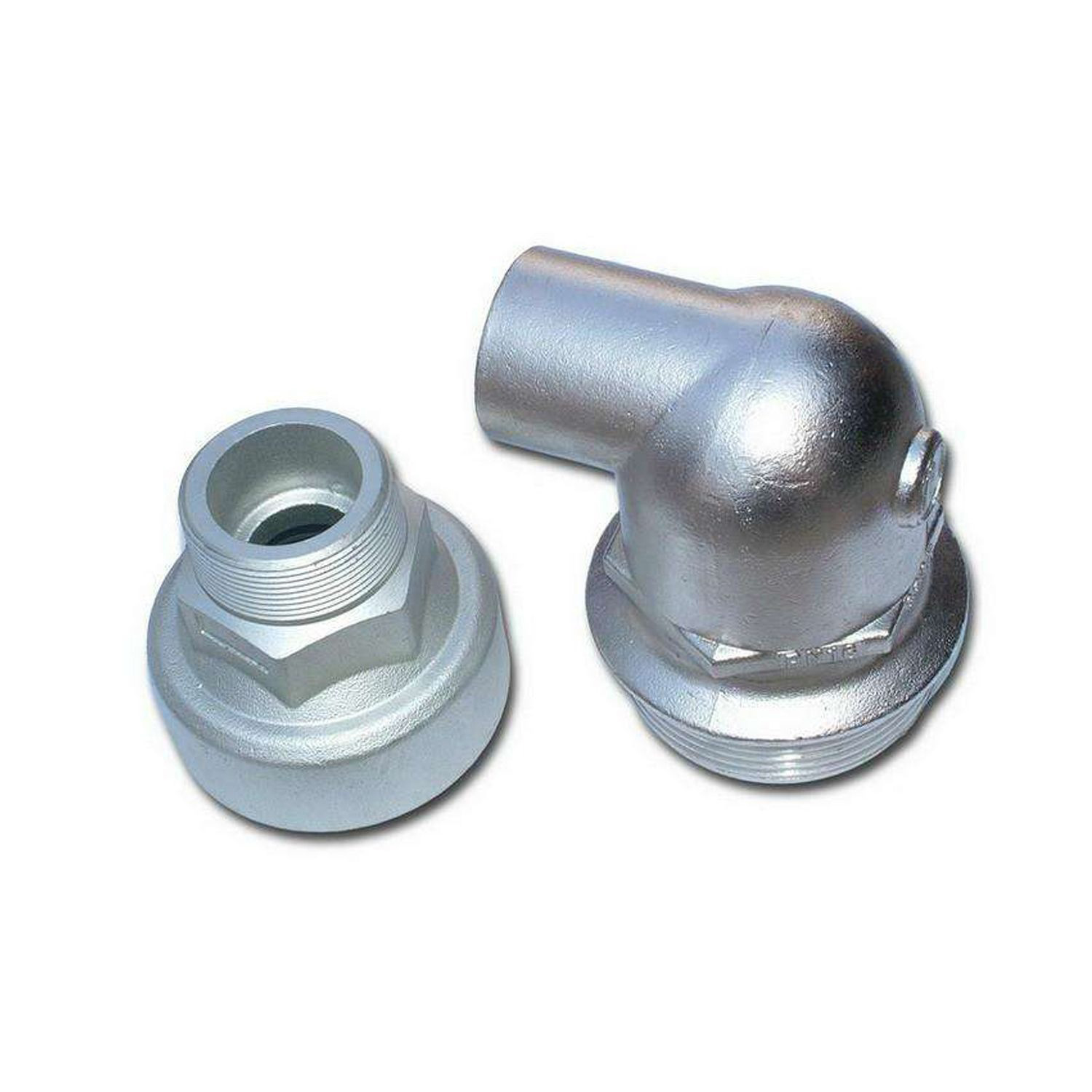

We provide 304/316/316L precision waxless casting service for stainless steel. We use silica sol precision shell making and vacuum assisted casting process to ensure that the products reach CT4-6 dimensional accuracy and Ra3.2μm surface finish. The castings have a minimum wall thickness of 0.8mm, a weight range of 10g-50kg, and are subjected to argon shielded melting and rigorous quality testing (including spectral analysis, coordinate measurement and X-ray flaw detection). Products are widely used in food processing, chemical equipment, medical equipment and other fields, support 3D drawing customization and rapid proofing (5-7 working days).
Our advantage
1. Quality material selection
Available in 304/316/316L stainless steel options
Certified to ASTM A743/A744 standard
316L ultra-low carbon content ≤0.03%, minimize intergranular corrosion
Passed the third-party SGS material composition test
2. Excellent product features
Dimensional accuracy up to CT4-6 (ISO 8062 standard)
Minimum wall thickness up to 0.8mm
Surface finish Ra3.2μm (polished to Ra0.4μm)
Product weight range: 10g-50kg
3. Professional application field
√ Food processing equipment: conveying system, mixing parts
√ Chemical equipment: valves, pumps, pipe fittings
√ Medical equipment: surgical instrument base
√ Marine engineering: seawater corrosion resistant components
Detail data
Application | Hardware |
Material Type | Stainless steel |
Standard | ISO 9001 2015 |
Molding Technics | Gravity Casting |
Casting | Investment Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
