Why choose us?
1. High precision stainless steel castings
304/316L stainless steel material, excellent corrosion resistance (through 96 hours of salt spray test), dimensional accuracy up to CT6 (ISO 8062 standard), minimum wall thickness up to 2mm, surface finish Ra≤3.2μm, reduce machining requirements
2. Professional pump valve shell
Designed for all kinds of pumps, valves design structural optimization program, pressure capacity up to PN25 (2.5MPa), smooth flow channel design, small hydraulic loss
Product introduction

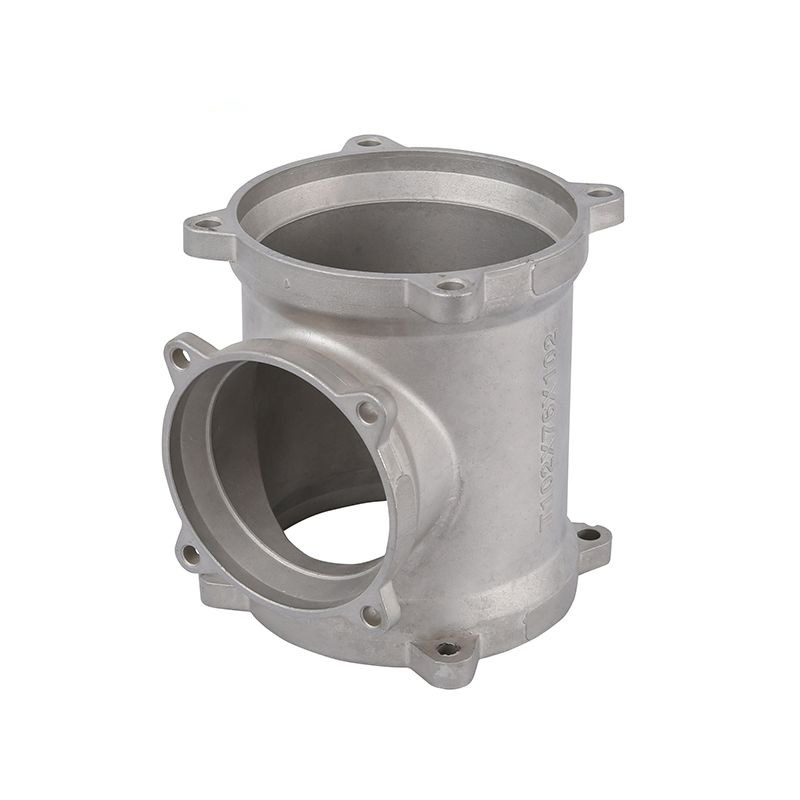

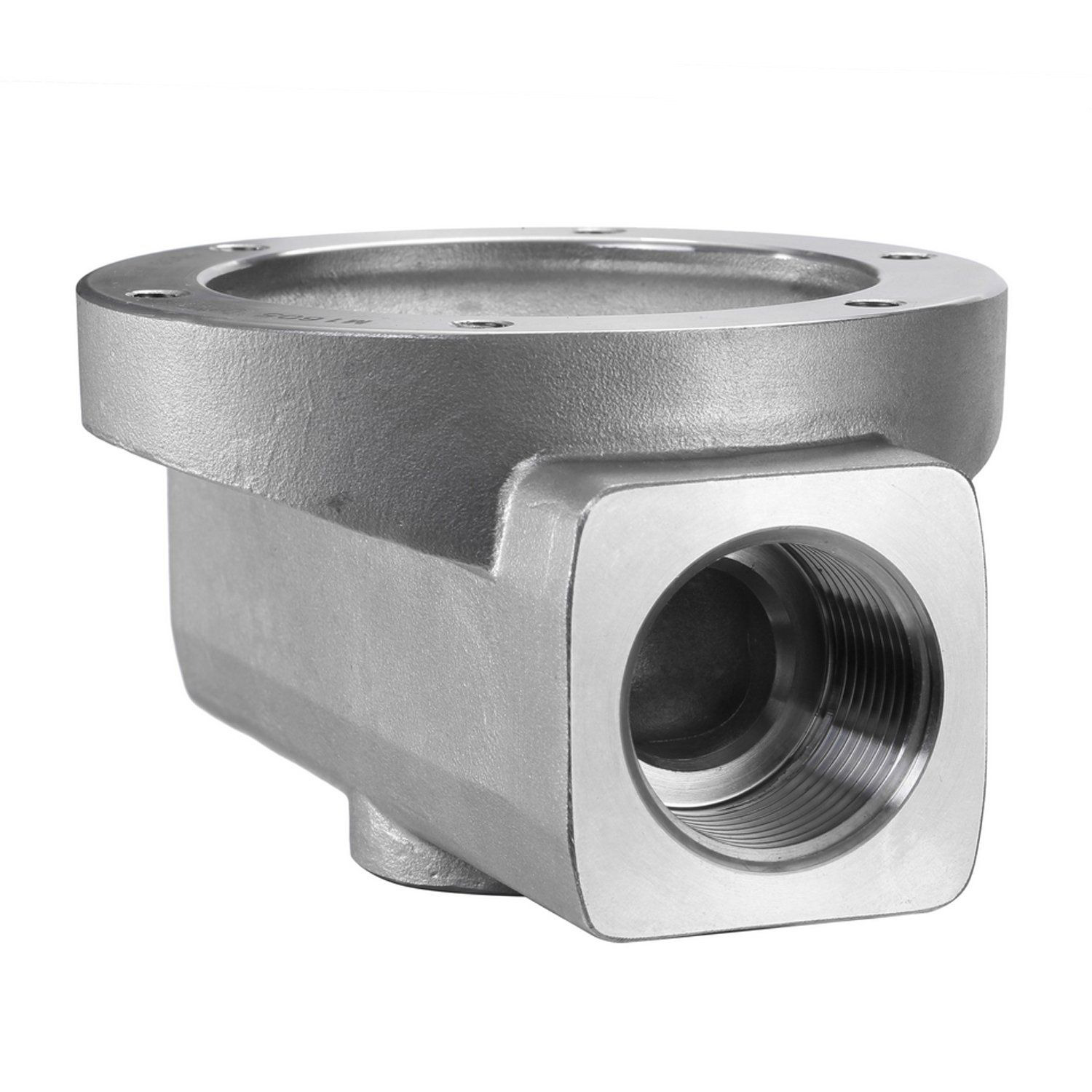

Stainless steel pump shell castings are made of 304/316L stainless steel and manufactured by silica sol investment precision casting process, with excellent corrosion resistance (through 96-hour salt spray test) and 2.5MPa high pressure performance, and are widely used in chemical pump bodies, seawater desalination equipment and food and medical machinery and other harsh conditions. The product adopts vacuum assisted casting process to ensure the density of more than 99%, can be accurately formed 2mm thin-wall complex flow channel structure (CT6 dimensional accuracy), after 1100℃ solution treatment and electrolytic polishing surface finish Ra0.6μm, and through the X-ray flaw detection, 1.5 times water pressure test and spectral analysis of triple quality inspection system. High quality solutions for all types of fluid equipment with corrosion resistance, high pressure resistance and long life.
Our advantage
1. Precision casting process
Silica sol investment casting, mold shell temperature 1600℃, vacuum auxiliary casting, casting density ≥99%
2. Advanced post-processing
Electrolytic polishing (Ra up to 0.6μm), solid solution treatment (1100℃ water quenching)
3. Improve the testing system
X-ray inspection (ASTM E155 standard), hydraulic test (1.5x working pressure)
4. Material spectrum analysis
Typically used in chemical pumps, desalination equipment, food processing machinery and other fields, to meet the requirements of corrosion resistance and high pressure resistance under harsh conditions.
Detail data
Application | Hardware |
Material Type | Stainless steel |
Standard | ISO 9001 2015 |
Molding Technics | Lost Wax Casting |
Casting | Investment Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
