Why choose us?
1. Precision molding technology
CNC spiral blade cold rolling forming
Automatic TIG (Argon Arc Welding)
Solid shaft precision turning (±0.05mm)
CNC machining of flange connection parts
2. Special treatment process
Weld Penetration Testing (PT)
Integral stress relief heat treatment
Electrolytic surface polishing (optional)
Dynamic balance correction system
3. Quality inspection system
100% weld X-ray inspection
Coordinate measurement (pitch accuracy)
Hardness gradient test
Load test (1.2 times working load)
Metallographic structure analysis

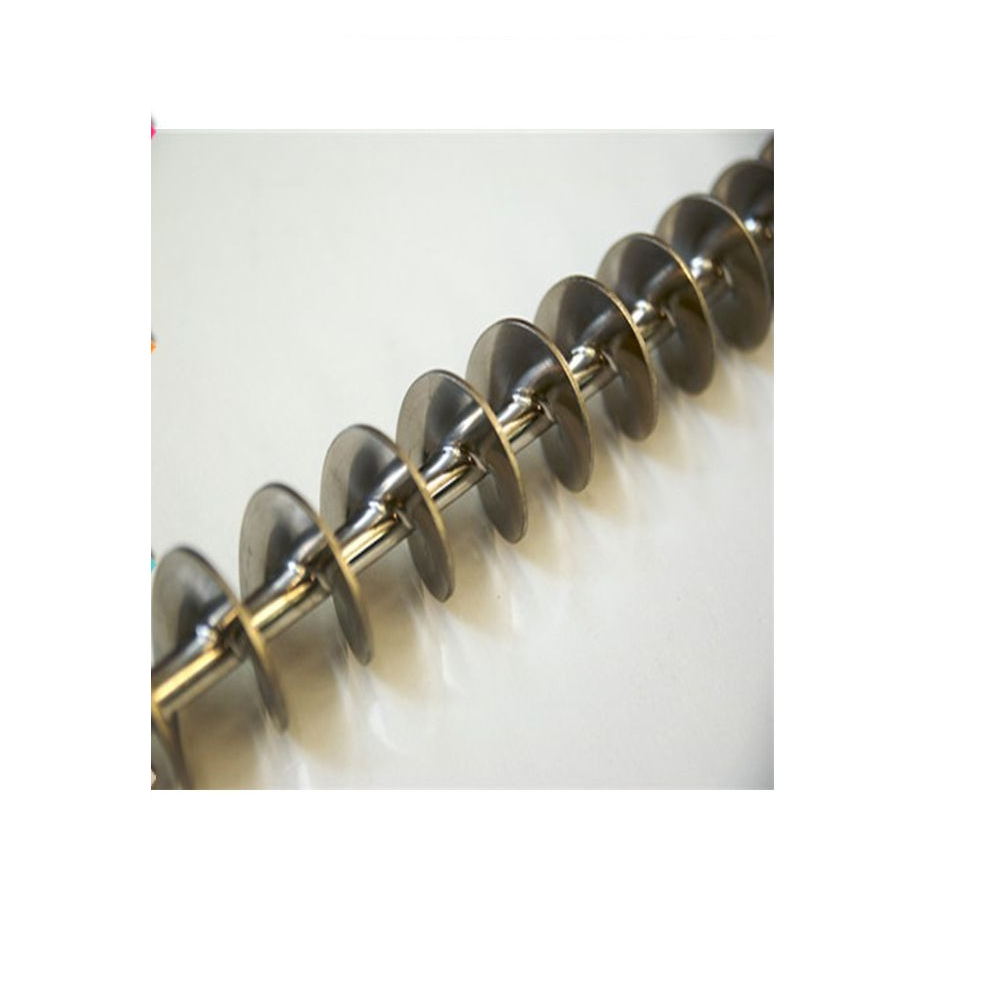

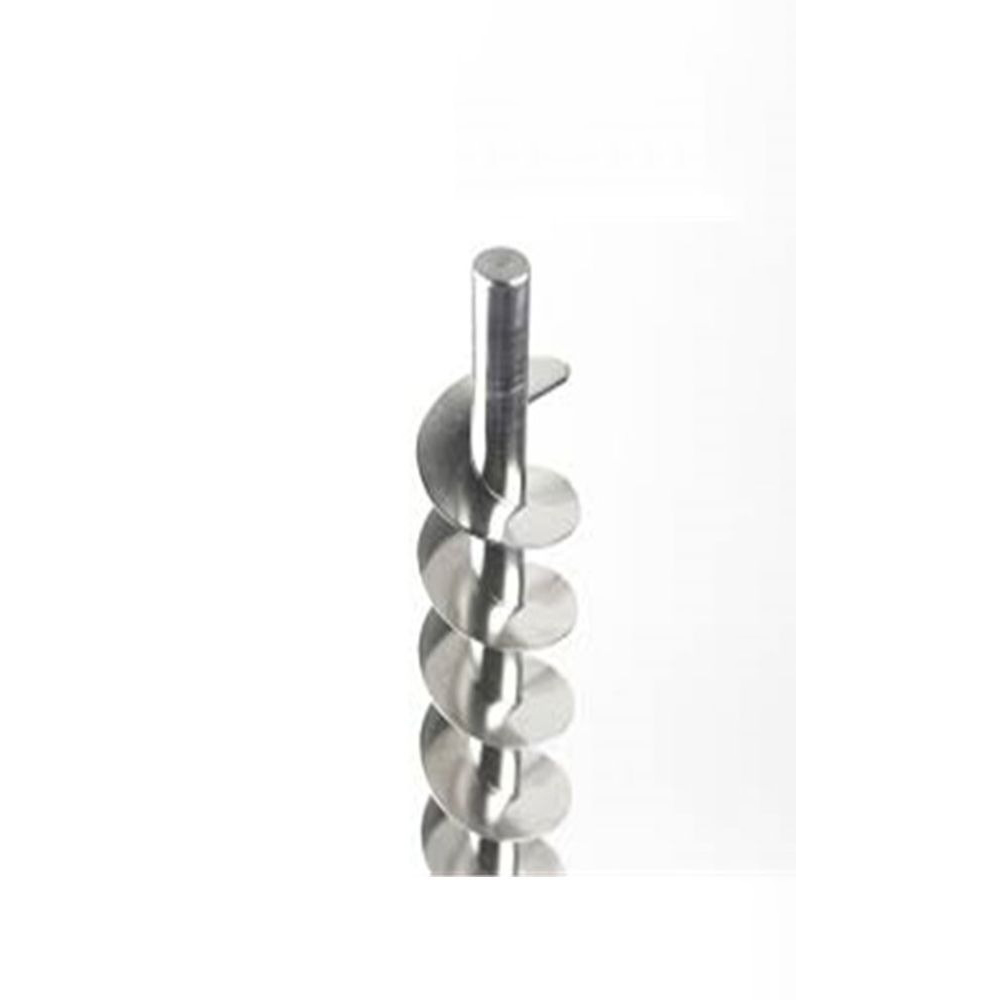

Product introduction
We use 304/316 stainless steel and 42CrMo alloy steel combination manufacturing, through CNC cold rolling forming and argon arc welding process, to ensure the blade thickness accuracy of ±0.2mm (2-12mm optional), shaft diameter machining accuracy of ±0.05mm (Φ20-200mm). After X-ray inspection and dynamic balance correction (G6.3 level), the surface is polished to Ra1.6μm, and the maximum throughput is 50m³/h. With a monthly production capacity of 10,000 meters and CE/ASME certification support, it provides high-precision and durable conveying system solutions for food, chemical and other industries.
Our advantage
1. Quality material selection
Available 304/316/316L stainless steel materials
Solid shaft material: 42CrMo alloy steel (optional)
Meets GB/T 1220-2007 standard
Corrosion resistance: 500-hour salt spray test
2. Precision manufacturing parameters
Blade thickness range: 2-12mm (±0.2mm)
Axle diameter: Φ20-200mm (can be customized)
Pitch accuracy: ±1mm/m
Surface treatment: mechanical polishing (Ra1.6μm) or sandblasting
3. Professional application features
√ Maximum throughput: 50m³/h
√ Applicable temperature: -20℃ to 400℃
√ Wear resistance: Blade edge can be hardened (HRC45-50)
√ Dynamic balance level: G6.3 (high-speed application)
Detail data
Application | Hardware |
Material Type | Stainless steel |
Standard | CE, RoHS, ISO 9001:2000 |
Molding Technics | Gravity Casting |
Casting | Investment Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
