Why choose us?

1. Precision casting process

Silica sol + zirconium sand composite shell (7 layers), the bending strength of the shell ≥8MPa

Argon-oxygen decarburization (AOD) refining: sulfur content ≤0.01%, oxygen content ≤30ppm

2. Intelligent post-processing

CNC gantry machining center: flange flatness ≤0.05mm/m

Automatic polishing line: Ra value increased from 3.2μm to 0.8μm (time ≤15min)

3. Special testing equipment

Phased array ultrasonic inspection (PAUT) : Detection of Φ0.5mm internal defects

Fluorescent penetration detection (PT) : 0.01mm surface crack found

Metallographic analysis system: δ ferrite content detection (316L requirements ≤5%)

4. Surface strengthening technology

Supersonic flame spraying (HVOF) : WC-Co coating hardness ≥1200HV

Electrolytic polishing: Chromium content of passivation layer ≥20%

Product introduction

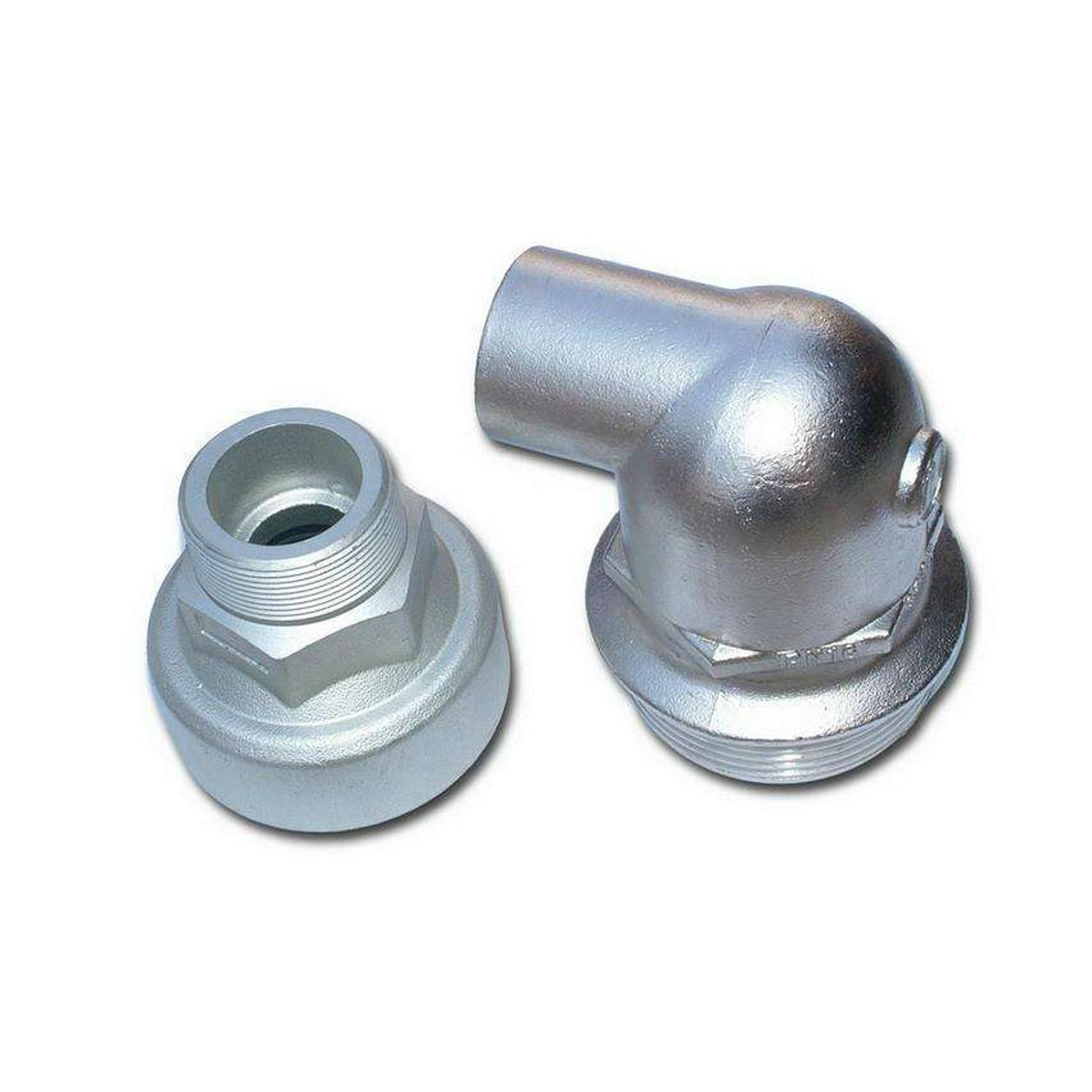

This American standard stainless steel casting strictly follows ASTM A743/A744 standard, using special stainless steel such as 316L/2205 (316L passed ASTM G48 intergranular corrosion test), through 7 layers of silica sol precision casting to achieve 2mm thin-wall complex structure molding (CT6 accuracy). Products through argon-oxygen decarburization refining (sulfur ≤0.01%) and CNC gantry processing (flatness ≤0.05mm/m), equipped with phased array ultrasound (Φ0.5mm defect detection) and fluorescent penetration detection (0.01mm crack identification), widely used in API standard valves (Class 1500).

Our advantage

1. High standard material system

ASTM A743/A744 standard stainless steel (304/316/ Duplex steel 2205)

Corrosion resistance:

316L: Inter-granular corrosion test by ASTM G48 A (50℃/72h)

2205: Chloride corrosion resistance ≥5000ppm (ASTM A923-C method)

2. Complex structure precision molding

The minimum wall thickness is 2mm and the maximum single weight is 500kg

Dimensional accuracy CT6 class (ASTM A703), surface roughness Ra≤3.2μm

Castable:

API standard Valve Body (ASME B16.34 Class 1500)

Sanitary pump housing (3-A Sanitary Standard)

3. Multi-industry certification guarantee

Petrochemical: API 6D valve certification

Food and Medicine: FDA 21 CFR 177.1520 Compliance Report

4. The whole process can be traced

Laser identification: individual traceability code for each product

Provide MTR report (including melting batch/heat treatment curve)

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample.
