Why choose us?
1. High quality material system
Provide ADC12, A380, A356 and other series aluminum alloy
Meet GB/T 15115-2009 national standard
Material tensile strength ≥310MPa
Surface anodizing treatment is optional
2. Precision manufacturing capability
Dimension accuracy up to CT6 level (GB/T 6414)
Minimum wall thickness 1.2mm
Surface roughness Ra3.2μm(machined to Ra1.6μm)
Single weight range: 20g-15kg
3. Industry application field
√ Auto parts: engine support, gearbox housing
√ Electronic appliances: radiators, housing components
√ Communication equipment: 5G base station shell
√ Industrial equipment: pump valve housing, mechanical parts

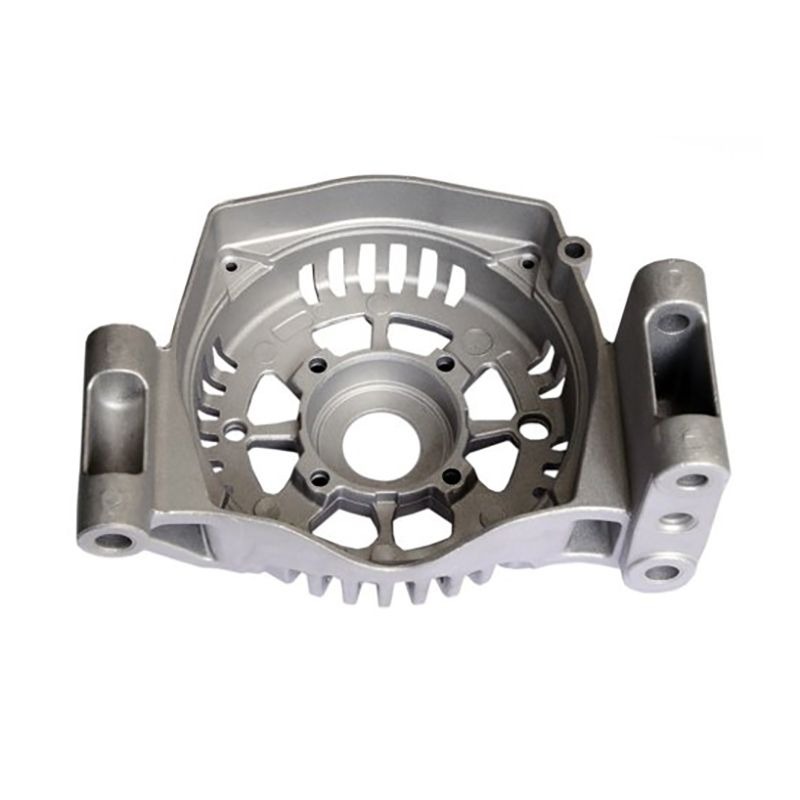

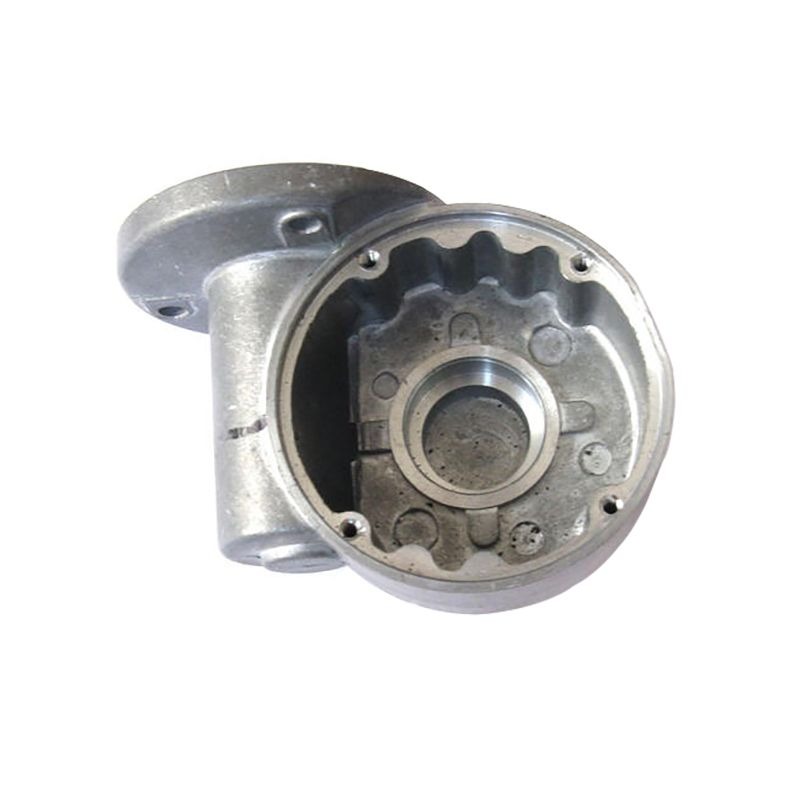

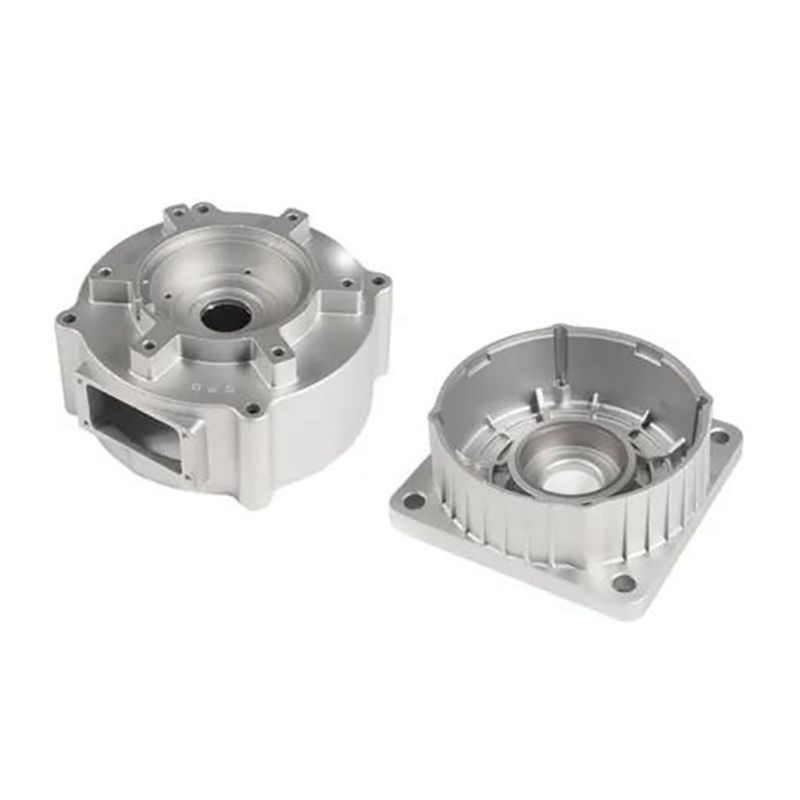

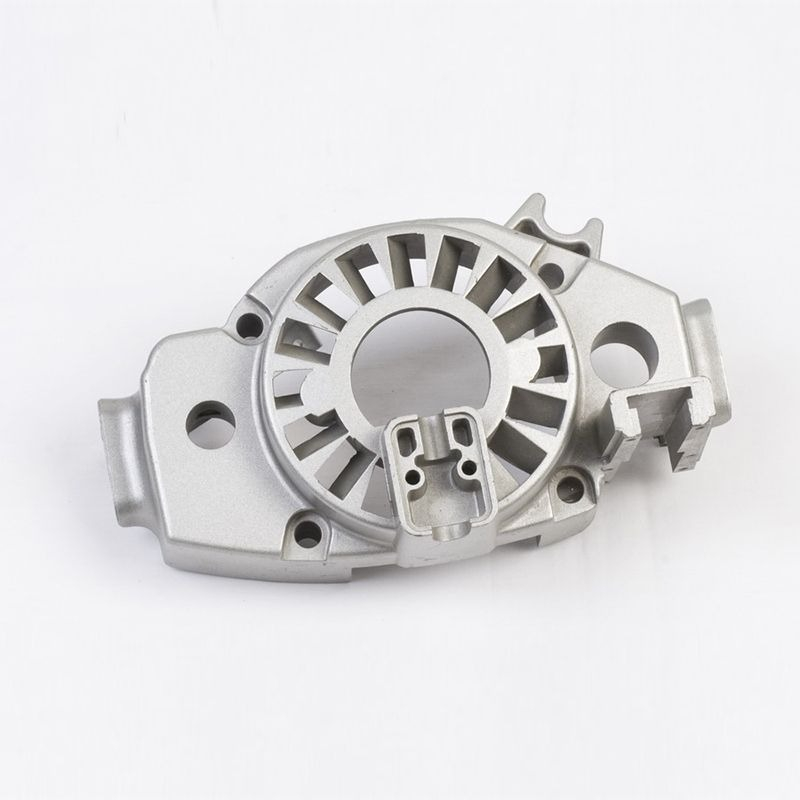

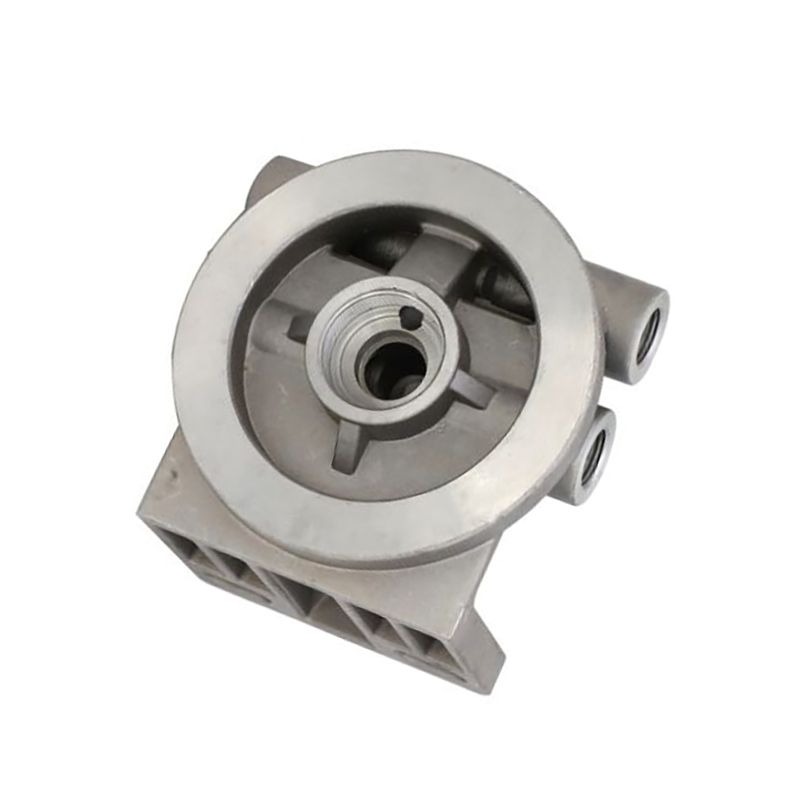

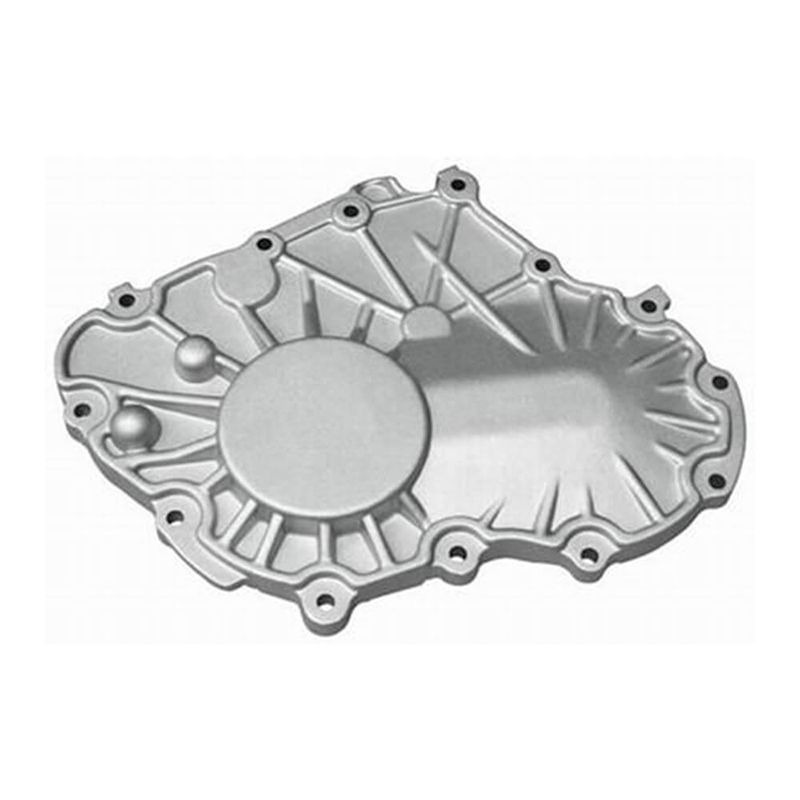

Product introduction
This vacuum aluminum alloy die-casting is made of A380/ADC12 high fluidity alloy (silicon content 9-12%), and 0.6mm ultra-thin wall complex structure is formed by 2500T ultra-vacuum die-casting machine (cavity vacuum ≤30mbar), resulting in density ≥99.8% (X-ray porosity ≤0.2%). The product is strengthened by hot isostatic pressing (600℃/100MPa) and nano coating (friction coefficient 0.08), the key dimensional accuracy is ±0.02mm, and it is widely used in high-end fields such as new energy battery tray (weight reduction 28kg) and 5G radiator.
Our advantage
1. High pressure die casting system
280T-1600T die-casting machine group
Vacuum assisted die casting technology
Die temperature intelligent control system
Real-time injection monitoring system
2. Post-treatment process
CNC precision machining center cluster
Vibration grinding deburring
Sandblasting/polishing finish
Anodizing/plating optional
3. Quality inspection system
CMM full size inspection
X-ray inspection Internal defect detection
Air tightness test (0.3MPa)
Salt spray test (500h)
Detail data
Application | Machinery Parts |
Material Type | Aluminum |
Standard | CE, RoHS, ISO 9001:2000 |
Surface Preparation | Electroplating |
Machining | Aluminum Die Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
