Why choose us?

1. Double material casting line

Independent melting system:

• Medium frequency electric furnace (carbon steel 1600℃)

• Argon furnace (stainless steel 1650℃)

Composite shell technology:

• Carbon steel: water glass sand type

• Stainless steel: silica sol shell

2. Special treatment technology

Carbon steel strengthening:

• Normalizing + tempering heat treatment

• QPQ surface hardening

Stainless steel optimization:

• Solution treatment (1050℃ water quenching)

• Pickling passivation

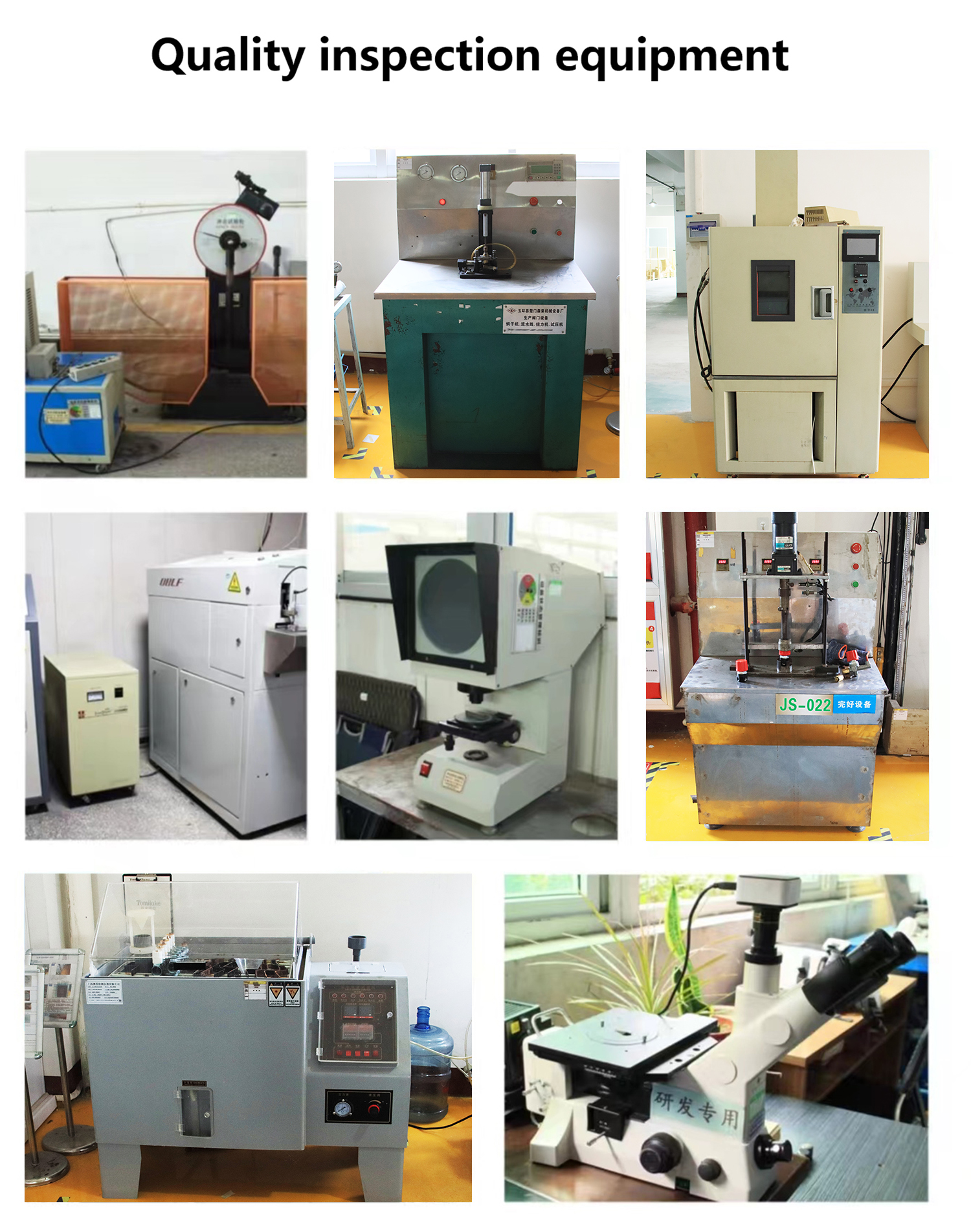

3. Double standard detection system

Carbon steel parts:

Magnetic particle inspection (ASTM E709)

• Hardness gradient test

Stainless steel parts:

• Penetration Testing (ASTM E165)

• Intergranular corrosion test

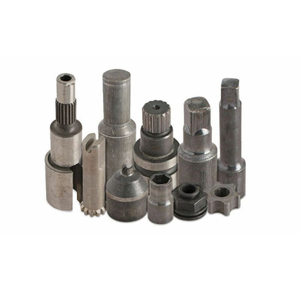

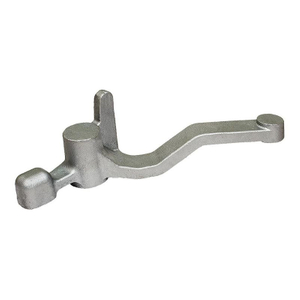

Product introduction

We offer double material investment casting services for carbon steel (ZG200-500) and 304/316 stainless steel, using the silica sol process to achieve CT4-6 class accuracy (±0.1mm) with a minimum wall thickness of 1.5mm. Products through X-ray inspection and heat treatment strengthening, stainless steel parts salt spray test up to 500 hours, covering hydraulic parts, food machinery and other fields, through the ISO9001/PED certification, support multi-material combination casting needs.

Our advantage

1. Material science configuration

Carbon steel series: ZG200-500 (GB/T 11352)

• Tensile strength 450-650MPa

• Low cost structural parts are preferred

Stainless Steel Series: 304/316 (ASTM A743)

• 316 Molybdenum content 2-3% to improve corrosion resistance

• Food/medical grade applications

2. Composite manufacturing parameters

Tolerance control:

• Carbon steel: CT6 grade (±0.3mm)

• Stainless steel: CT5 (±0.15mm)

Surface treatment:

• Carbon steel: sandblasted/galvanized (optional)

• Stainless steel: electrolytic polishing (Ra0.8μm)

3. Mixed application scenarios

√ Hydraulic system: stainless steel body + carbon steel bracket

√ Food machinery: 316 contact surface + carbon steel frame

√ Chemical equipment: corrosion resistant composite structural parts

√ Construction machinery: wear-resistant - load-bearing components

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample
