Why choose us?
1. Precision investment casting
Silica sol + zirconium sand 9-layer shell, type shell temperature resistance 1600℃
Vacuum directional solidification: the shrinkage rate is reduced by 70%
2. Special post-treatment
Hot isostatic pressing (HIP) : 1150℃/100MPa, resulting in a density of ≥99.98%
Electrolytic polishing: Surface roughness Ra≤0.4μm (medical grade)
3. Digital finishing
Five axis linkage machining center: form and position tolerance ±0.015mm
Micron EDM: depth to diameter ratio 20:1 microhole
4. Intelligent detection system
Industrial CT: Defect detection resolution 20μm
Cleanliness test: Residual particles ≤0.05mg/cm² (ISO 16232)
Intergranular Corrosion Test (ASTM A262E Method)
Product introduction

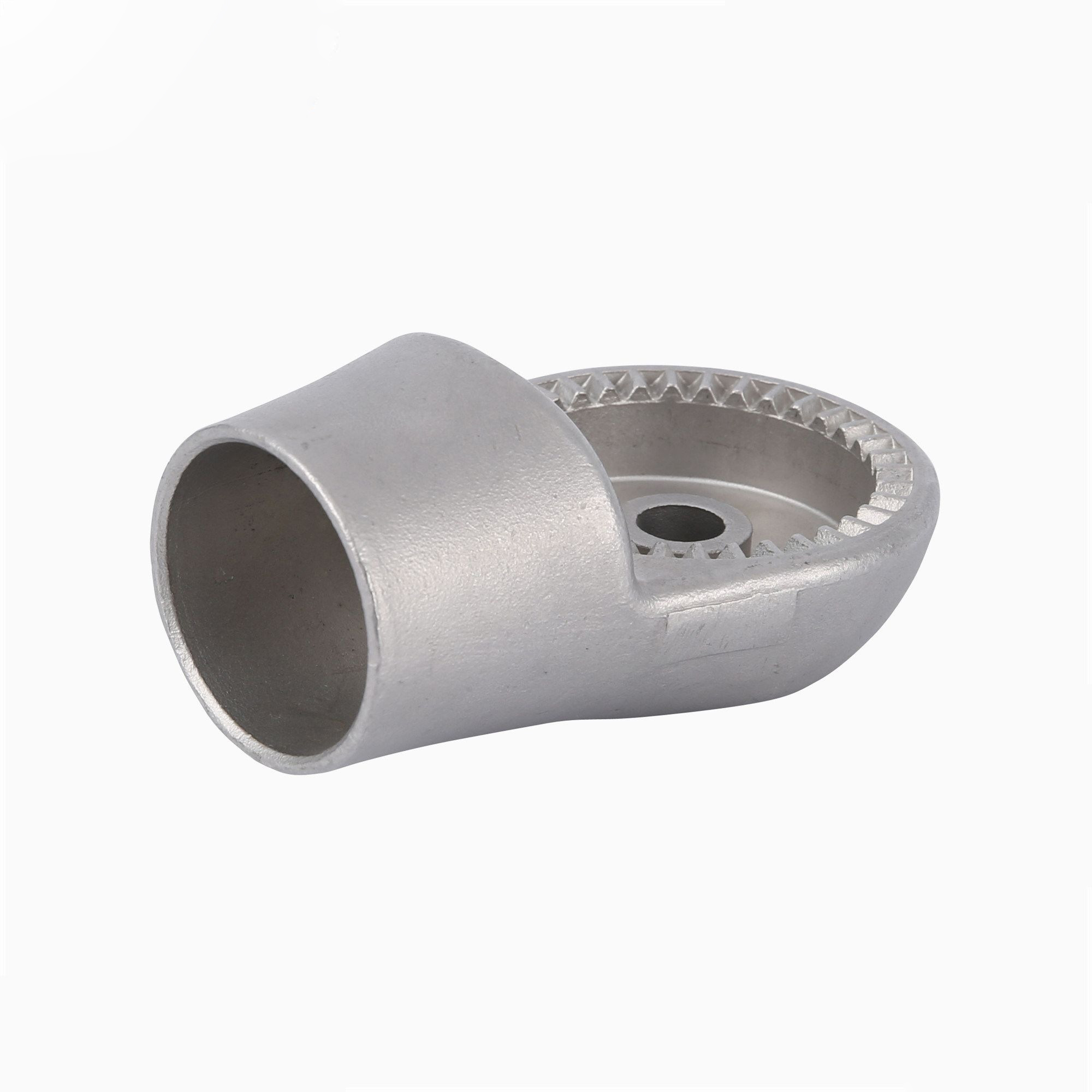

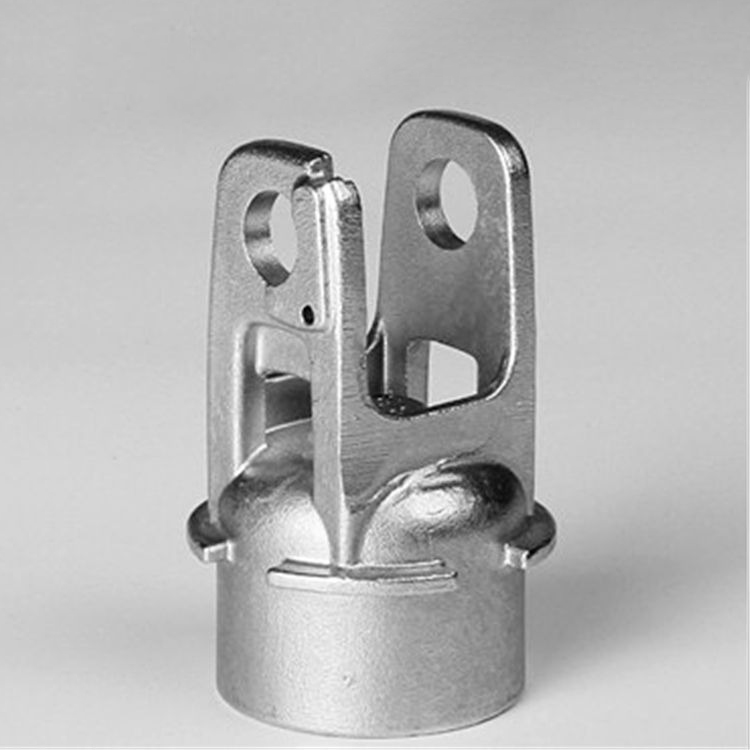

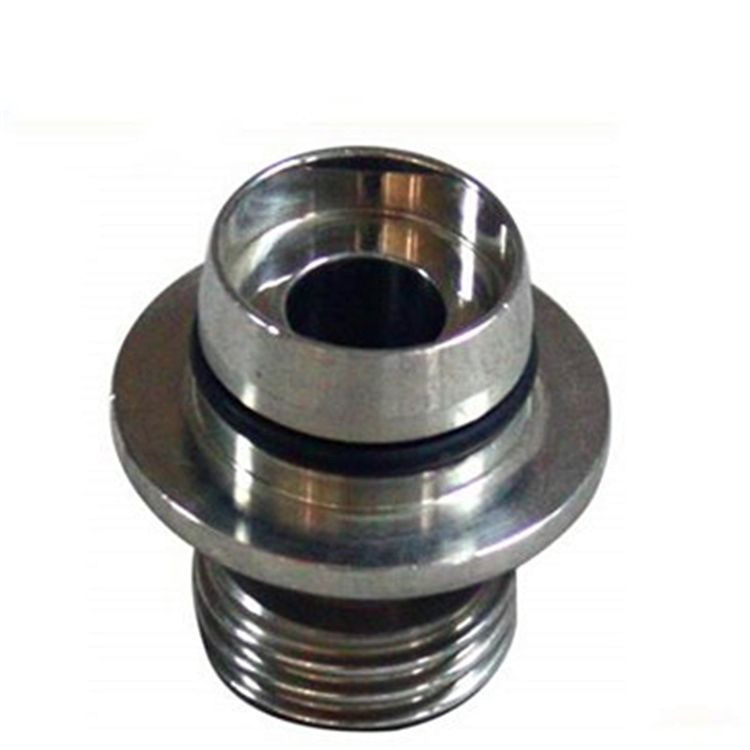

This 316L stainless steel precision casting uses ASTM A743 standard medical grade material (molybdenum content 2-3%), through 9 layers of silica sol investment casting and vacuum directional solidification process, to achieve 1.2mm ultra-thin wall complex structure molding (CT5 accuracy). The product is densified by hot isostatic pressing (1150℃/100MPa) and electrolytic polishing (Ra≤0.4μm), the key dimensions are refined from the five-axis machining center to ±0.015mm, and the industrial CT (20μm resolution) and intergranular corrosion test are passed.
Our advantage
1. Medical grade material guarantee
316L stainless steel (ASTM A743 standard), molybdenum content 2-3%, corrosion resistance 10 times that of 304
Mechanical properties: Tensile strength ≥515MPa, elongation ≥40%
ISO 10993 Biocompatibility test (medical implant grade)
2. Complex structure precision molding
Minimum wall thickness 1.2mm, minimum aperture φ1.5mm
Dimension accuracy CT5 (ISO 8062), surface roughness Ra≤1.6μm
It can cast topological structures such as spiral flow channels, special-shaped surfaces and thin-walled meshes
3. International certification system
Provide EN 10204 3.1 Materials Certificate
Comply with PED 2014/68/EU Pressure Equipment Directive
Detail data
Application | Hardware |
Material Type | Stainless steel |
Standard | CE, RoHS, ISO 9001:2000, ISO 9001:2008 |
Kind | Stainless Steel Casting |
Molding Technics | Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
