Why choose us?
1. Precision casting system
Silica sol composite shell making process (9-11 layers)
Vacuum smelting casting (1600℃±20℃)
Shell roasting temperature ≥1000℃
Argon shielded molding
2.CNC precision machining
Five-axis linkage machining center (accuracy ±0.01mm)
Professional valve sealing surface processing equipment
Automatic turning center cluster
3. Improve the testing system
100% X-ray inspection (ASTM E505 standard)
Seal test: 1.5 times rated pressure holding test
Three-dimensional measuring instrument full size inspection
Material spectral analysis report

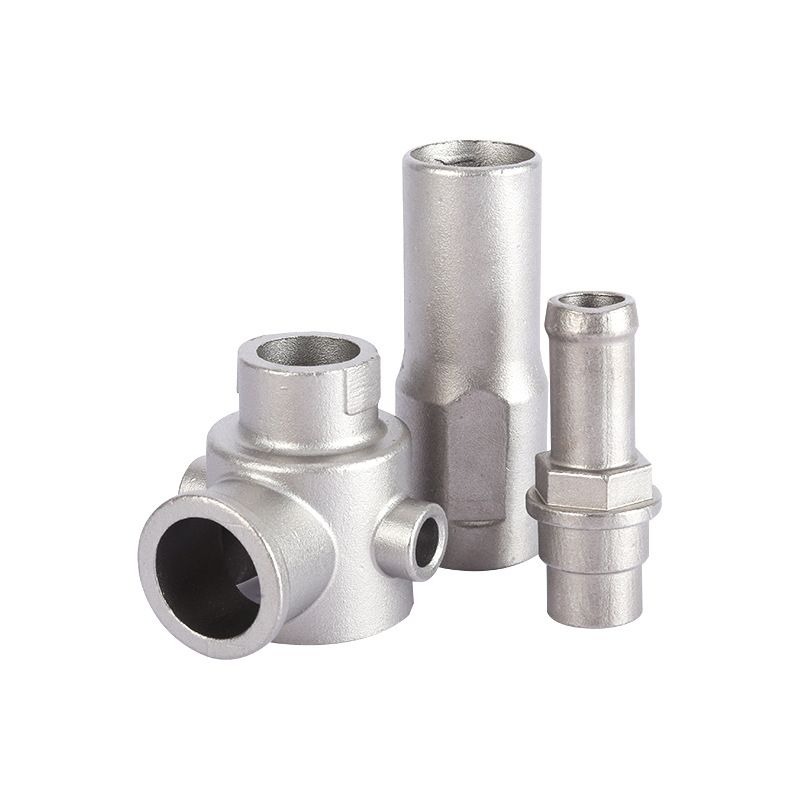

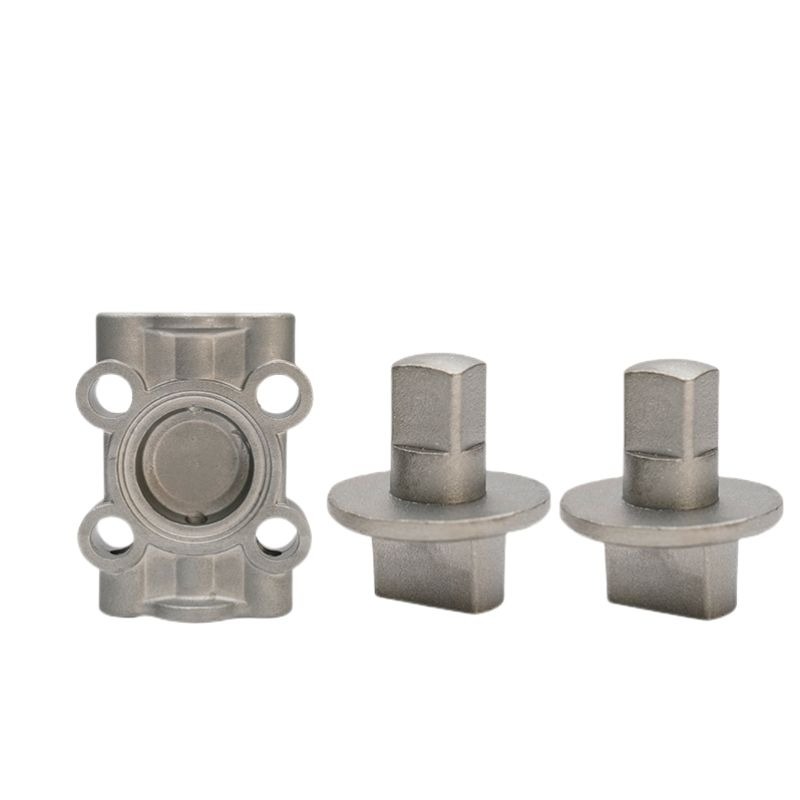

Product introduction
We focus on high-precision stainless steel valve manufacturing, using high-quality stainless steel materials such as 304/316/316L, combined with precision wax loss casting process to achieve ultra-high tolerance control of ±0.05mm. Through CNC precision machining to ensure that the valve sealing surface Ra0.8μm mirror level finish, the product through X-ray detection and 1.5 times working pressure test, fully in line with API, ANSI and other international standards. Support OEM/ODM customization services, provide the whole process solution from mold development to mass production, widely used in petrochemical, pharmaceutical food, energy and power and other harsh conditions, and passed ISO9001/TS16949 double quality certification.
Our advantage
1. Excellent material performance
Available in a variety of stainless steel options such as 304/316/316L/ duplex steel
316L Ultra-low carbon content ≤0.03%, certified by ASTM A351
Corrosion resistance: 96-hour salt spray test and intergranular corrosion test
Mechanical properties: Tensile strength ≥520MPa, hardness HRB≤90
2. Precision manufacturing standards
Dimensional accuracy up to CT4 level (ISO 8062 standard)
The minimum casting wall thickness is 1.2mm
Sealing surface roughness Ra0.4-0.8μm (mirror grade)
Pressure range: PN10-PN100 (ANSI 150-600LB)
3. Professional valve type
√ Ball valve/gate valve/globe valve/check valve
√ Suitable for oil, LNG, chemical industry and other harsh conditions
√ Pass API 6D, CE, TS certification
Detail data
Application | Auto Parts |
Material Type | Iron,Steel,Iron,Stainless,Aluminium |
Standard | CE, RoHS, ISO 9001:2008 |
Casting | Precisely Casting |
Molding Technics | Lost Wax Casting |
Weight | 0.05kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
