Parts Machinery

Why choose us?

1. Precision investment casting

Silica sol + zirconium sand composite shell (7-9 layers), shell high temperature strength ≥1600℃

Vacuum assisted casting technology, casting density ≥98% (X-ray testing ASTM E155)

2. Special post-treatment process

Electrolytic polishing (EP) : Surface roughness Ra≤0.8μm, improve corrosion resistance

Solid solution treatment (1050℃ water quenching) : optimize the crystal phase structure and eliminate the casting stress

3. Digital finishing

Five-axis CNC machining center, key dimensional tolerance ±0.02mm

Intelligent inspection: Coordinate measurement (±0.01mm) + industrial CT scan (internal defect detection)

4. Surface strengthening technology

Shot peening: increase fatigue life by more than 30%

PVD coating (optional) : enhanced wear resistance (friction coefficient ≤0.15)

Product introduction

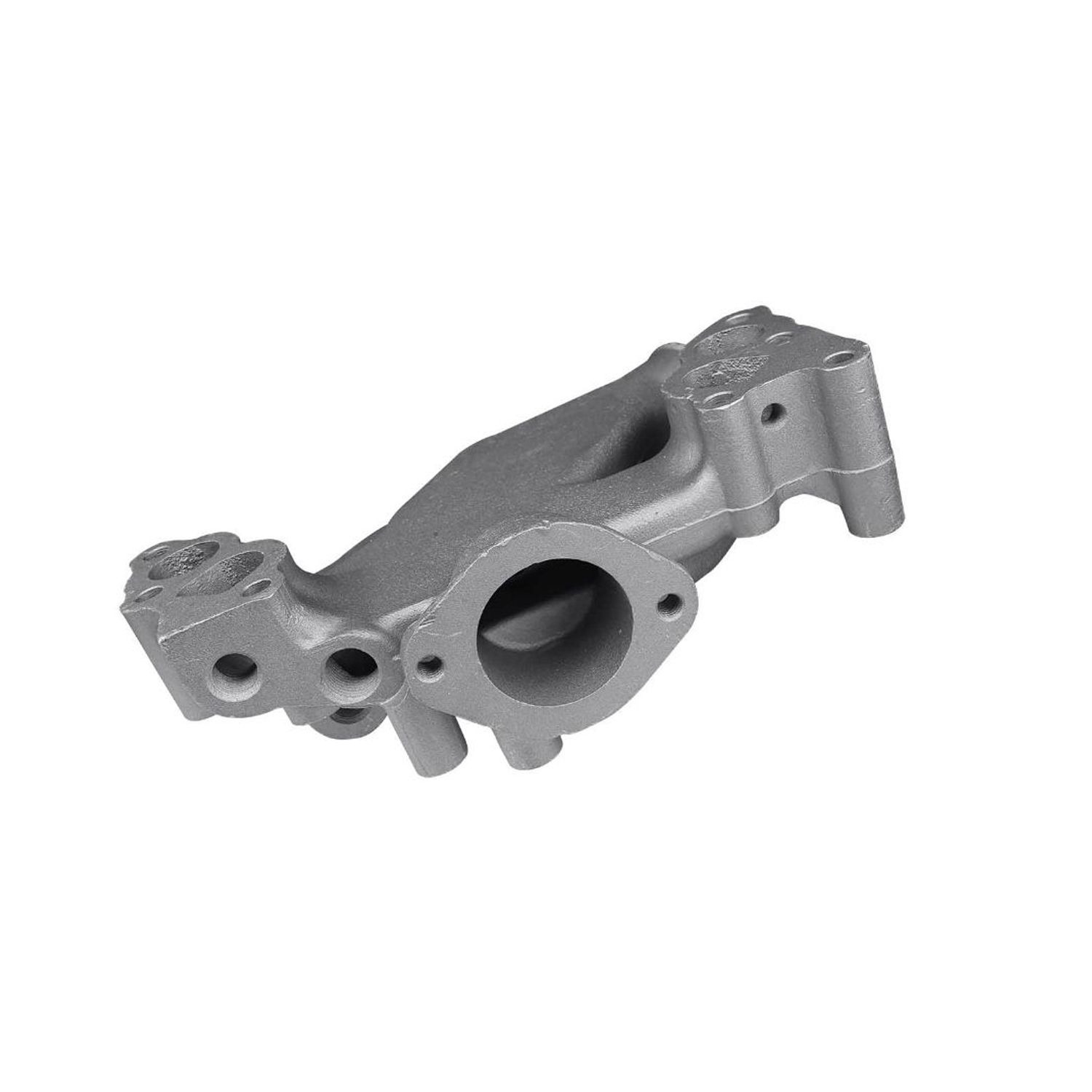

Mechanical stainless steel castings are made of 304/316 stainless steel (ASTM A743 standard) by precision investment casting process, with excellent corrosion resistance (96-hour salt spray test) and mechanical strength (tensile strength ≥515MPa), widely used in pump valve housing, hydraulic parts and food machinery and other industrial equipment. The product adopts silica sol composite shell making (7-9 layers) and vacuum pouring technology to achieve 1.5mm thin-wall complex structure forming (accuracy ±0.15mm/100mm), and is enhanced by electrolytic polishing (Ra≤0.8μm) and solution treatment (water quenching at 1050℃), combined with five-axis CNC finishing (±0.02mm tolerance) and industrial CT detection. High reliability solutions for harsh industrial environments.

Our advantage

1. Quality material selection

304/316 stainless steel (ASTM A743 standard) with excellent corrosion resistance (96-hour salt spray test) and mechanical properties (tensile strength ≥515MPa)

Optional duplex steel (2205) or superalloy (Inconel 625) for extreme conditions (-200 ° C to 1000 ° C)

2. High precision structure molding

The dimensional accuracy is up to ISO 8062 CT6 level (±0.15mm/100mm), and the minimum wall thickness is 1.5mm

It can produce complex cavities, special-shaped surfaces and other geometric features that are difficult to achieve in machining

3. Multi-functional industrial adaptability

Covers pump valve housing, hydraulic parts, food machinery parts and other industrial spare parts

4. Support non-standard customization (drawing or sample copying), single to mass production can be undertaken

5. Strict quality certification

Provide material reports (MTC) and mechanical performance test reports

Compliance with PED 2014/68/EU Pressure Equipment Directive (optional)

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample.
