Why choose us?
1. Intelligent CNC machining system
Germany DMG five-axis linkage center (accuracy ±0.005mm)
Swiss TORNOS turning and milling complex machine (spindle speed 12,000rpm)
On-line measuring system compensates tool wear in real time
2. Special process combination
Deep hole drilling (depth to diameter ratio 15:1, aperture Ø1mm)
Micron thread processing (metric/Inch/US full range)
Mirror cutting (Ra≤0.2μm, no subsequent polishing requirement)
3. Surface treatment expert

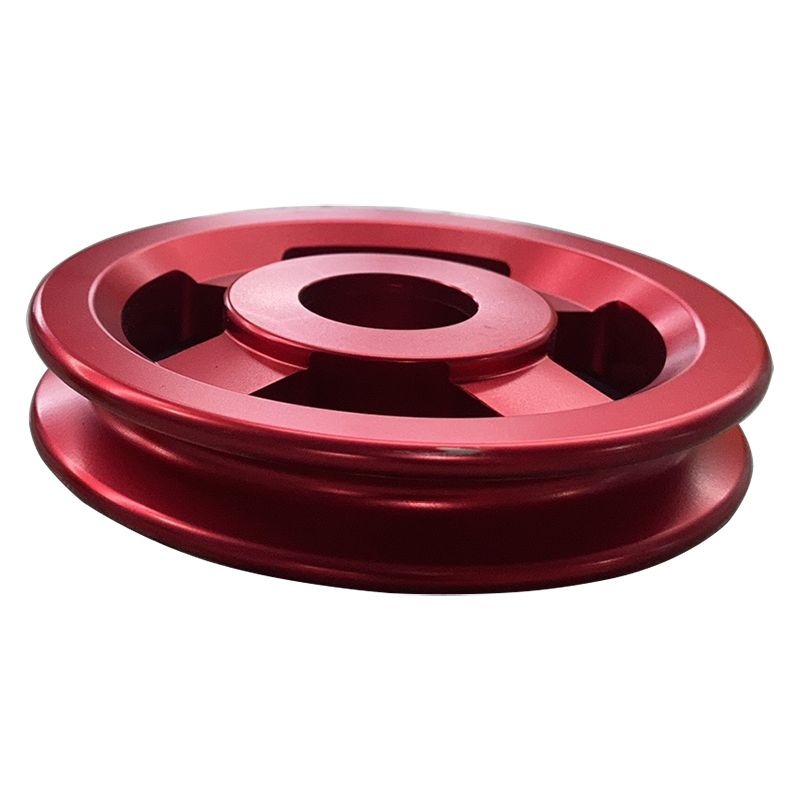

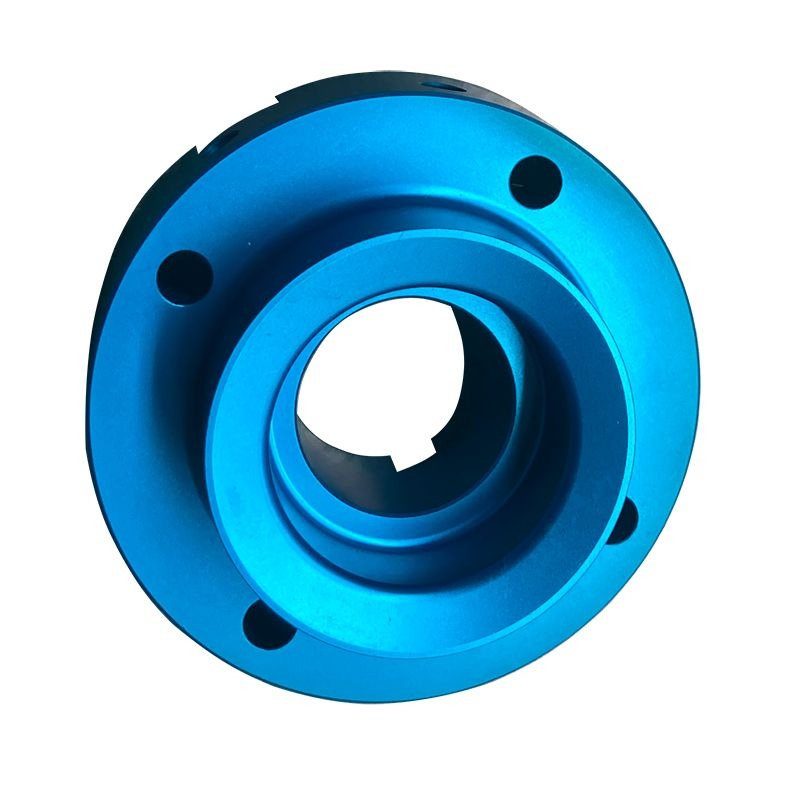

Anodizing (aluminum film thickness 5-25μm optional)
Electrolytic polishing (stainless steel Ra≤0.4μm)
Passivation treatment (salt spray test ≥96 hours)
4. Digital production management
CAM programming simulation to optimize cutting parameters
Process traceability system (RFID tag tracking)
Real-time sharing of processing progress in the cloud
Product introduction
This precision CNC machining service uses German DMG five-axis joint center (accuracy ±0.005mm) and Swiss TORNOS turn-milling complex equipment, which can process stainless steel (304/316), aluminum alloy (6061/7075) and titanium alloy, and achieve a tolerance of ±0.02mm and Ra≤0.8μm surface finish. The products cover complex parts such as medical implant fixtures and new energy motor shells, optimized by online measurement compensation and CAM programming, combined with surface treatments such as anodizing (aluminum parts) or electrolytic polishing (stainless steel) to meet stringent standards such as ISO 13485, providing high-precision and fast delivery solutions in small batches for aerospace, semiconductor and other fields.
Our advantage
1. Multi-material precision machining ability
Stainless steel: 304/316 (surface roughness Ra≤0.8μm), suitable for medical/food grade parts
Aluminum alloy: 6061/7075 (tolerance ±0.02mm), to meet the needs of aerospace lightweight
Special alloy: titanium alloy (Gr5), brass (H59) and other difficult materials
2. Complex structure one-stop molding
Turning and milling composite processing: maximum turning diameter Ø500mm, milling stroke 800×500×400mm
Typical parts: precision shaft (roundness ≤0.005mm), shaped cavity (position ±0.01mm)
3. Industry customized services
Medical equipment: Fixture for implants according to ISO 13485
Auto parts: New energy motor housing (IP67 protection grade)
Optical instrument: Tube assembly (assembly gap ≤0.03mm)
4. Strict quality assurance
Full size three-dimensional detection (accuracy ±0.002mm)
Surface hardness test (HRC/HRB/HV multi-scale)
The material spectral analysis report is provided with the goods
Detail data
Application | Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery |
Material Type | Steel, Alloy, Aluminum, Iron |
Standard | CE, ROHS, SGS |
Surface Treatment | Electroplating |
Machining Method | CNC Machining |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
