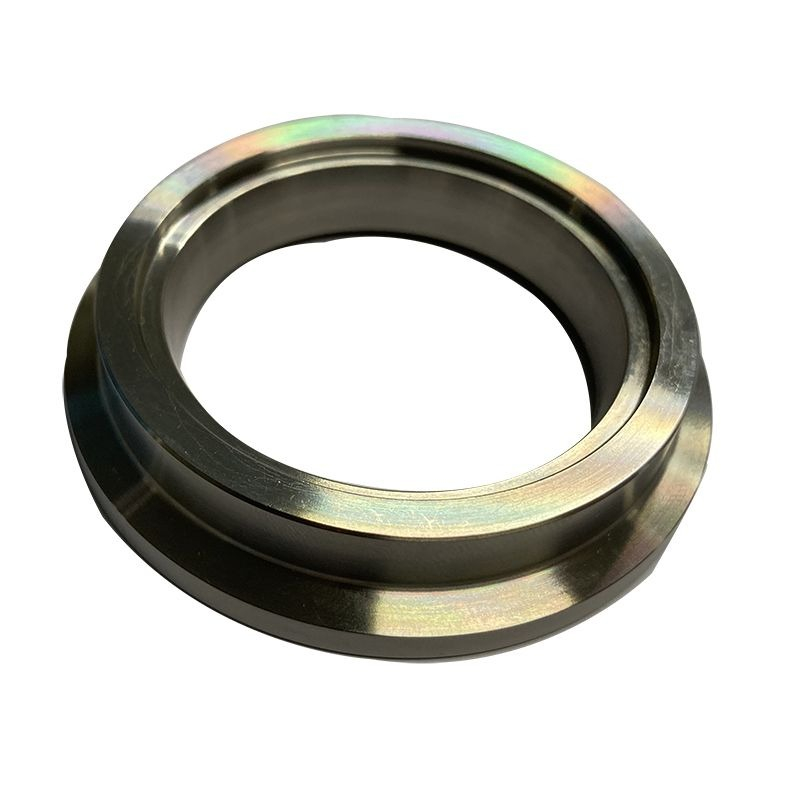

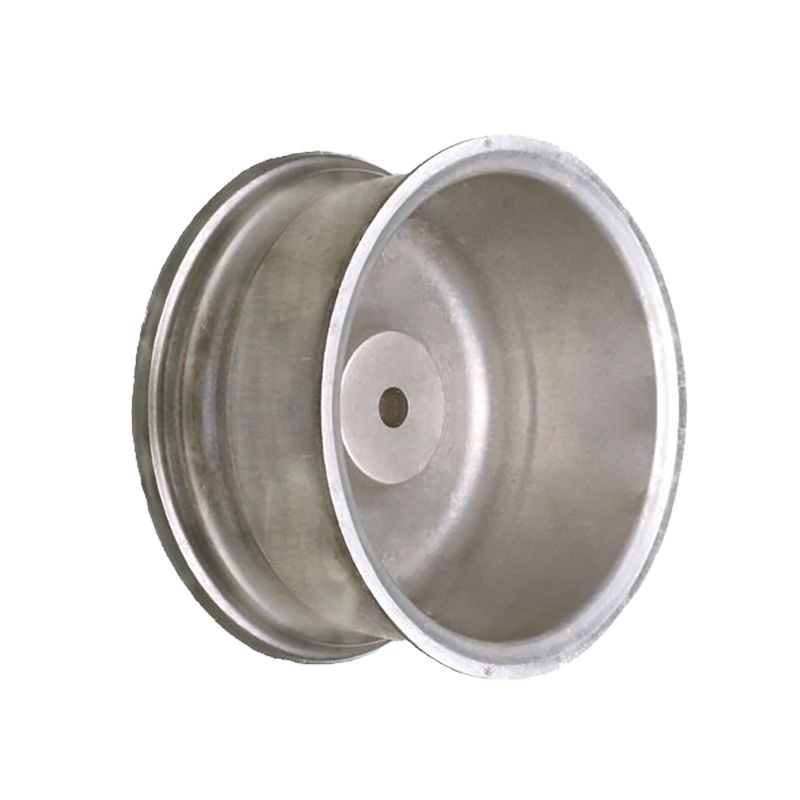

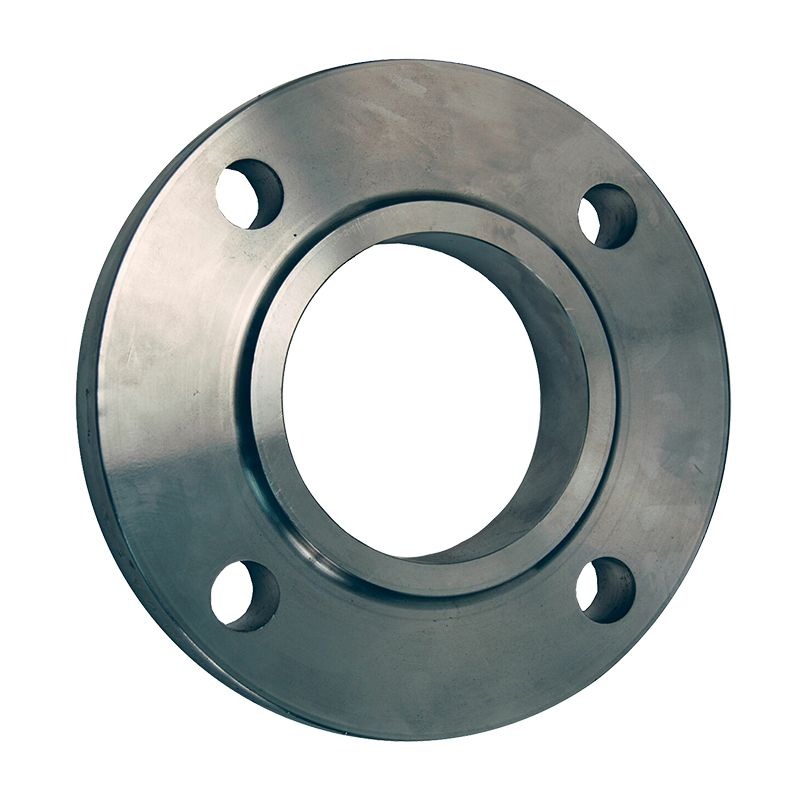

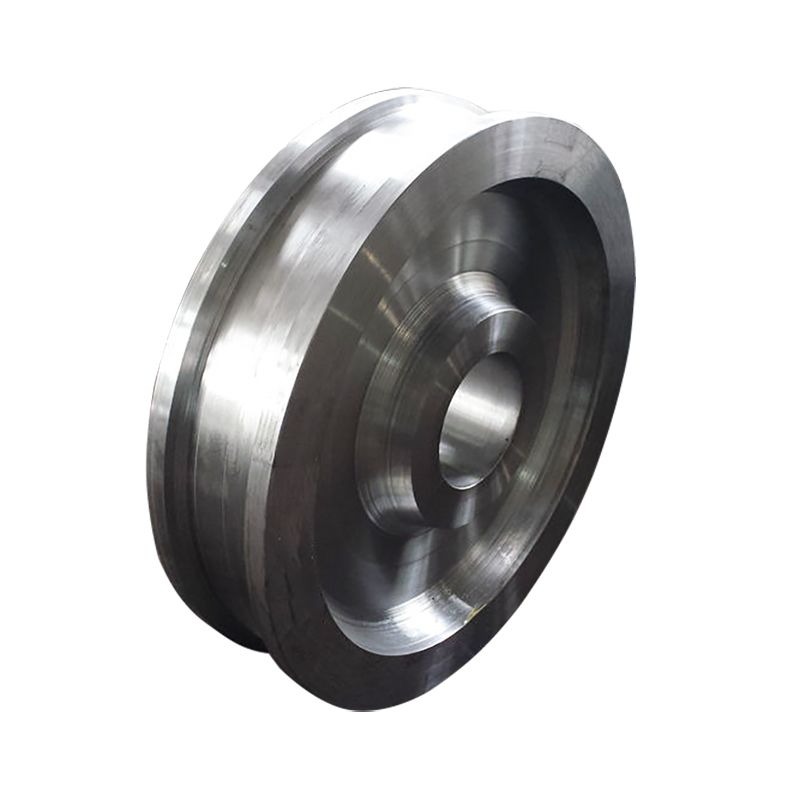

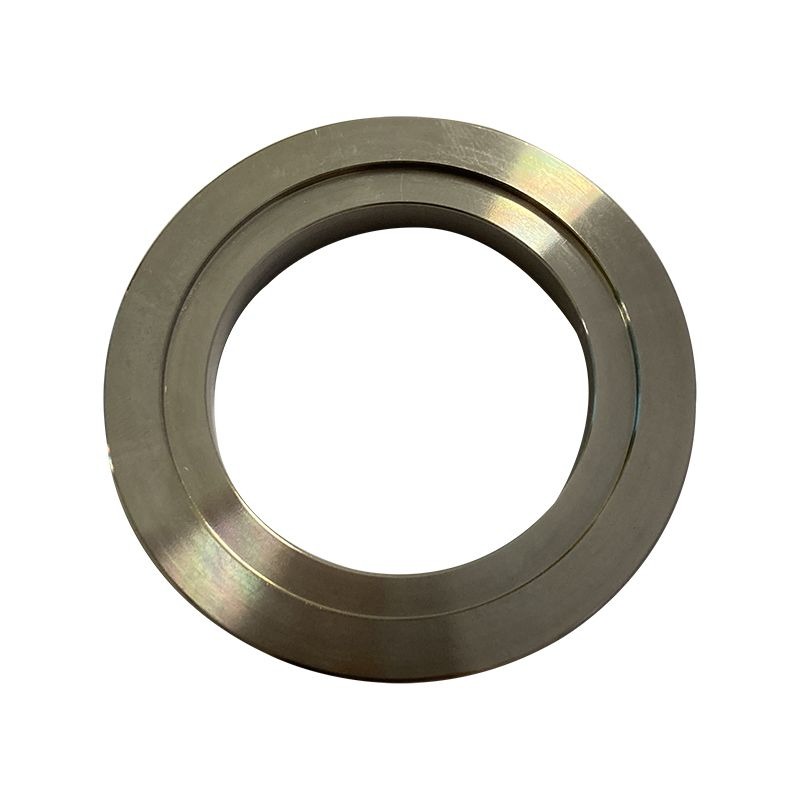

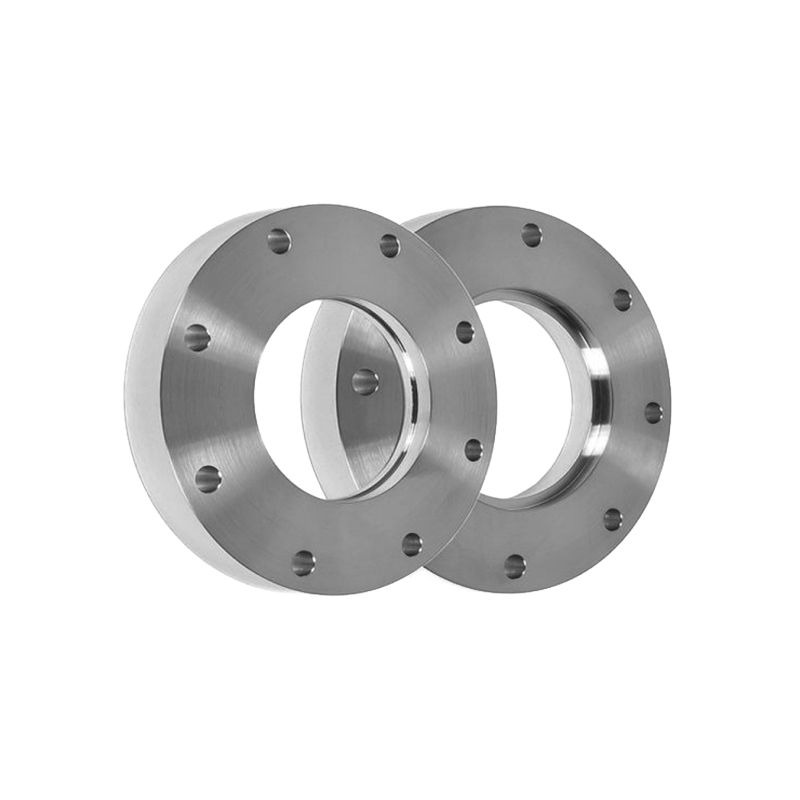

Turned Hot Forged Parts

Why choose us?

1. Precision turning processing

Japan Tsu machine machining, straightness ≤0.01mm/100mm

Swiss Baomei CNC lathe, repeated positioning accuracy of ±0.003mm

2. Special heat treatment

Solution treatment (1050℃ water quenching) : restore the best corrosion resistance of the material

Low temperature stress removal (300℃×2h) : eliminate processing deformation

3. Surface strengthening technology

Electrolytic polishing: the surface roughness can reach Ra≤0.4μm

PVD coating (optional) : Friction coefficient of TiN coating is reduced to 0.08

4. Whole process inspection

Air gauge aperture (accuracy ±0.001mm)

Roundness measuring radial runout (≤0.005mm)

Spectral analysis ensures material composition (precise Mo content control)

Product introduction

This large CNC machining service is equipped with a 5-meter vertical lathe and gantry machining center, with superior machining capacity (maximum turning diameter of Ø2000mm, workpiece weight ≤8 tons), and can handle a variety of materials such as aluminum alloy (5083/7075), stainless steel (304/316L) and titanium alloy. Through constant temperature workshop (20±1℃) and laser compensation technology to ensure large size accuracy (±0.05mm), provide wind power gearbox, ship thrusters and other large parts processing, with laser quenching (hardness ≥HRC55) and other special processes to meet the energy, rail transit and other industries of heavy precision machining needs.

Our advantage

1. Quality material guarantee

316 stainless steel (according to ASTM A276 standard), molybdenum content of 2-3%, corrosion resistance is better than 304 stainless steel (passed 96 hours salt spray test)

Mechanical properties: Tensile strength ≥515MPa, hardness HBW≤217, applicable temperature -196℃~800℃

2. Precise size control

Inner diameter tolerance H7 (±0.01mm), outer diameter tolerance h6

Concentricity ≤0.02mm, surface roughness Ra≤0.8μm

3. Strengthen wear-resistant design

Optional surface hardening (nitriding/chrome plating), hardness up to HV≥800

Precision grinding inner hole, friction coefficient ≤0.12 (dry friction condition)

4. Multi-scenario adaptation

Standard specification: Inner diameter φ5-100mm, length 10-200mm

Support non-standard customization: taper sleeve, flange sleeve and other special-shaped structure

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample.
