Why choose us?
1. High-performance material system
Adopted 41CrAlMo7/42CrMo4 alloy steel (EN 10083 standard), tensile strength ≥1000MPa
Optional titanium alloy (TC4) or aluminum alloy (6082-T6) to achieve 30-60% weight reduction
2. Professional solutions for key components
Engine system: crankshaft forging (fatigue life ≥5×10⁶ times)
Transmission system: Variable speed gear (surface hardness HRC58-62)
Suspension system: Wheel hub forging (dynamic load ≥2 tons)
3. Precise size control
Hot forging accuracy IT9 (allowance ≤2mm)
CNC machining accuracy ±0.015mm (key mating surface)
4. Guarantee of industry certification
ISO 9001 and IATF 16949 certified
Presentation of Materials 3.1 Certificate (EN 10204)
Product introduction

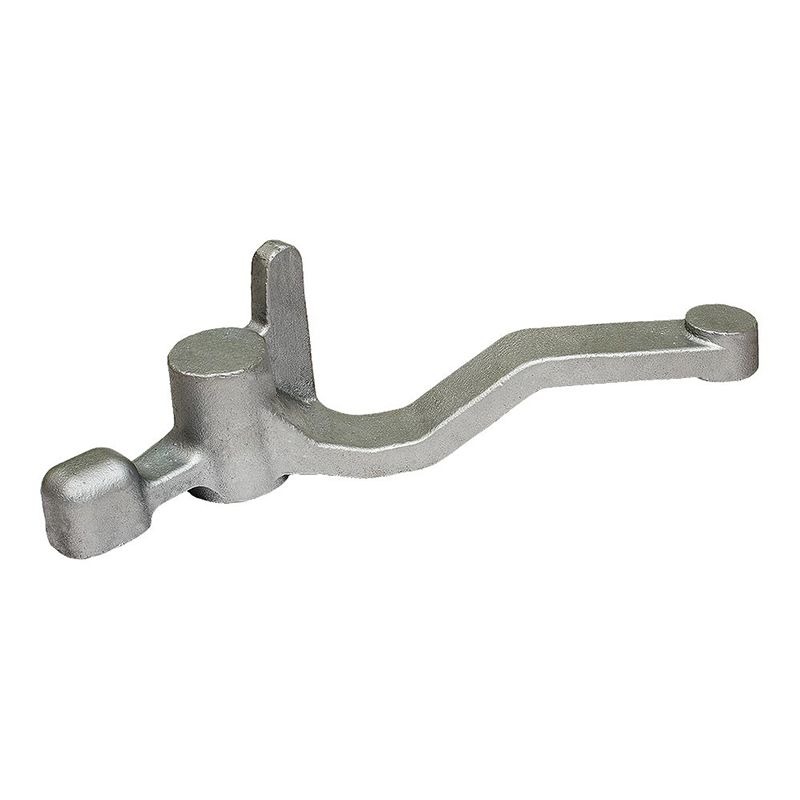

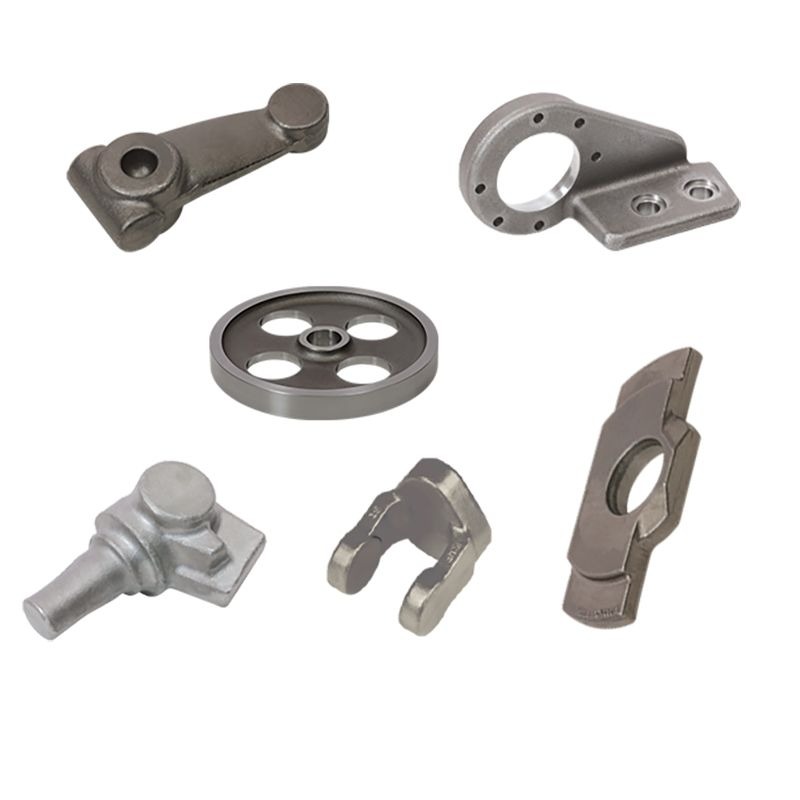

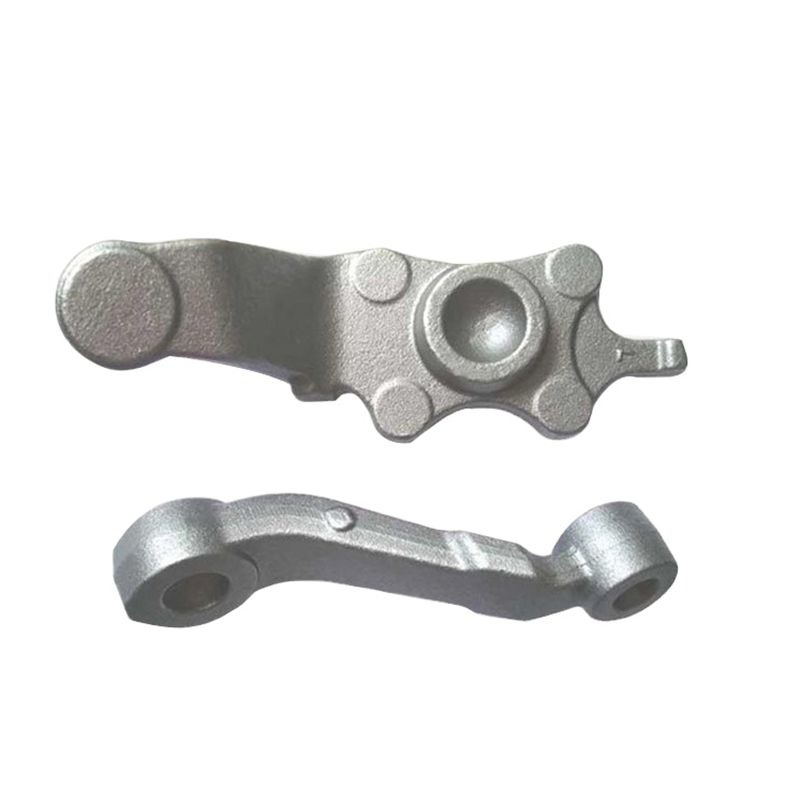

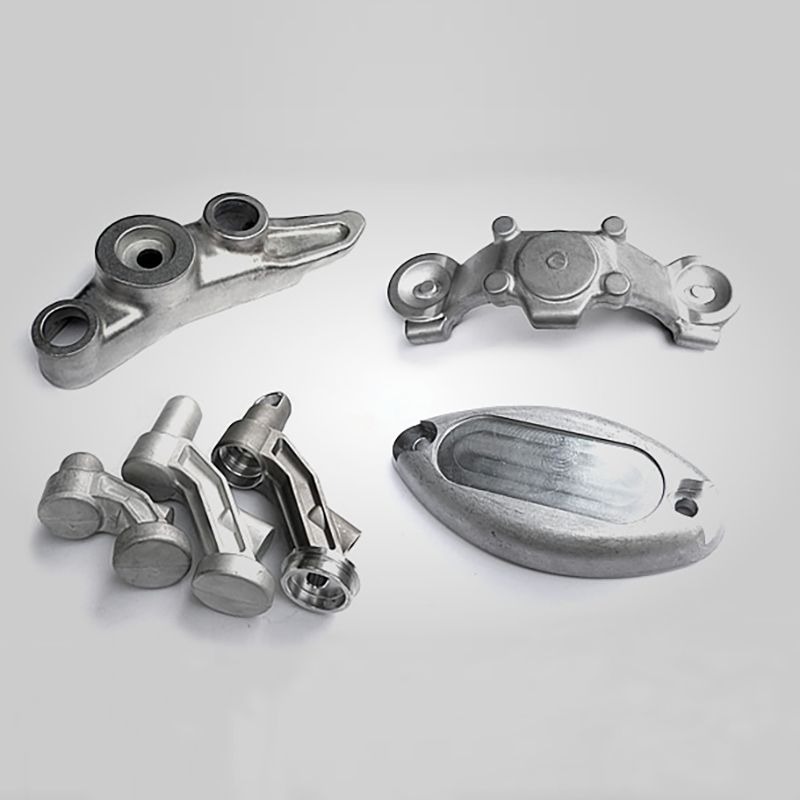

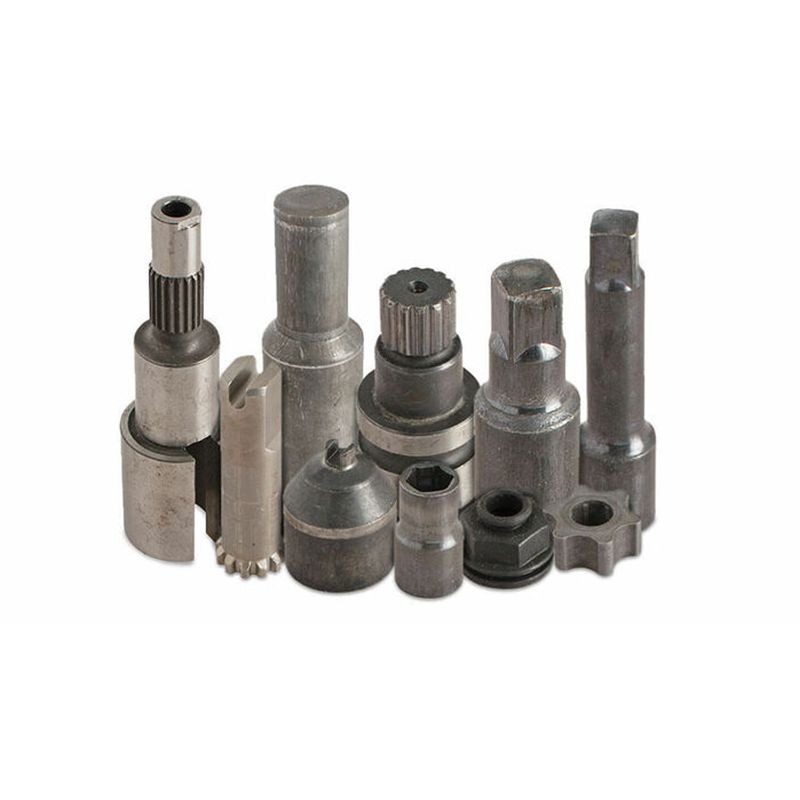

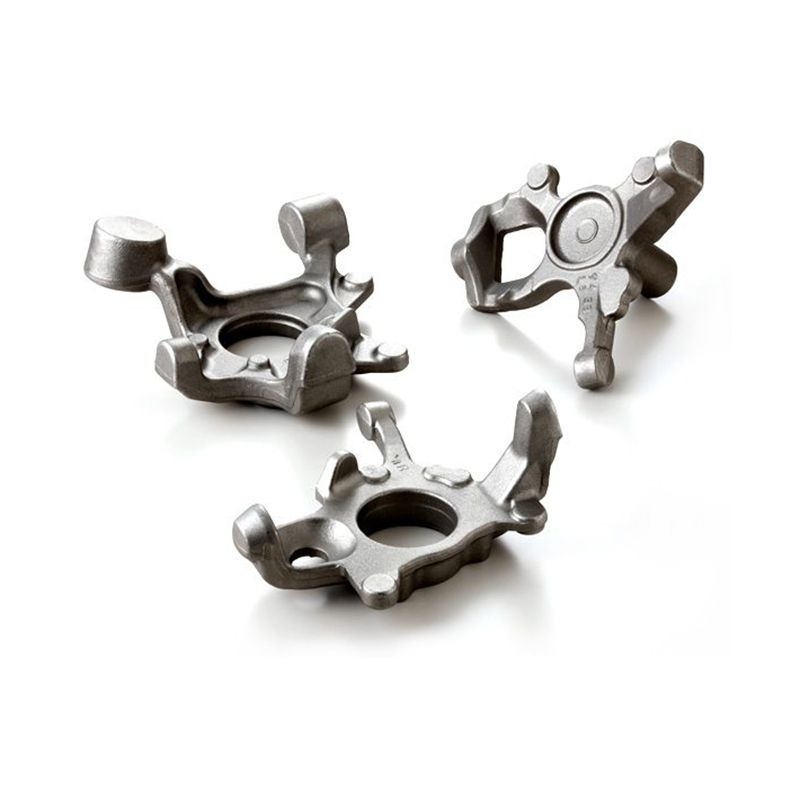

This motorcycle precision forging is made of 41CrAlMo7/42CrMo4 high-strength alloy steel (tensile strength ≥1000MPa), through 4000T electric screw press to achieve precision forging (margin ≤2mm), with the turn-milling composite center to complete ±0.015mm finishing. With controlled atmosphere carburizing (hardened layer 1.2-1.8mm) and bainite quenching treatment, key components such as crankshaft (life ≥5×10⁶ times) and transmission gear (tooth surface HRC58-62) pass EN 10228-3 ultrasonic inspection, providing a lightweight solution for high performance motorcycles with a weight reduction of 15-60%.
Our advantage
1. Intelligent die forging system
4000T electric screw press: Precise control of strike energy (±1%)
Robot automatic loading and unloading: temperature loss ≤20℃
2. Special heat treatment
Controlled atmosphere carburizing: effective hardening layer depth 1.2-1.8mm
Bainite isothermal quenching: impact power increased by 40%
3. Composite processing technology
Turning and milling composite center: complete the whole process of shaft parts synchronously
Gear forming grinder: DIN 5 precision (tooth shape error ≤8μm)
4. Surface strengthening process
Laser cladding: wear layer hardness ≥HRC60
Micro arc oxidation (titanium alloy) : corrosion resistance increased by 10 times
Detail data
Application | Machinery Parts |
Material Type | Aluminum |
Standard | CE, RoHS, ISO 9001:2000 |
Surface Preparation | Electroplating |
Machining | Aluminum Die Casting |
Weight | 0.5kg~50kg |
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs. And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
