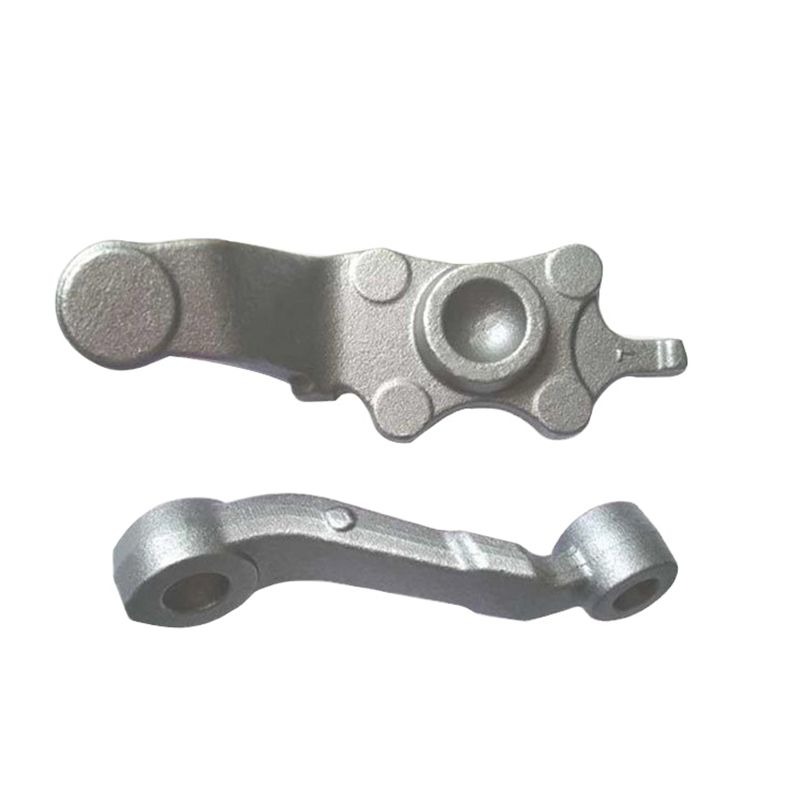

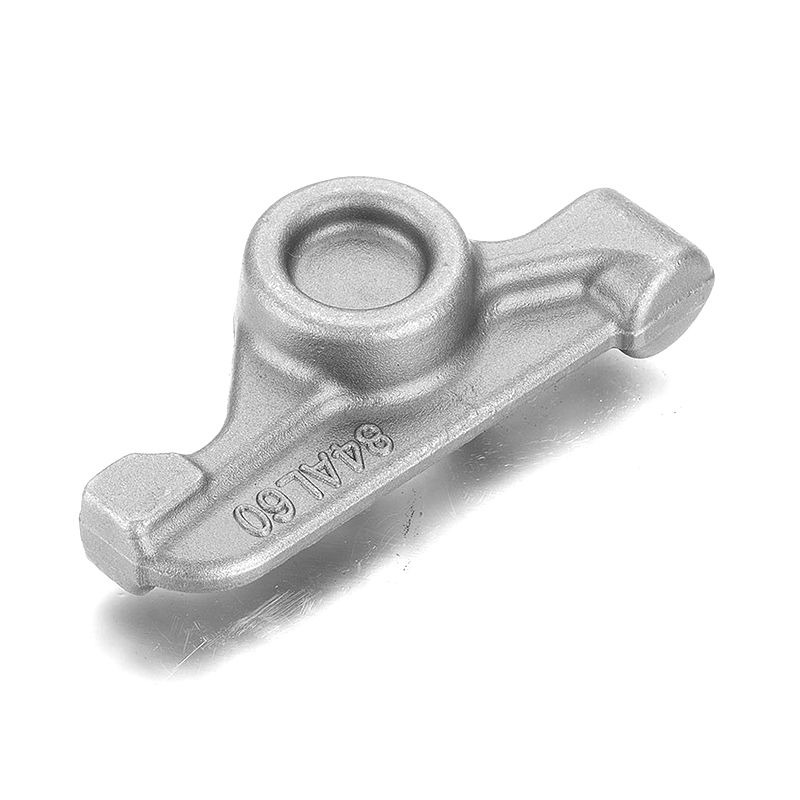

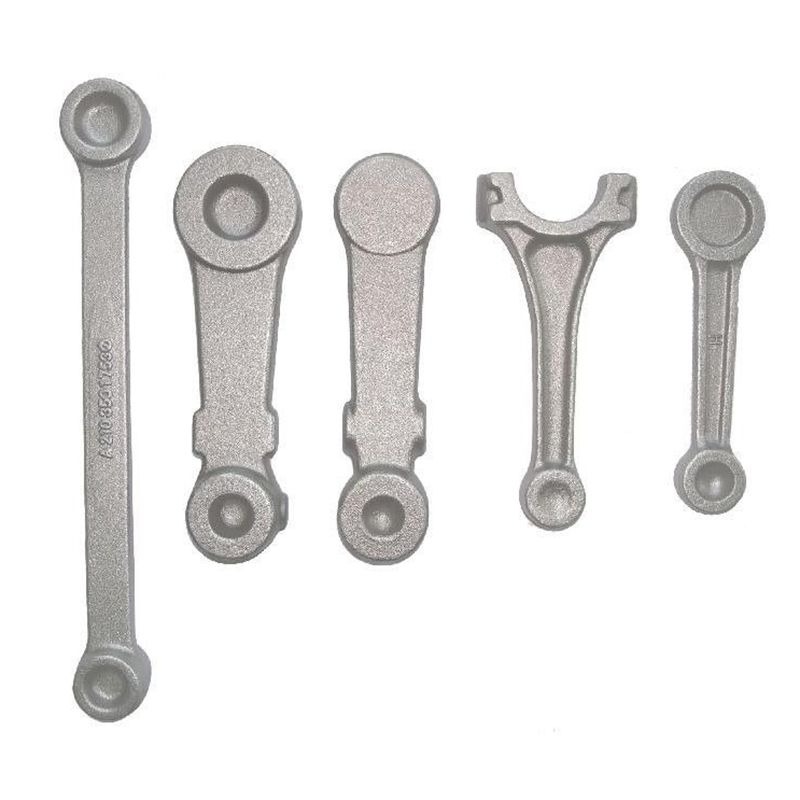

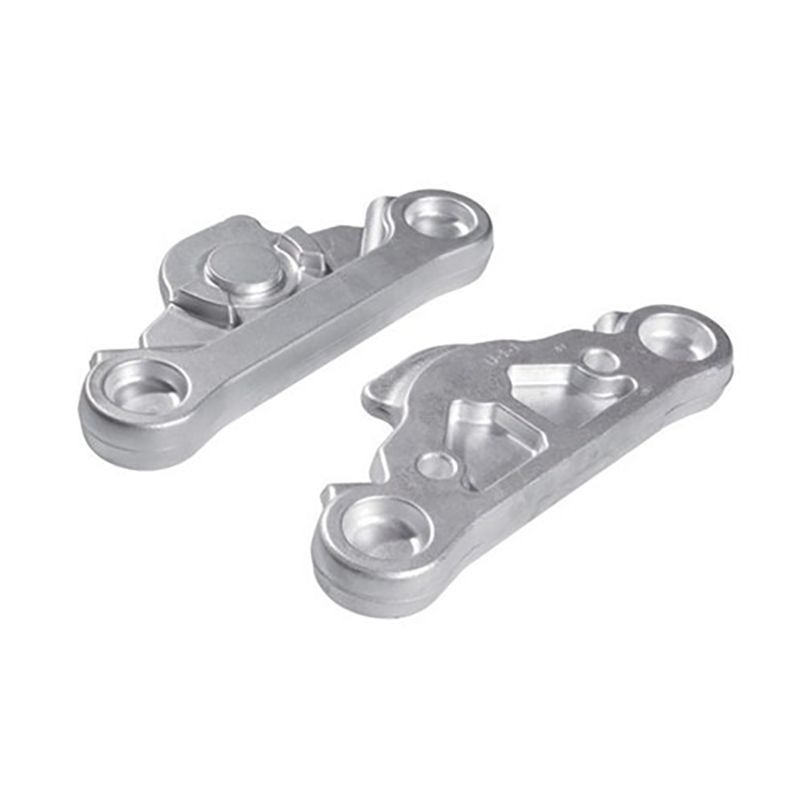

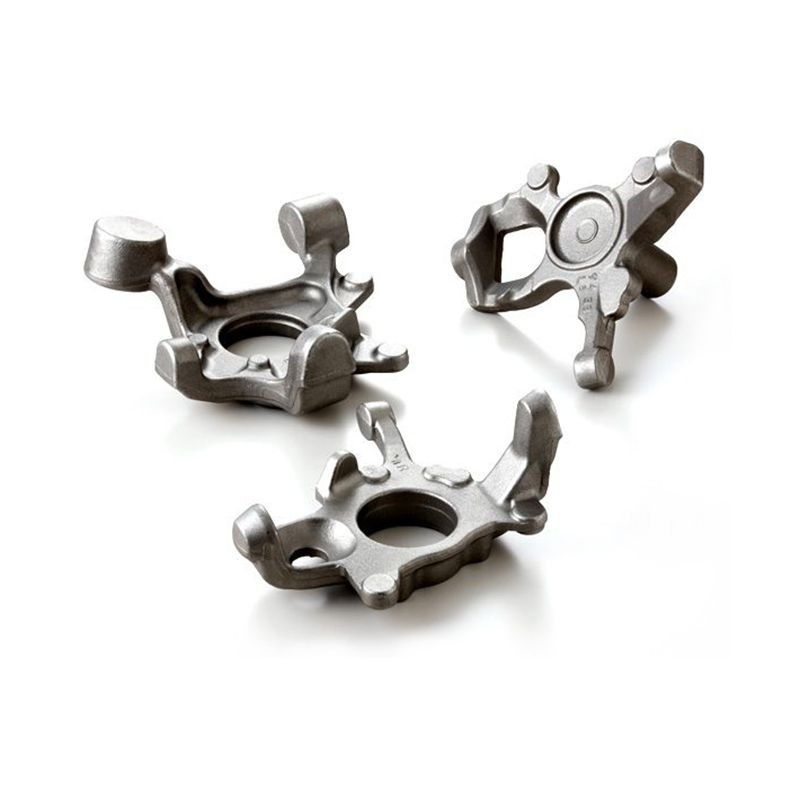

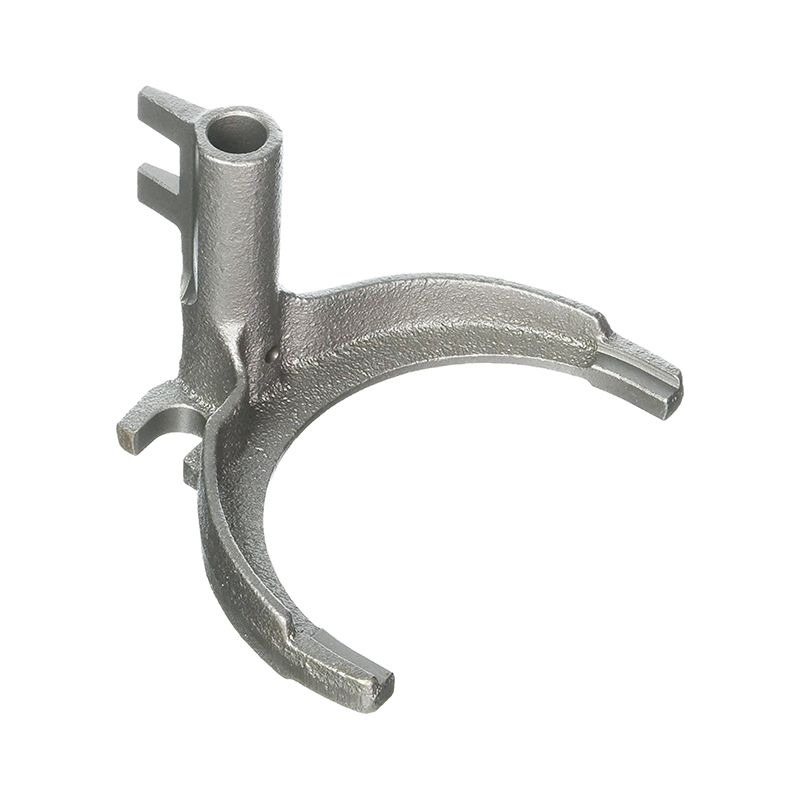

Aluminium Forging Part

Why choose us?

1. Closed die forging

4000T hot die forging press: forging temperature 1150±20℃, skin loss ≤0.3%

Multi-direction forging technology: three-way compressive stress state, material utilization ≥85%

2. Precision heat treatment

Vacuum quenching (1020℃×2h) + cryogenic treatment (-80℃), microstructure uniformity ≥95%

Ion nitriding: surface hardness HV900, infiltration layer thickness 0.2-0.3mm

3. Digital processing

Five axis linkage machining center: tooth profile ≤0.02mm

Online measurement system: real-time compensation of thermal deformation (compensation accuracy ±0.01mm)

4. Surface strengthening technology

Micro arc oxidation (titanium alloy) : film thickness 50-100μm, insulation resistance ≥100MΩ

DLC coating: friction coefficient is reduced to 0.1, life is increased by 5 times

Product introduction

This closed die forging finger fixture is made of 42CrMo4 alloy steel (EN 10083 standard), and multi-directional precision forging is achieved by 4000T hot die forging press (1150±20℃), and the material utilization rate is more than 85%. The product is strengthened by vacuum quenching (1020℃) and ion nitriding (HV900), and the key tooth shape parts are hardened by laser quenching (HRC55-60) to ensure ≥5 tons of clamping force and ±0.05mm repeated positioning accuracy, and pass 100% magnetic particle detection (ASTM E1444). It is widely used in high-end manufacturing fields such as automotive welding (fire retardant splash) and aviation composite molding (CTE matching), providing whole-process fixture solutions from reverse engineering to rapid samples (10 working days).

Our advantage

1. Selection of high-strength materials

42CrMo4 alloy steel (EN 10083 standard), hardness HRC32-36 after quenching treatment, tensile strength ≥900MPa

Optional stainless steel (17-4PH) or titanium alloy (TC4), suitable for corrosion/high temperature environment

2. Precision structure design

Maximum clamping force ≥5 tons, repeated positioning accuracy ±0.05mm

Laser quenching (hardness HRC55-60), wear resistance increased by 300%

3. Industry suitability

Automotive welding: Resistance welding fixture (refractory splash)

Aerospace: Composite molding fixture (CTE matching design)

Semiconductor: Wafer handling fixture (non-magnetic requirement)

4. Strict quality assurance

100% Magnetic Particle Detection (ASTM E1444)

Provision of Material 3.1 certification (EN 10204)

Detail data

FAQ

1.What is the Minimum Order Quantity?

5~1000 pcs. And we also accpet sample orders.

2. Can you manufacture according to customer's samples?

According to samples, we can make drawing, tooling and sample

3.How long will it take to make new samples according to customer's drawing or sample?

Totally 20 days. 10 days for tooling and another 10 days for sample.
