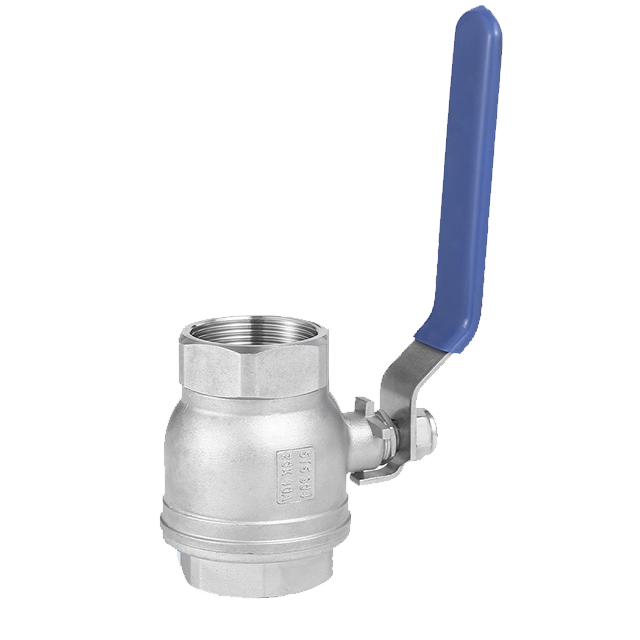

1. Product introduction
The construction of the two-piece ball valve consists of two main independent components: the valve body and the valve cover, which together form the main body of the valve. This design makes valve maintenance and repair easier because the valve can be accessed by removing the cover, rather than removing the entire valve body.
### Construction details:
- ** Body segment ** : The body is designed in two sections, which are connected to each other through a central connecting rod and are equipped with caps with gaskets at both ends to ensure tight closure.
- ** Ball mechanism ** : The ball is the core of the valve, which is installed inside the valve body and connected to the external control mechanism via the stem, allowing for precise control by the handle or motor.
- ** Valve stem function ** : The valve stem is a key component for transmitting power, which transmits the rotating motion of the handle or motor to the ball to realize the opening and closing of the valve.
- ** Seat Characteristics ** : The seat is made of elastic material and can be tightly fitted to the ball to provide a reliable sealing effect.
- ** Sealing ring ** : The sealing ring is an additional sealing element, and its role is to enhance the sealing of the valve and prevent the leakage of the medium.
- ** Control mode ** : The valve can be operated by manual handle or automatic motor, providing flexible control options.
### Feature Highlights:
1. ** Fast maintenance ** : Simplified maintenance procedures reduce maintenance time and cost, improve the overall work efficiency.
2. ** Compact design ** : Its small size makes it ideal for space-constrained environments.
3. Easy operation ** : Reasonable design ensures that the valve operation is light and reduces the labor intensity of the operator.
4. Excellent sealing ** : The well-designed valve seat and the selected material ensure the sealing performance of the valve under various working conditions.
5. ** Durability ** : The low friction between the ball and the seat, combined with the appropriate material selection, significantly extends the service life of the valve.
### Application Scenario:
The two-piece ball valve has a wide range of applicability and can control the flow of gases, steam, liquids and semi-solid media. They play an important role in fluid control systems in many industries such as chemical, petrochemical, water treatment, pharmaceutical, metal smelting and food processing.
Name | Nominal diameter | Body material | Nominal pressure | Applicable medium |
Two piece technology ball valve | DN6-100 | Stainless steel 304 | PN16 | Water |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements.
2 Product Advantages
|
Controller The handle is easy to operate |
Anti-loosening nuts TEffectively prevent the handwheel from falling off during use or transportation |
|
|
Spherical center path Let the water flow more smoothly to ensure the water pressure |
Valve body The thickened valve body is resistant to pressure and corrosion, with high hardness and durability |
|
3.Technical parameter
3C Valve Category | industry | Structural form | stationary | Control mode | Regulatory type |
Applicable temperature | Room temperature -20 ~ 120 | Driving mode | Driving mode | Article No. (Article number) |
|
Applicable medium | Water, oil, gas, etc | Valve body material | Stainless steel 304 | Structural form | two-piece |
4. Quality inspection equipment
Complete testing equipment to ensure product quality.
5.Packaging & Shipping
6. FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
