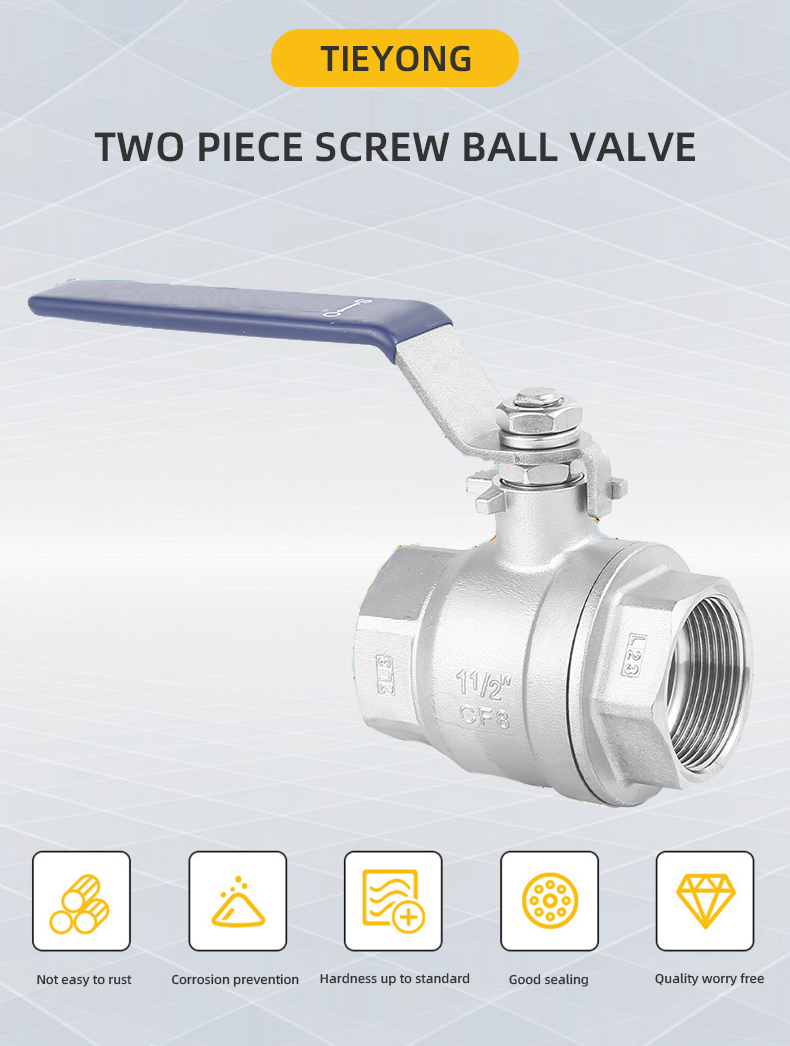

1. Product introduction
### How it works:
- ** Ball and channel ** : The ball valve contains a ball inside, and there is one or more channels on the ball.
- ** Rotary operation ** : The flow of fluid can be controlled by rotating the handle connected to the sphere.
- ** Open state ** : When the handle is rotated, the channel in the ball is aligned with the pipe, allowing water or air to flow, similar to opening a faucet.
- ** Off state ** : Rotate the handle in reverse and the channels inside the ball will be out of alignment, thus blocking the flow of fluid, similar to turning off a faucet.
### Features:
1. ** Frictionless operation ** : eliminates the problem of sealing caused by the friction between the sealing surface of the traditional valve.
2. ** Top structure ** : The valve installed on the pipeline can be directly checked and maintained online, effectively reducing the equipment parking time and reducing costs.
3. ** Single-seat design ** : solves the problem that the medium in the valve chamber is affected by abnormal pressure increase.
4. ** Low torque design ** : Special structure design of the valve stem, so that the valve even using a small handle can be easily opened and closed.
5. ** Wedge sealing structure ** : The valve relies on the mechanical force provided by the rod to press the ball wedge to the seat and achieve seal, which is not affected by the change of pipeline pressure difference to ensure the sealing performance under various working conditions.
6. ** Self-cleaning sealing surface structure ** : When the ball tilts away from the seat, the fluid in the pipeline passes 360° evenly along the ball sealing surface, not only washing and brushing away the local high-speed fluid on the seat, but also removing the scale on the sealing surface to achieve self-cleaning.
### Application Advantages:
- ** Fast switching ** : two-piece ball valve can be opened and closed quickly, suitable for frequent operations.
- ** Good sealing performance ** : Due to its wedge-shaped sealing structure, it can maintain good sealing performance even under high pressure difference.
- ** Easy maintenance ** : Due to its structural design, the maintenance and repair of the two-piece ball valve is relatively simple, reducing maintenance costs.
- ** Self-cleaning function ** : It can automatically clean the sealing surface when the fluid flows, reducing the need for maintenance.
Name | Nominal diameter | Body material | Nominal pressure | Applicable medium |
Two piece screw ball valve | DN6-100 | Stainless steel 304 | PN16 | Water |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements.
2 Product Advantages
|
Controller The handle is easy to operate |
Anti-loosening nuts TEffectively prevent the handwheel from falling off during use or transportation |
|
|
Spherical center path Let the water flow more smoothly to ensure the water pressure |
Valve body The thickened valve body is resistant to pressure and corrosion, with high hardness and durability |
|

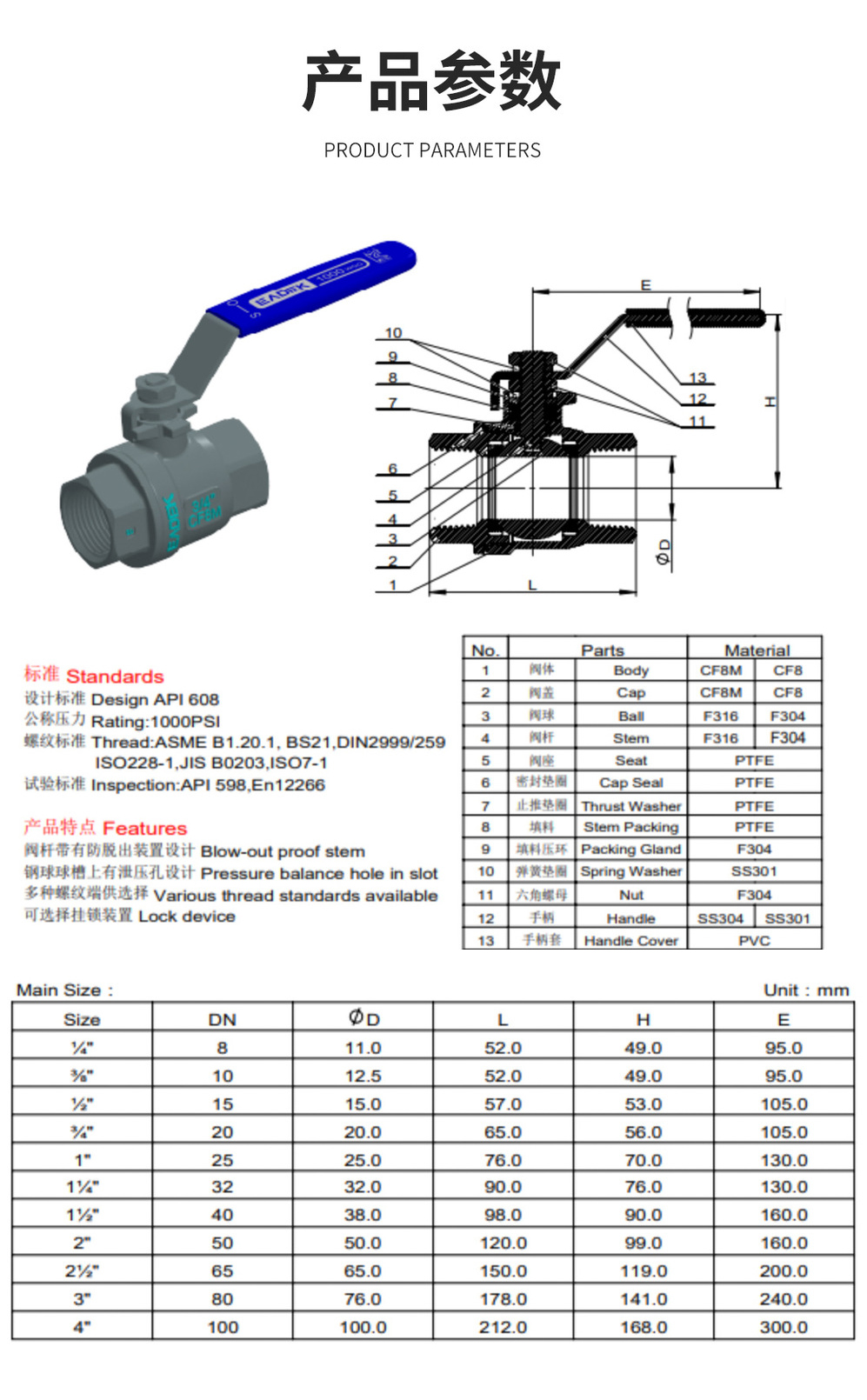

3.Technical parameter
3C Valve Category | industry | Structural form | stationary | Control mode | Regulatory type |
Applicable temperature | Room temperature -29 ~ 120 | Driving mode | Manual operation | Article No. (Article number) |
|
Applicable medium | Water | Valve body material | Stainless steel 304 | Structural form | two-piece |
4. Quality inspection equipment
Complete testing equipment to ensure product quality.
5.Packaging & Shipping
6. FAQ
What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
