## Product advantage
### 1. Complete channel design
- ** No reduction ** : The diameter of the channel between the ball and the pipe of the two-piece full-diameter ball valve is the same, and the design of non-reduction can provide the maximum flow rate and the minimum pressure drop.
- ** Reduced fluid resistance ** : The full-bore design reduces fluid resistance and energy consumption compared to conventional ball valves.
### 2. Good pressure resistance
- ** High-strength materials ** : Usually made of stainless steel, alloy steel and other high-strength materials, with excellent pressure resistance.
- ** High pressure environment adaptability ** : can withstand high pressure and high temperature, suitable for high pressure, high temperature and corrosive media control, to ensure stable operation under harsh conditions.
### 3. Wide range of applications
- ** Multi-media control ** : Suitable for gas, liquid and corrosive media control.
- ** Wide range of adjustment ** : Wide range of adjustable flow and pressure, suitable for chemical, petroleum, electric power, metallurgy and other industries and application scenarios.
- ** Industrial and Civil fields ** : Whether in industrial production or civil fields, the two-piece full-diameter ball valve has a wide range of application prospects.
## Application field
- ** Chemical industry ** : Used to control corrosive or high pressure media.
- ** Oil industry ** : Suitable for the transmission and distribution of oil and natural gas.
- ** Power industry ** : Fluid control for power stations.
- ** Metallurgy ** : Controlling fluids in high temperature and corrosive environments.
## Technical specifications
- ** Material selection ** : According to the medium characteristics and temperature requirements, select the appropriate material.
- ** Pressure rating ** : A variety of pressure ratings are available to meet different application requirements.
- ** Operation mode ** : Manual
Product Information

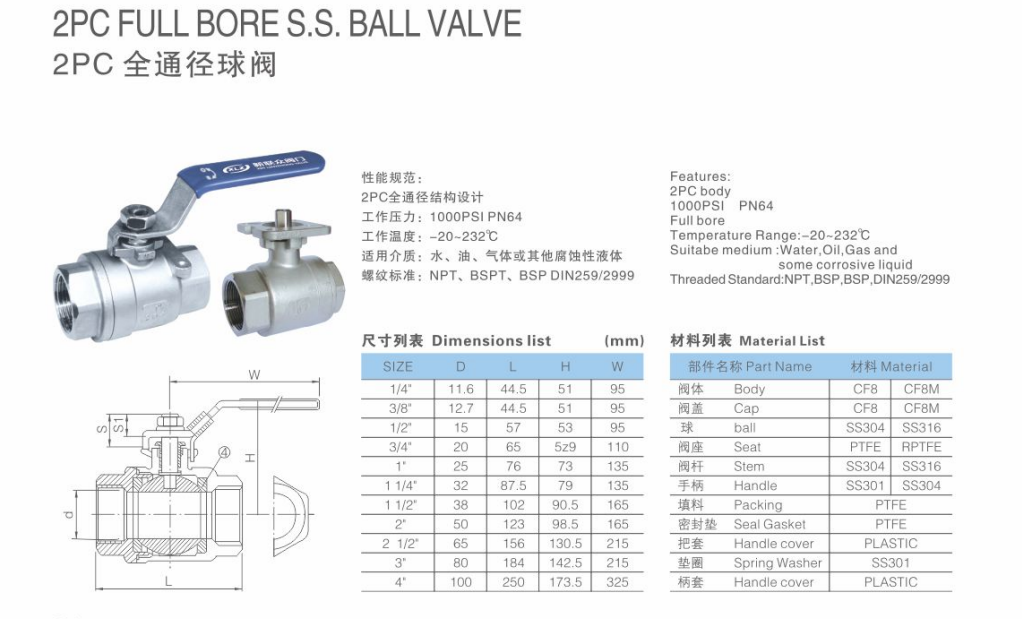

Technical Parameter
Media | Water | Material |
|
Connection Form | Clamp | Driving Mode |
|
Nominal Pressure | PN1.0-32.0MPa | Channel | Straight Through Type |
Structure | Floating Ball Valve | Type |
|
Function | Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve | Temperature | Normal Temperature |
Application | Industrial Usage, Water Industrial Usage, Household Usage | OEM | Yes |
Factory | Yes | MOQ | 1500 |
Customizable Trademark | Yes | Body Material |
|
Color |
| Transport Package |
|
Specification | 0.5kg to 1000kgs | Origin | ZheJiang,China |
Production Capacity | 10000000pieces/Year |
Application
Packaging & Shipping
 |  |  |
FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
