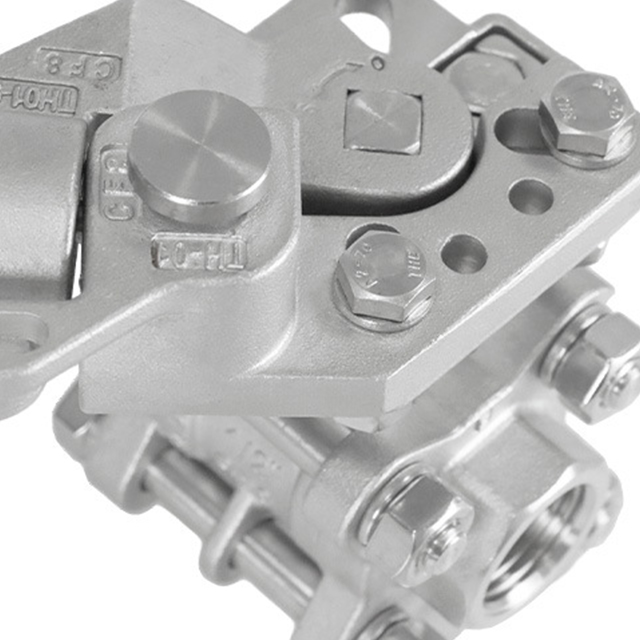

**Stainless Steel Three-Piece Ball Valve Product Overview:**
The stainless steel three-piece ball valve has emerged as a popular choice in fluid control systems, offering unique structural benefits and high performance in demanding environments. Here's a detailed look at its features and operation:
1. **Advantages**:
- The three-piece design minimizes friction during operation, ensuring a long-lasting, wear-resistant seal.
- It requires minimal torque to open or close, thanks to its 90-degree rotation mechanism.
2. **Widespread Usage**:
- Commonly utilized in the petroleum and chemical industries for precise flow control and cutting tasks.
- The closed state of the valve's sealing surfaces and sphere prevents media erosion.
3. **Operational Simplicity**:
- A simple 90-degree turn with a small torque is all it takes to achieve a tight seal.
4. **Working Principle**:
- **Opening**: The ball disengages from the seat as the valve stem is turned counterclockwise, allowing the ball to rotate freely without friction until fully open.
- **Closing**: Turning the handwheel clockwise rotates the ball away from the seat, and as the stem lowers, the ball is mechanically pressed against the seat to ensure a complete seal.
5. **Precision Engineering**:
- The valve's components, such as the valve stem's threads and the support for the level gauge, are designed for smooth operation and longevity.
6. **Integrity of Valve**:
- Regular disassembly and cleaning, if necessary, help maintain the valve's sealing integrity and prevent blockages.
7. **Technical Care**:
- Special attention should be given to the gear and worm gear parts to prevent dust accumulation that could affect operation.
Name | Nominal diameter | Body material | Nominal pressure | Applicable medium |

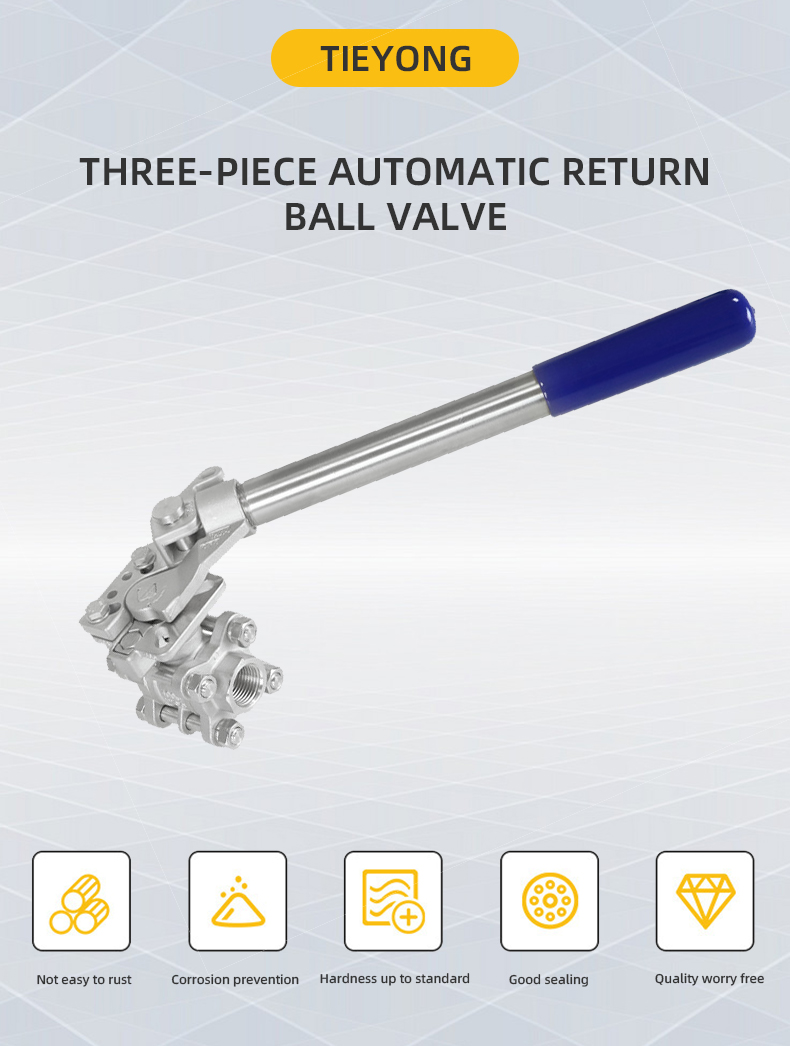

Three-piece automatic return ball valve | DN15-100 | Stainless steel 304 | PN16 | Water, oil, gas, etc |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements
2 Product Advantages
|
Exquisite workmanship Precision quality assurance full size control |
The real stuff The strong pressure of the thickened body makes the safety more secure |
|
|
Spherical center path Let the water flow more smoothly to ensure the water pressure. The strong pressure of the thickened body makes the safety more secure. |
Valve body The strong pressure of the thickened body makes the safety more secure |
|
3.Technical parameter
3C Valve Category | industry | Structural form | three-piece | Control mode | On-off type |
Applicable temperature | Low temperature -20°C-180°C | Driving mode | Manual operation | Valve body material | Stainless steel 304 |
Applicable medium | Water, oil, gas, etc |
4. Quality inspection equipment
Complete testing equipment to ensure product quality.
5.Packaging & Shipping
6. FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
