1. Product introduction
Carbon steel ball valve is an industrial valve, mainly used to control the flow of fluids. The following is a detailed description of the carbon steel ball valve:
### Structure composition
Carbon steel ball valve mainly consists of the following parts:
1. ** Valve body ** : connected with the pipe through the flange to form a fluid channel.
2. ** Valve seat ** : located inside the valve body for sealing fluid.
3. ** Stem ** (Stem) : Connect the stem and handle to transfer the operating force.
4. ** Ball ** : The ball is the core part of the ball valve, which controls the fluid through rotation.
5. ** Valve cover ** : Protect the internal structure and prevent external impurities from entering.
6. ** Ball sleeve ** : Fix the ball to ensure that it rotates under the drive of the valve stem.
7. ** Connector ** : Used to connect the valve body and other components.
8. ** Actuator ** (optional) : Electric or pneumatic actuator for remote control of the valve.
### Features
1. ** High temperature and corrosion resistance ** : carbon steel material has good high temperature and corrosion resistance, suitable for harsh environments.
2. ** Small flow resistance ** : The ball channel has the same diameter as the pipe, which reduces the flow resistance of the fluid.
### Application scenario
Carbon steel ball valve is widely used in the following fields:
- ** Oil and gas industry ** : Used to transport and control oil and gas.
- ** Chemical industry ** : Used to control the flow of corrosive chemicals.
- ** Thermal piping system ** : used to control the flow of high-temperature fluids.
- ** Municipal Engineering ** : For the control of water supply and drainage systems.
- ** Advantages ** :
- High temperature and good corrosion resistance.
- Low flow resistance, energy saving.
- Reliable sealing performance.
- Flexible operation and fast response.
- Compact, easy to install and maintain.
Name | Nominal diameter | Body material | Nominal pressure | Applicable medium |

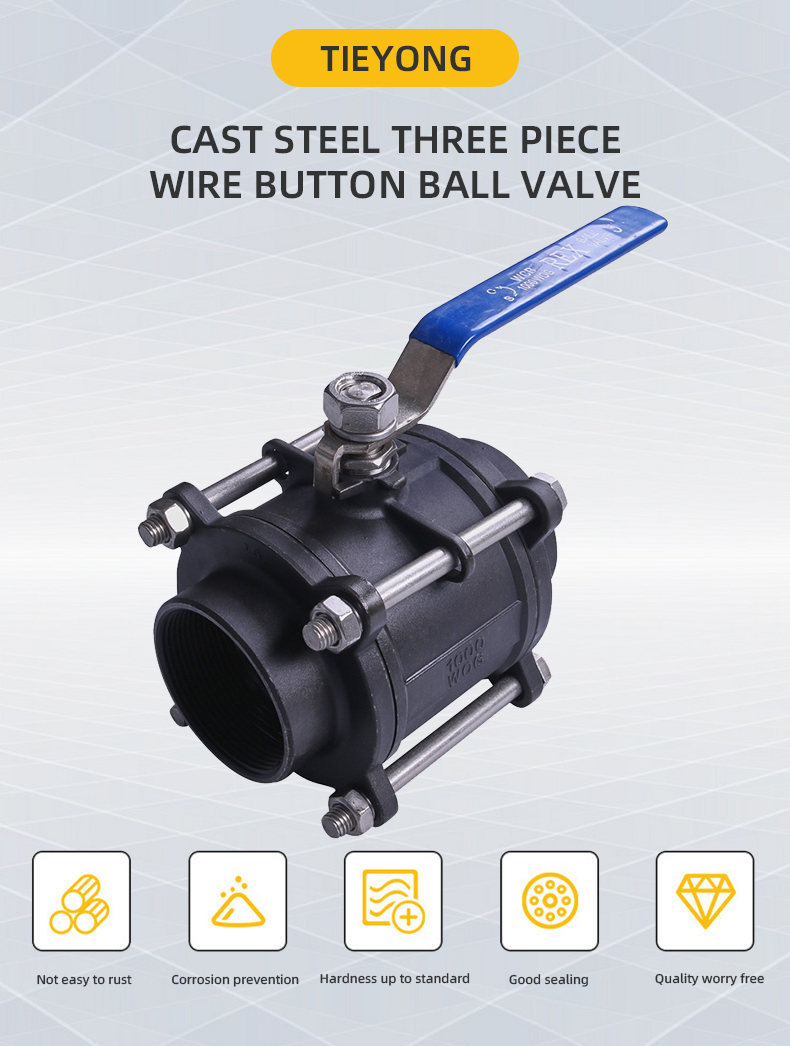

Cast steel three piece wire button ball valve | DN15-100 | Cast steel | PN16 | steam |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements
2 Product Advantages
|
Exquisite workmanship Precision quality assurance full size control |
The real stuff The strong pressure of the thickened body makes the safety more secure |
|
|
Spherical center path Let the water flow more smoothly to ensure the water pressure. The strong pressure of the thickened body makes the safety more secure. |
Valve body The strong pressure of the thickened body makes the safety more secure |
|
3.Technical parameter
3C Valve Category | industry | Structural form | three-piece | Control mode | On-off type |
Applicable temperature | 0°C-150°C | Driving mode | Manual operation | Applicable industry | food |
Applicable medium | steam | Valve body material | Stainless steel 304 |
4. Quality inspection equipment
Complete testing equipment to ensure product quality.
5.Packaging & Shipping
6. FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
