Product introduction

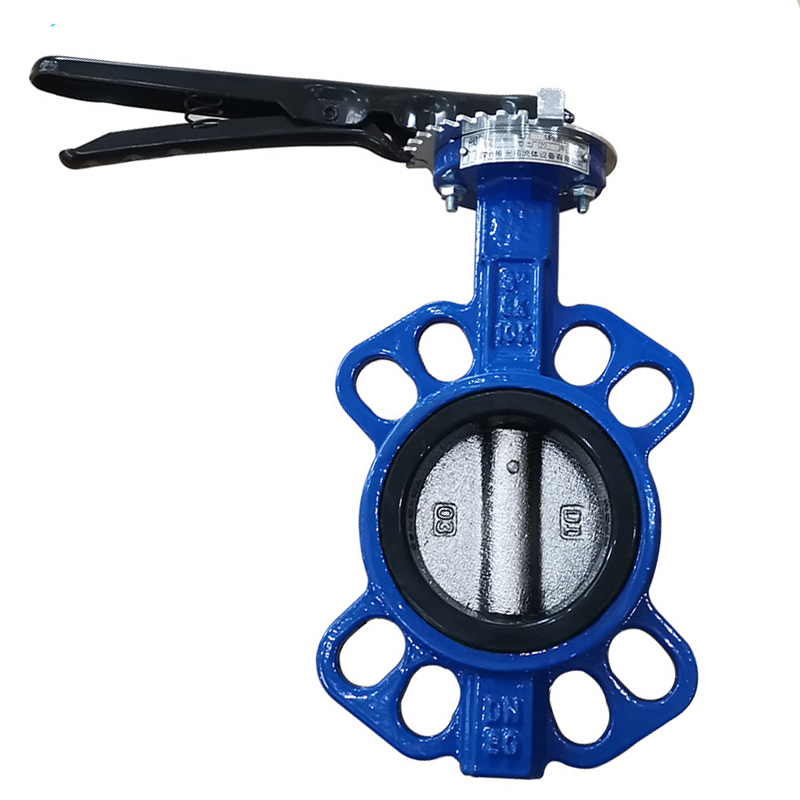

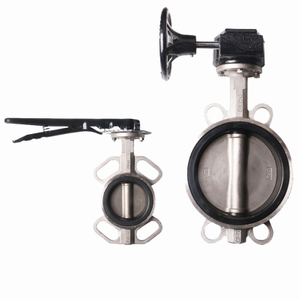

Handle clamp butterfly valve is a kind of valve widely used in industrial and civil pipeline systems, and is favored for its simple structure, easy operation and good sealing performance.
** Product Features: **
1. Novel structure, reasonable, light weight, fast opening and closing.
2. Small operating torque, easy operation, labor-saving dexterity.
3. Can be installed in any position, easy maintenance.
4. Completely sealed, zero gas test leakage.
5. The sealing material is resistant to aging, weak corrosion and long service life.
** Application field: **
The handle clamp cast iron butterfly valve is suitable for water supply and drainage, sewage, food, heating, gas, Marine, hydropower, metallurgy, energy system and textile industries, suitable for two-way sealing and valve body easy to rust field cooperation cut-off medium.
** Technical parameters: **
- Body material: ductile iron, cast steel, stainless steel, etc
- Butterfly plate: cast steel, stainless steel and special materials
- Sealing ring: all kinds of rubber, PTFE
- Stem: 2Cr13, stainless steel
- Packing: O-ring, flexible graphite
Name | Nominal diameter | Body material | Applicable medium | Model number |
DN50-1000 | Cast iron | Water, oil, air and other media | D71X-16Q |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements
Product Advantages
|
Fine material Layer by layer screening Source manufacturer |
Stable performance Valve body precision connection Strong pressure resistance Good sealing |
|
|
Durable Strong antioxidant capacity Humid environment Not easy to rust |
Thick valve body Reliable quality Firm seal Good performance |
|
Technical parameter
3C Valve Category | industry | Structural form | Vertical plate | Valve action | hydrophobic |
Connection form | Butt clamp | Driving mode | Manual operation | Mode of action | Double acting |
Applicable medium | Water | Valve body material | Nodular cast iron | Structural form | double-clip |
Lining materia | EPDM | Sealing material | rubber | Pressure environment | Atmospheric pressure |
Quality inspection equipment
Complete testing equipment to ensure product quality.
Packaging & Shipping
FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
