Product introduction
The handwheel-clamped cast iron butterfly valve is a crucial component in fluid control systems, celebrated for its uncomplicated construction, straightforward manipulation, and dependable sealing attributes.

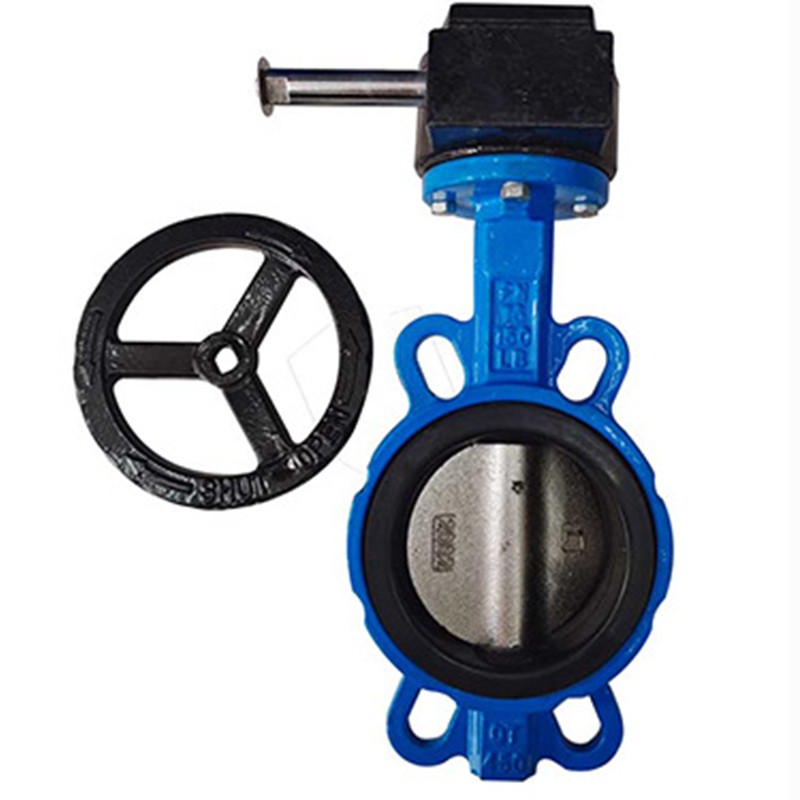

### Comprehensive Review of the Handwheel-Clamped Cast Iron Butterfly Valve
**Key Product Attributes:**
1. **Architectural Excellence:** The valve utilizes ductile iron QT450 for its body, recognized for its formidable strength and pliability, ensuring consistent functionality under significant pressure. The clamp-style body design allows for easy assembly and upkeep.
2. **Sealing Integrity:** It is fitted with superior rubber materials such as EPDM and NBR, ensuring optimal sealing and minimizing seepage during its operational phase.
3. **Ease of Manipulation:** The handwheel operation requires minimal effort, rendering it simple to initiate and cease valve movement, and is perfectly designed for manual operation scenarios.
4. **Resistance to Erosion:** The selection of materials for the valve body and seals enables it to manage a broad range of media, including water, effluent, foodstuffs, heating systems, and gases.
5. **Durability:** The synergy of high-quality materials and precise manufacturing processes guarantees the valve's endurance and reliability.
**Scope of Utilization:**
These cast iron butterfly valves are applicable in a variety of sectors, such as potable water and wastewater management, food processing, heating systems, gas distribution, shipbuilding, electricity generation, metalworking, and light manufacturing industries.
**Noteworthy Product Characteristics:**
- Crafted from ductile iron, the valve body exhibits remarkable tensile strength and malleability.
- The handwheel is designed with user comfort in mind, ensuring a smooth and manageable operational experience.
This handwheel-clamped cast iron butterfly valve exemplifies the pinnacle of quality and performance in fluid control mechanisms, guaranteeing smooth operation and a prolonged service life.
Name | Nominal diameter | Body material | Applicable medium |
DN40-300 | Nodular cast iron | Water, oil, air and other media |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements
Product Advantages
|
Ductile iron material Cost-effective and durable |
Epdm sleeve Good sealing |
|
|
Design and construction Novel structure Strong pressure resistance Easy to operate |

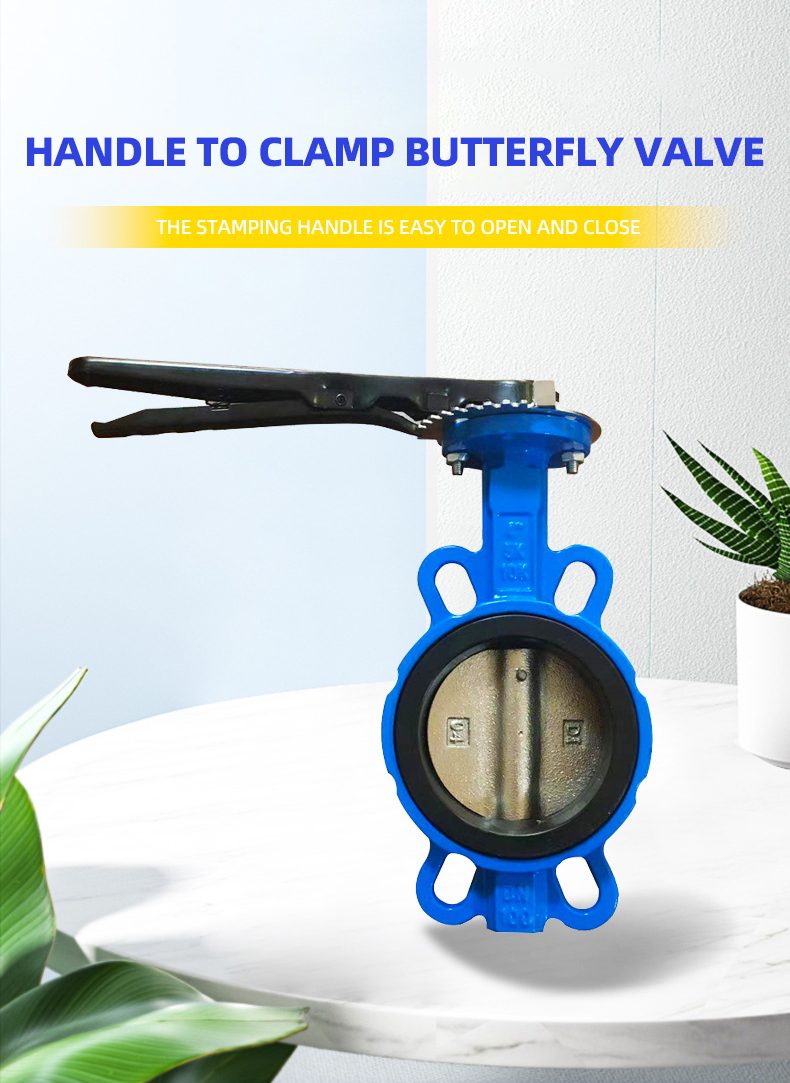

High cost performance The stamping handle is neat and beautiful |
|
Technical parameter
3C Valve Category | industry | Structural form | double-clip | Control mode | Regulatory type |
Connection form | Butt clamp | Driving mode | Manual operation | Mode of action | Worm gear drive |
Applicable medium | Water | Valve body material | Nodular cast iron | Structural form | double-clip |
Lining materia | EPDM | Sealing material | epDM | Pressure environment | Atmospheric pressure |
Applicable industry | Chemical, fire, coal, petroleum, electricity, environmental water treatment, paper, other, petrochemical, metallurgy, kiln, water conservancy, machinery, construction, water systems, industry, Marine |
Quality inspection equipment
Complete testing equipment to ensure product quality.
Packaging & Shipping
FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
