When it comes to the smooth operation of plumbing systems or industrial fluid control, ball valves play a crucial role. Specifically, two-piece ball valves are widely used for their simple design and robust functionality. This article will explore the flow direction of ball valves, focusing on two-piece ball valves. We will also delve into various aspects of their installation, orientation, and functionality.
Ball valves are designed to regulate the flow of liquids or gases by rotating a ball with a hole in the center. While their primary function is simple, understanding whether they have a specific flow direction is essential. Not all ball valves are the same; their flow direction depends on their design and purpose.
Correct installation of a ball valve ensures optimal performance, safety, and longevity. If installed incorrectly:
Leakage may occur due to improper sealing.
Flow efficiency could be compromised.
Damage to internal components may happen, especially under high pressure.
Proper installation aligns the valve’s flow path with the system’s intended flow direction.
Some ball valves are designed to be multidirectional, allowing flow in multiple directions. However, this capability depends on the type of ball valve:
Unidirectional Ball Valves: Designed for flow in a single direction.
Bidirectional Ball Valves: Allow flow in both directions.
A unidirectional ball valve comes with an arrow or marking to indicate the correct flow direction. These valves often include a spring-loaded seat, creating a tight seal in one direction but not the other. Applications include systems where backflow must be prevented.
Bidirectional ball valves permit fluid or gas to flow in both directions. These valves typically have seats on both sides of the ball, providing a seal regardless of the flow direction. Their versatility makes them ideal for many applications, from plumbing to industrial systems.
Yes, even for bidirectional valves, orienting the ball valve correctly ensures proper operation. Manufacturers often provide installation guidelines to help align the valve with the system’s flow.
To identify the flow direction for a ball valve:
Look for markings such as arrows on the valve body.
Refer to the manufacturer’s documentation.
Check the design: unidirectional valves typically have a clear inlet and outlet side.
The position of the ball valve handle determines whether it is open or closed. Let’s break it down further:
Typically, turning the handle parallel to the pipeline opens the valve, allowing unrestricted flow through the system.
Turning the handle perpendicular to the pipeline closes the valve, halting flow completely. This clear on/off mechanism is one of the key advantages of ball valves.

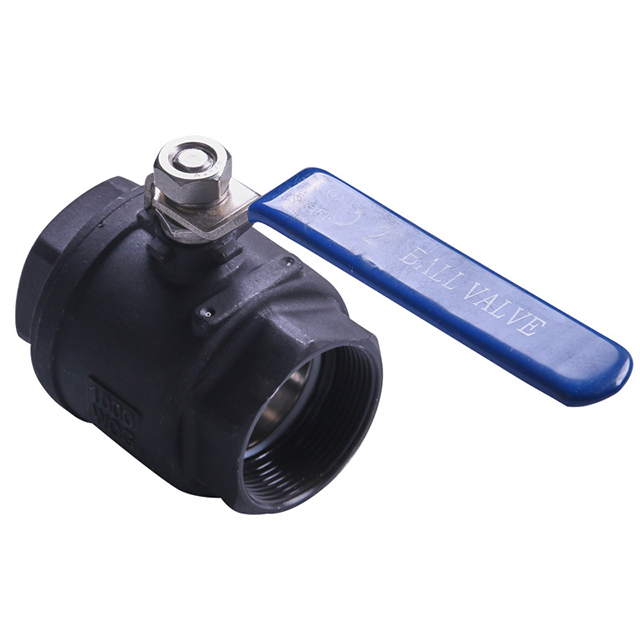

The two-piece ball valve, consisting of two interconnected components, is highly popular due to its simple design and ease of maintenance. Understanding its flow direction is critical for effective use.
The arrow on a ball valve indicates the intended flow direction. For unidirectional valves, aligning the arrow with the system’s flow ensures proper function. For bidirectional valves, the arrow may signify preferred installation but isn’t mandatory.
Yes, a ball valve can be partially opened to regulate flow. However, prolonged operation in a partially open position may cause wear on the valve’s seats, reducing its lifespan.
Two-piece ball valves can be installed vertically or horizontally, depending on the application. However, for optimal performance:
Avoid positions where debris may settle inside the valve.
Ensure the handle is accessible for operation.
Yes, the handle of a ball valve can be replaced if damaged or for customization. Always ensure compatibility with the valve model and size.
Understanding flow direction is crucial for various types of valves. Let’s explore how this applies to different valve types.
Valves like check valves, globe valves, and unidirectional ball valves have a defined flow direction. Others, like bidirectional ball valves, allow flow in either direction.
Control valves direct flow based on their design:
In this configuration, fluid pressure assists in opening the valve.
Here, fluid pressure helps in closing the valve, providing tighter sealing under high-pressure conditions.
Ball valves, particularly two-piece designs, are versatile and effective for fluid control. Proper installation and orientation ensure optimal performance and durability. Bidirectional designs offer flexibility, while unidirectional valves provide precise control in systems requiring a specific flow direction.
Are Ball Valves Unidirectional or Bidirectional?
Ball valves can be either unidirectional or bidirectional, depending on their design and application.
How Does a 2 Way Ball Valve Work?
A two-way ball valve has two ports: an inlet and an outlet. Rotating the handle aligns the ball’s opening with the ports to allow or block flow.
What Is the Difference Between a 2 Piece and 3 Piece Ball Valve?
2 Piece Ball Valve: Composed of two main body components, it is compact and cost-effective but less accessible for internal repairs.
3 Piece Ball Valve: Features three body sections, allowing easy disassembly for cleaning and maintenance.
What Is the Flow Direction of a 3 Way Ball Valve?
A three-way ball valve allows flow in multiple configurations, such as T-port or L-port, directing flow to one or more outlets as required.
