What Is The Difference between A Two Way Ball Valve And Three Way Ball Valve?

Views: 0     Author: Site Editor     Publish Time: 2025-02-21      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Overview of Ball Valves

A ball valve is a type of valve that controls the flow of liquids or gases by using a ball with a hole through it. The ball is rotated inside the valve to either block or allow the flow of the medium. Two way ball valves are used to control the flow between two ports, while three way ball valves can divert or combine flows by allowing fluid to pass through three ports. Ball valves are known for their durability, reliability, and simplicity, which is why they are widely used in a variety of applications.


Importance of Ball Valves in Fluid Control Systems

Ball valves are essential components in fluid control systems across industries. Their ability to provide quick and precise control of fluid flow makes them ideal for a wide range of applications, from water and gas distribution to chemical processing and industrial machinery. Both two way ball valves and three way ball valves are essential for different scenarios, each providing unique benefits depending on the complexity of the system.


What is a Two Way Ball Valve?


Definition and Basic Operation of a Two Way Ball Valve

A two way ball valve is a simple valve with two ports that regulates the flow of fluids by rotating a ball with a hole through its center. The ball's orientation determines whether the valve is open or closed. When the ball aligns with the flow path, fluid can pass through, and when the ball rotates 90 degrees to block the path, the flow is stopped. These valves are highly effective for regulating flow in simple systems, where only an open or closed state is needed.


Applications of Two Way Ball Valves

Two way ball valves are commonly used in various applications, including:

Residential plumbing: For controlling the flow of water to faucets, toilets, and appliances.

Industrial pipelines: To control the flow of gases, oils, or chemicals in manufacturing plants.

HVAC systems: Regulating the flow of hot or cold water in heating and cooling systems.

Water treatment: To control the flow of water in filtration systems.


Common Types of Two Way Ball Valves

Stainless steel two way ball valves: These are highly durable and resistant to corrosion, making them ideal for harsh environments.

High pressure two way ball valves: Designed to withstand high-pressure systems, often used in industrial applications.

1/8 inch brass two way ball valves: Commonly used in smaller systems like residential plumbing.

Acetal two way ball valves: Suitable for use in low-pressure and corrosive environments due to their excellent chemical resistance.

CE certification two way ball valves: These valves meet European safety standards, ensuring reliability and compliance for various applications.


What is a Three Way Ball Valve?


Definition and Basic Operation of a Three Way Ball Valve

A three way ball valve has three ports, allowing it to manage more complex fluid flow requirements. It can divert flow from one source to two outputs, or combine two sources into one output. The internal ball of the valve has multiple holes, enabling this flow redirection or mixing. Depending on the position of the ball, the valve either connects different ports for diversion or provides a mixing path for combined fluids.


Applications of Three Way Ball Valves

Three way ball valves are used in systems that require flow redirection or mixing, such as:

Heating and cooling systems: For mixing hot and cold fluids in HVAC applications.

Chemical processing: To divert or combine chemical flows within reactors or pipelines.

Water treatment plants: For directing flow through different filtration or treatment stages.

Industrial fluid control systems: To distribute or combine fluids for efficient processing.


Common Types of Three Way Ball Valves

Three way ball valves come in different designs:

T-type three way ball valves: Used for mixing or diverting flow between multiple pipes.

L-type three way ball valves: Diverts fluid flow between two pipes, making them suitable for simple redirection applications.


Key Differences Between a Two Way and Three Way Ball Valve


Structure and Design Differences

The most obvious difference between the two way ball valve and the three way ball valve is the number of ports. A two way ball valve has two ports, typically one inlet and one outlet, which makes it ideal for simple on-off flow control. A three way ball valve, on the other hand, has three ports, which allows for more complex flow patterns, such as mixing or diverting fluid.


Functionality Differences

The two way ball valve operates by rotating the ball 90 degrees to either allow or block flow. In comparison, a three way ball valve operates with more flexibility. It can either mix two incoming flows into one output or divert one incoming flow into two outputs. This added functionality makes three way ball valves more versatile for complex fluid control systems.


Flow Control Differences

Two way ball valves are designed for simpler applications where the flow needs to be fully open or closed. Three way ball valves, however, can control the flow in multiple directions, providing greater flexibility in applications requiring the diversion or mixing of fluids. The ability to control multiple flow paths simultaneously makes three way ball valves more suitable for complex systems.


Valve Actuation and Applications

Two way ball valves are commonly manually operated but can also be actuated by electric or pneumatic devices. In contrast, three way ball valves often require more specialized actuators to control the complex movement of the ball. Their applications tend to be more diverse, including systems that require fluid diversion or mixing, such as HVAC, chemical processing, or industrial fluid control.


Pros and Cons of Two Way Ball Valves


Advantages of Two Way Ball Valves

Simplicity: With only two ports, the two way ball valve is easier to design, install, and maintain.

Cost-effectiveness: Due to their simple design, two way ball valves are often more affordable compared to three way ball valves.

Reliability: Two way ball valves are highly durable and dependable, suitable for a wide range of industries.

Versatility: They can be used in various applications from plumbing to industrial fluid systems.


Disadvantages of Two Way Ball Valves

Limited functionality: Unlike three way ball valves, two way ball valves can only control flow in one direction, limiting their use in more complex systems.

Size limitations: In some cases, two way ball valves might not be suitable for larger, more complex fluid systems that require multiple control points.

Pros and Cons of Three Way Ball Valves


Advantages of Three Way Ball Valves

Flexibility: The ability to divert or combine flows makes three way ball valves ideal for complex systems.

Multiple Applications: Used in a variety of industries including chemical, industrial, and HVAC systems.

Enhanced flow control: These valves provide better control over fluid flow, allowing for more advanced configurations in piping systems.


Disadvantages of Three Way Ball Valves

Complexity: Three way ball valves are more complex in design and require more maintenance.

Higher cost: Due to their more intricate design and capabilities, three way ball valves tend to be more expensive than two way ball valves.

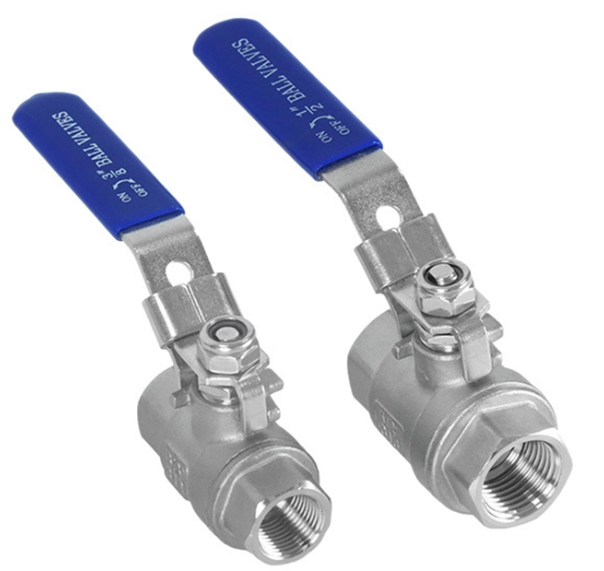

two way ball valve


When to Use a Two Way Ball Valve vs. a Three Way Ball Valve


Choosing the Right Valve for Specific Applications

When choosing between a two way ball valve and a three way ball valve, consider the complexity of the fluid control system. Use a two way ball valve for straightforward applications that require on-off flow control. Opt for a three way ball valve when your system requires mixing or diverting fluids, such as in heating and cooling applications, or complex chemical processing systems.


Decision Factors: Flow Control, Space, and Complexity

Consider the following factors when making your decision:

Flow Control: For simple open or closed flow, a two way ball valve is sufficient. If you need to redirect or combine flows, a three way ball valve is necessary.

Space Constraints: Two way ball valves are often more compact, while three way ball valves may require more space due to their additional port.

System Complexity: If your system involves more intricate flow patterns or requires mixing or diverting, a three way ball valve would be a better choice.


Conclusion


Summary of Key Differences Between Two Way and Three Way Ball Valves

In summary, the key differences between two way ball valves and three way ball valves lie in their design, functionality, and applications. Two way ball valves are best suited for simple flow control, while three way ball valves offer versatility for more complex systems that require mixing or diverting flows.


Final Thoughts on Choosing the Right Valve for Your Needs

Choosing the right valve for your system depends on factors such as the complexity of flow control, space constraints, and the specific requirements of the application. Understanding the differences between two way ball valves and three way ball valves will help you make an informed decision for your fluid control needs. Whether you opt for a stainless steel two way ball valve, a high pressure two way ball valve, or a CE certification two way ball valve, each has its own advantages depending on the application.
