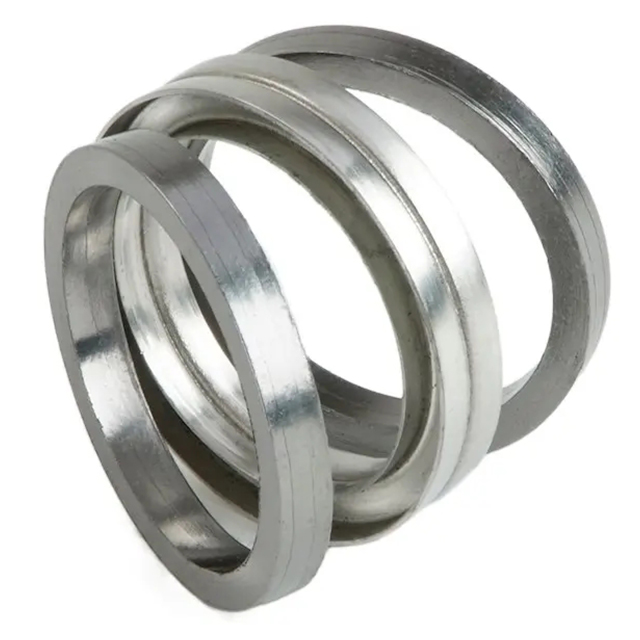

Product Introduction
Stainless steel flange seal is a kind of seal for stainless steel flange connection, it is usually made of stainless steel material. Used to fill the gap of the flange connection to ensure the sealing performance of the connection.
Advantage
Stainless steel flange gaskets have the following advantages:
1. Corrosion resistance: Stainless steel flange gaskets are made of stainless steel material and have excellent corrosion resistance. They can resist the corrosion of various chemicals, including acids, alkalis, salts, etc., and maintain good sealing performance in various harsh environments.
2. High temperature resistance: Stainless steel flange gaskets can withstand high temperature working environments and have good heat resistance. They can maintain stable sealing performance at high temperatures without deformation or damage due to temperature changes.
3. Pressure resistance: Stainless steel flange gaskets have high pressure resistance and can withstand high pressures. They can maintain good sealing performance in high-pressure environments and prevent leakage of liquids or gases.
4. Good elasticity: Stainless steel flange gaskets have good elasticity and can adapt to flange connections of different shapes and sizes. They can undergo certain deformation under the pressure of flange connections, thereby achieving effective sealing.
5. Long lifespan: Stainless steel flange gaskets have a long service life and can maintain good sealing performance during long-term use. They are not easily affected by external environments, aging, or damage, and can work stably for a long time.
6. Safety and reliability: Stainless steel flange gaskets can provide reliable sealing performance and prevent leakage of liquids or gases. They can ensure the safety of flange connections, reduce accidents, and protect the safety of equipment and personnel.
In summary, stainless steel flange gaskets have advantages such as corrosion resistance, high temperature resistance, pressure resistance, good elasticity, long lifespan, and safety and reliability. They are ideal sealing components and are widely used in pipeline connections in industries such as chemical, petroleum, pharmaceutical, and food.

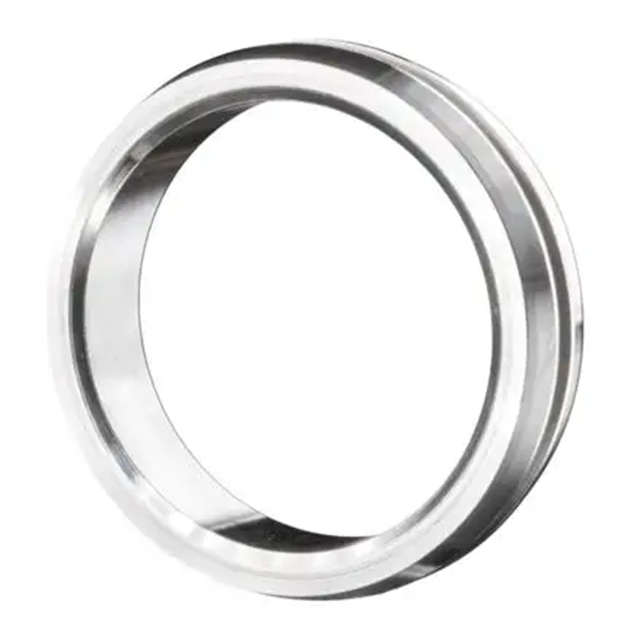

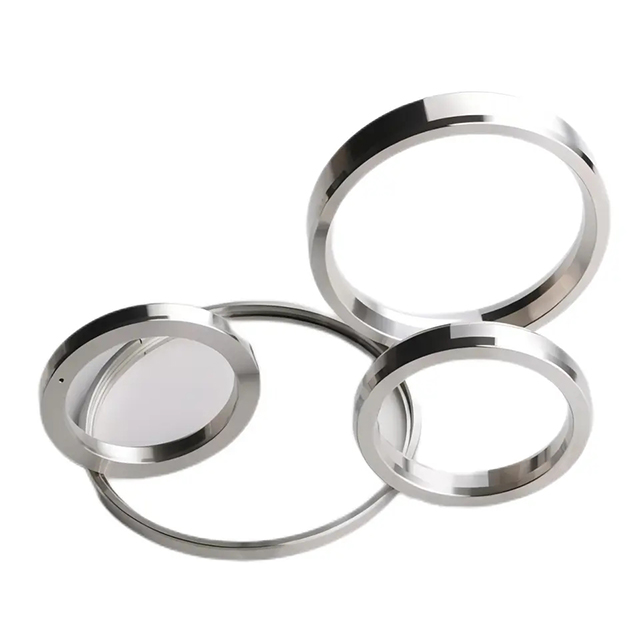

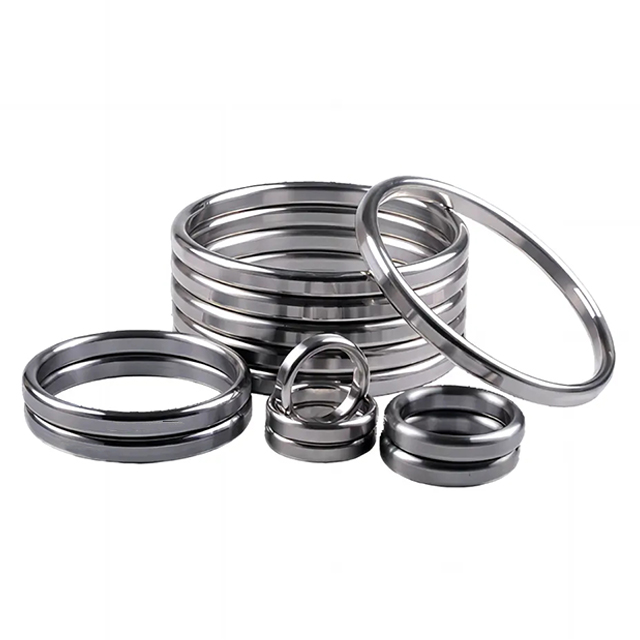

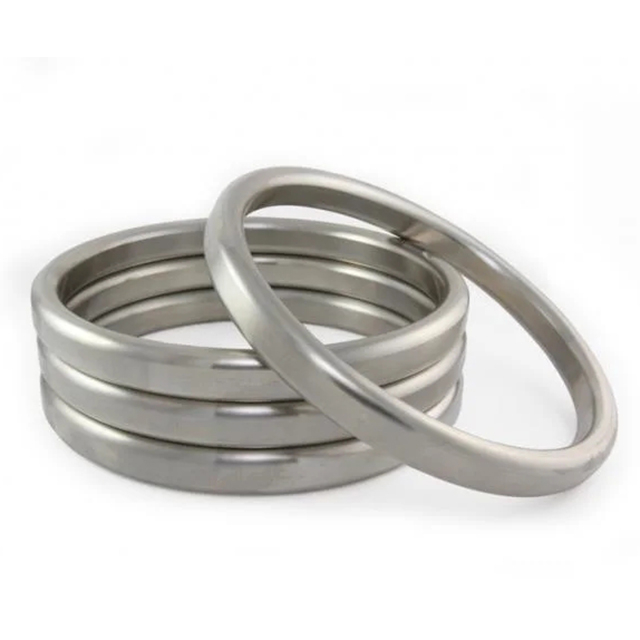

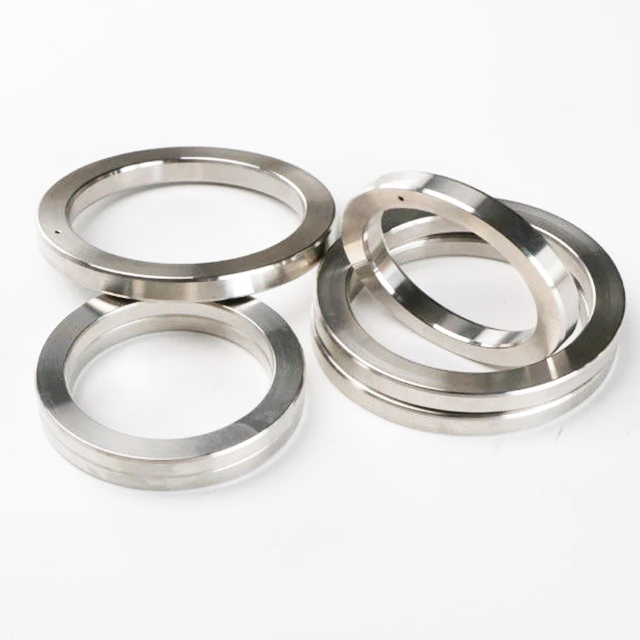

Other Product Images
 |  |
Technical Parameter
No. | Specification of Mechanical Seal | Type of the Lip | Coupling Sleeve | Model of the Machine |
InnerΦ *OuterΦ*H (mm) | InnerΦ *OuterΦ*H (mm) | |||
1 | 37*51*10 | Double | 30*37*38 | 15HP2901056100 |
2 | 40*62*8 | Double | 35*40*20 | 15HP B60 |
3 | 40*62*8 | Single | 20-30HP B101 | |
4 | 50*72*8 | Double | 45*50*25 | 50HP B170 |
5 | 70*90*10 | Double | 60*70*40 | 75HP B201 |
6 | 70*90*10 | Double | 60*70*40 | 75HP |
7 | 70*90*10 | Single | 75HP | |
8 | 35*50*8 | Single | 30*35*30 | CF50G |
9 | 35*50*12 | Double | 30*35*30 | 15-20HP CE55 |
10 | 35*47*7 | Single | ||
11 | 45*65*12 | Double | 40*45*30 | 70 Handpiece(QS70) |
12 | 45*60*8 | Single | ||
13 | 68*100*12 | Double | 60*68*45 | 100HP(CF110/CF128J) |
14 | 68*90*10 | Single | ||
15 | 68*90*10 | Double | 60*68*45 | 100HP(CF128LG) |
16 | 60*80*8 | Single | 50*60*40 | 30HP |
17 | 60*80*8 | Double | 50*60*40 | |
18 | 65*90*10 | Single | 55*65*45 | 50HP |
19 | 65*90*10 | Double | 55*65*45 |

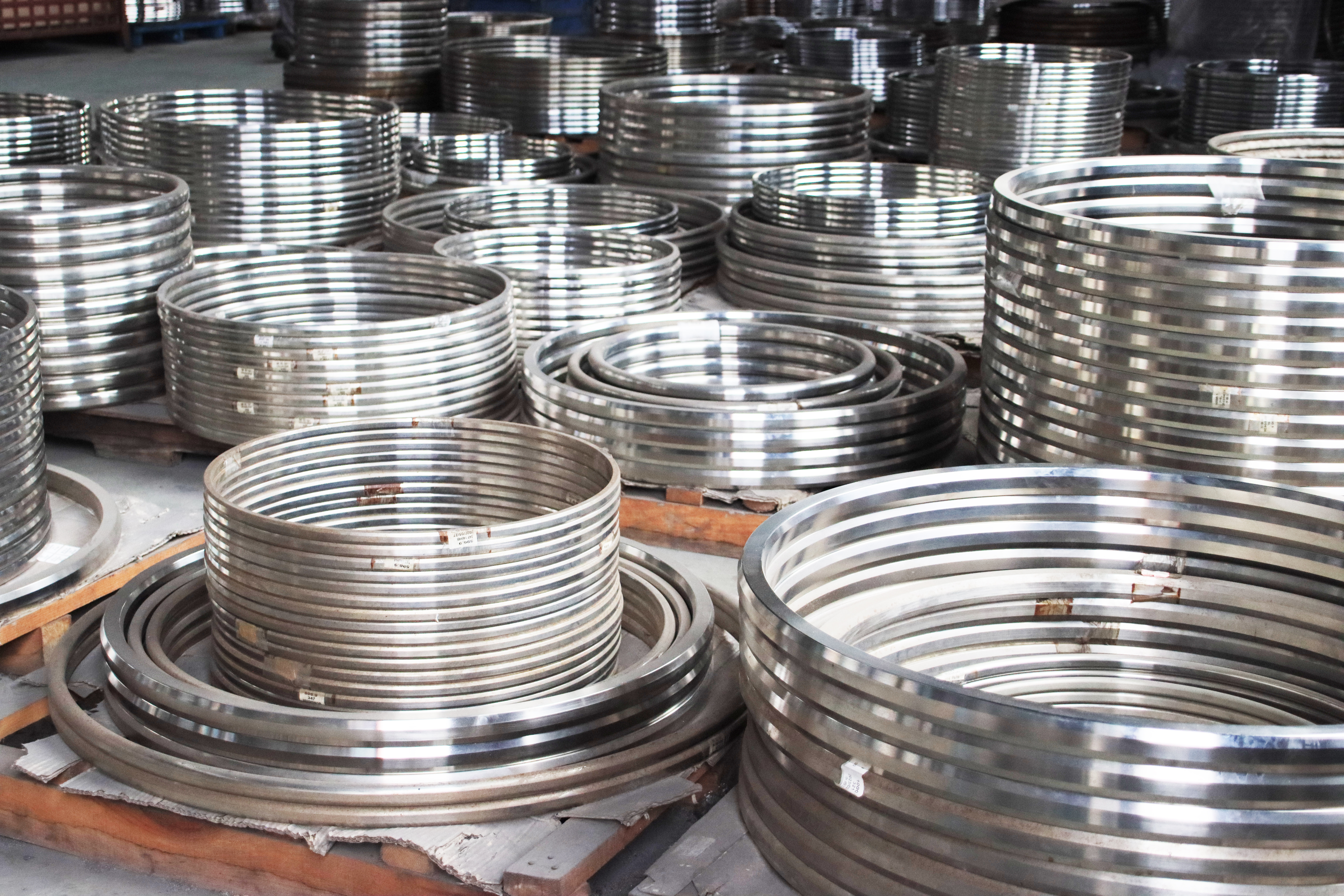

Packaging & Shipping
 |  |  |
FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
