Product introduction

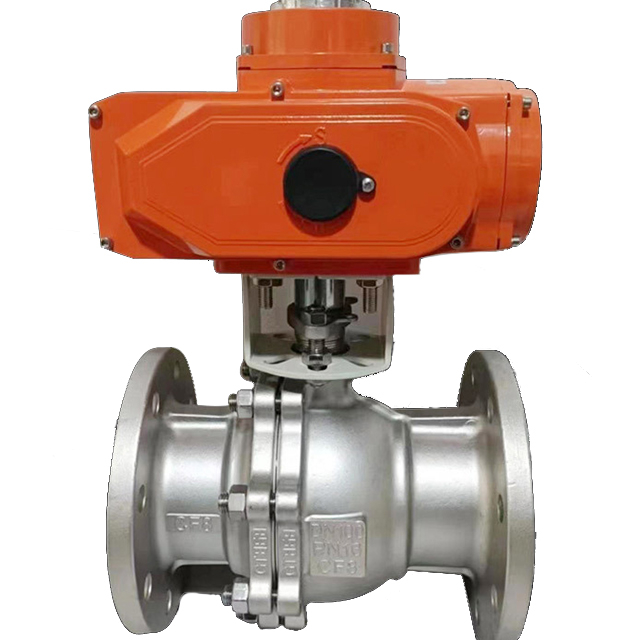

Electric flanged ball valves: ideal for efficient fluid control
I. Introduction
Electric flange ball valve is a valve that uses an electric actuator to drive the ball to rotate, and controls the fluid through the rotation of the ball.
Compared with the traditional manual flanged ball valve, the electric flanged ball valve has the advantages of high automation, simple operation and high control accuracy, so it is widely used in industrial production, urban water supply, petrochemical and other fields.
This paper will deeply discuss the working principle, advantages and application scenarios of electric flanged ball valve.
Second, the working principle
1. Structure composition
Electric flange ball valve is mainly composed of electric actuator, valve body, ball and connecting flange.
The electric actuator is the part that drives the ball to rotate, usually using a combination of an electric motor and a gearbox.
The valve body is the main part of the ball valve and is connected to the piping system through a flange.
The ball is the key component of the valve, which is rotated to achieve fluid control.
2. Work process
When the electric actuator receives the control signal, the motor starts to run, and the rotating torque is transmitted to the ball through the gear box.
The ball rotates under the drive of the motor, thus changing the on-off state of the fluid in the valve.
When the ball is fully fitted to the seat, the valve is closed; When the ball is separated from the seat, the valve is open.
By controlling the rotation Angle of the electric actuator, the valve can be controlled.
Iii. Advantages
1. High degree of automation
Compared to manual flanged ball valves, electric flanged ball valves have a higher degree of automation.
Only through the control signal, the valve can be opened and closed without manual intervention, which greatly improves the work efficiency.
2. Easy to operate
Electric flange ball valve operation is simple, only through the switch, button and other means to send the control signal, you can realize the remote control of the valve.
The operator does not need to go to the site to operate, and can be controlled in a safe position.
3. High control precision
The electric flange ball valve has high control accuracy and can be adjusted according to actual needs.
By controlling the rotation Angle of the electric actuator, the fluid can be controlled to meet the requirements of different processes.
Iv. Application scenarios
1. Industrial production
Electric flanged ball valve is widely used in industrial production field.
For example, in chemical production, electric flanged ball valves can realize the control of different media to ensure the stability and safety of the production process; In the field of petrochemical industry, the electric flange ball valve can realize the automatic control of the pipeline system and improve production efficiency.
2. Urban water supply
Electric flanged ball valves have also been widely used in the field of urban water supply.
Through the remote control of the electric flange ball valve in the water supply pipeline, the control of water supply can be realized, and the stability and safety of water supply.
3. Sewage treatment
In the field of sewage treatment, the electric flange ball valve can realize the automatic control of sewage pipes.
Name | Nominal diameter | Body material |
Electric flange ball valve Q941F 16P | DN15-200 | Ball mill cast iron 304 |
Product Advantages
|
Valve body Selected quality steel Burr free surface smooth and strong tension |
Internals The wall thickness is uniform and the real material has high hardness |
|
Technical parameter
3C Valve Category | industry | Structural form | Straight-through type | Control mode | On-off type |
Applicable temperature | Room temperature -29 ~ 120 | Driving mode | power-driven | Connection form | Screw thread |
Applicable medium | Water vapor oil products | Applicable industry | Food, mining, coal, water conservancy, medicine, water heating |
Quality inspection equipment
Complete testing equipment to ensure product quality.
Packaging & Shipping
FAQ
1.What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
