1. Product introduction
Name | Nominal diameter | Body material | Nominal pressure | Applicable medium |
DN10-100 | Stainless steel 304 | PN16 | air |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements

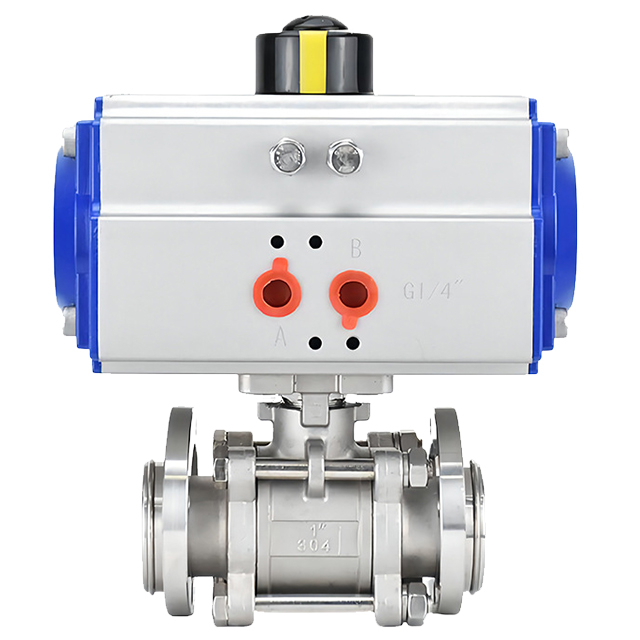

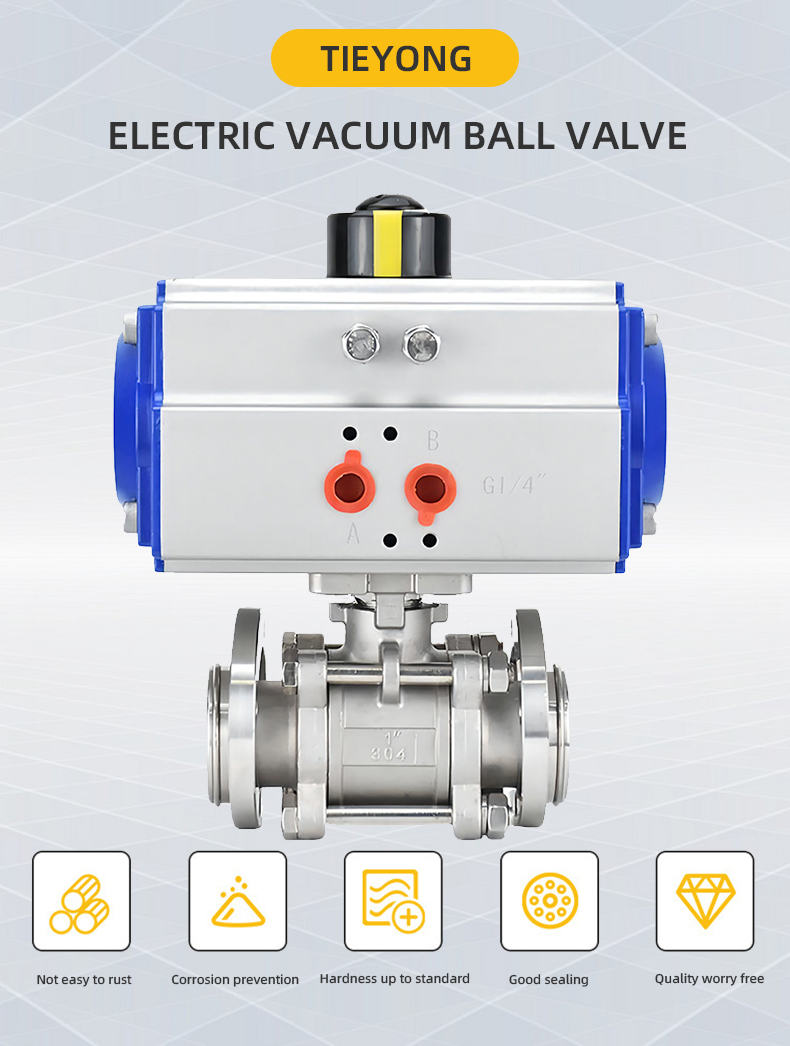

GUQ pneumatic high vacuum ball valve is to change the direction of the air path through the electromagnetic reversing valve, and control the execution cylinder to drive the ball valve to connect or cut off the medium flow in the vacuum (pressure) system pipe road. Used in vacuum, dairy products, wine industry, bioengineering, food, pharmaceutical, beverage, cosmetics and chemical fields. Optional feedback signal device and electrical valve positioner.
1. The electric valve is the solenoid valve, which is to use the magnetic field generated by the electromagnetic coil to pull the valve spool to change the valve body on and off, the coil power off, the valve spool depends on the pressure of the spring. Solenoid valve is used to control the automatic basic components of the fluid, belongs to the actuator is not limited to hydraulic, pneumatic. The solenoid valve is used to control the direction of hydraulic flow, and the mechanical devices in the factory are generally controlled by hydraulic steel, so the solenoid valve will be used.
Solenoid valve working principle, solenoid valve has a closed chamber, in different positions open through the hole, each hole leads to a different tubing, the middle of the chamber is the valve, both sides are two electromagnets, which side of the magnet coil energized valve body will be attracted to which side, by controlling the movement of the valve body to block or leak different oil discharge holes, and the oil inlet hole is usually open, The hydraulic oil will enter a different discharge pipe, and then through the pressure of the oil to promote the oil just live cold, live cold and drive the live cold rod, the piston rod drives the mechanical device. In this way, mechanical motion is controlled by controlling the current of the electromagnet.
2. Reliability
Solenoid valve is divided into normally closed and normally open two kinds; Generally choose normally closed type, power on, power off; But when the opening time is very long and the closing time is very short, the normally open type should be selected.
Life test, the factory generally belongs to the type test project, to be exact, there is no professional standard of solenoid valve in our country, so the selection of solenoid valve manufacturers should be careful
When the action time is very short and the frequency is high, the direct action type is generally selected, and the large caliber is fast
Series.
3. Security
General solenoid valve is not waterproof, when the conditions do not allow, please choose waterproof type, the factory can be customized.
The maximum nominal pressure of the solenoid valve must exceed the maximum pressure in the pipeline, otherwise the service life will be shortened or other accidents will occur.
Corrosive liquids should be selected all stainless steel type, strong corrosive fluids should be selected plastic king (SLF) solenoid valve.
2 Product Advantages
|
STRONG POWER
Strong power and low voltage balance operation,long service life of all copper coil, imported bearing/high power/low energy consumption |
The real stuff The strong pressure of the thickened body makes the safety more secure |
|
|
Spherical center path Let the water flow more smoothly to ensure the water pressure. The strong pressure of the thickened body makes the safety more secure. |
Valve body thickened seal against leakage 304 stainless steel thickened valve body has good corrosion resistance, high hardness, good toughness, high pressure resistance and long service life |
|
3.Technical parameter
3C Valve Category | industry | Structural form | three-piece | Control mode | On-off type |
Applicable temperature | 0°C~150°C | Driving mode | power-driven | Valve body material | Stainless steel 304 |
Applicable medium | air |
4. Quality inspection equipment
Complete testing equipment to ensure product quality.
5.Packaging & Shipping
6. FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
