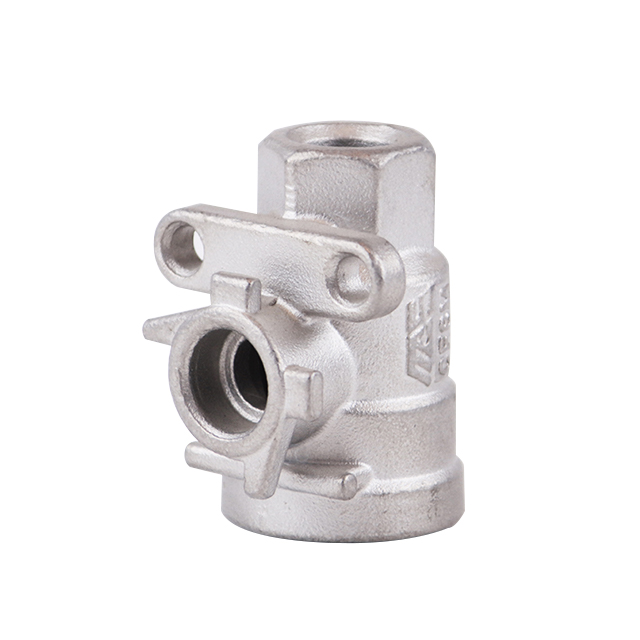

Product Introduction
The disc ball valve is comprised of two half spheres connected by a stem, which enables control over the valve's opening and closing. In comparison to traditional ball valves, disc ball valves have a simpler structure, making them easier to disassemble and maintain.
Advantage
The disc ball valve is a specialized type of ball valve that offers several advantages:
1. Swift switching: The disc can be quickly rotated 90 degrees, allowing for rapid opening or closing of the valve. This is particularly beneficial in applications that require fast switching.
2. Reduced operating torque: The segmented structure of the disc disperses the stem push tension, resulting in lower operating torque. This reduces the force required for operation.
3. Excellent sealing performance: The disc forms a reliable seal with the valve seat, ensuring high-quality sealing and preventing leakage of both liquid and gas media.
4. Enhanced corrosion resistance: Disc ball valves are commonly constructed from corrosion-resistant materials like stainless steel and copper alloys. This enables them to withstand various corrosive media, making them widely used in chemical, petroleum, and other industries.
5. High flow capacity: The flow channel between the disc and the seat is designed to be smooth, allowing for a large flow area and high flow capacity.
6. Reliable operation: Disc ball valves have a simple structure, long service life, and high reliability. They can operate stably and withstand significant pressure and temperature changes, minimizing the likelihood of malfunctions.
7. Easy maintenance: The disc and seat of the disc ball valve can be easily disassembled and replaced, facilitating maintenance and repairs.
8. Versatile options: Disc ball valves are available in a wide range of sizes and pressure levels, providing flexibility to meet the requirements of different projects.

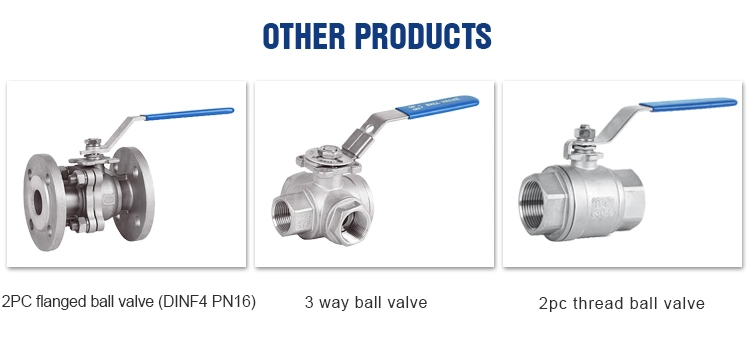

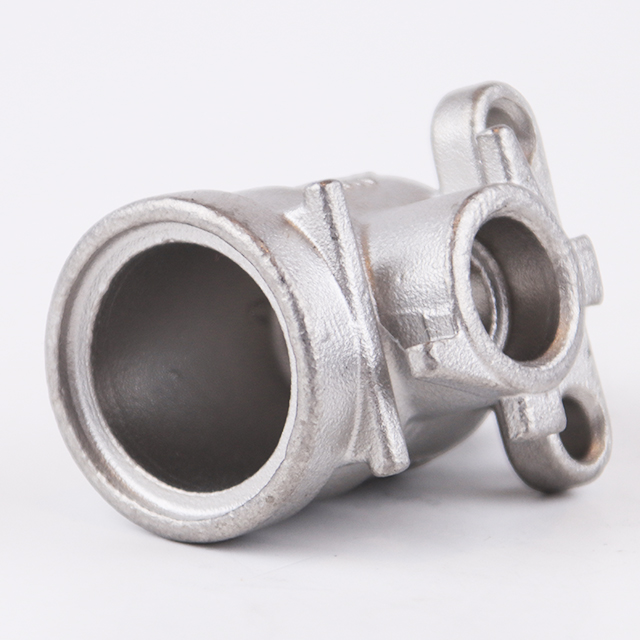

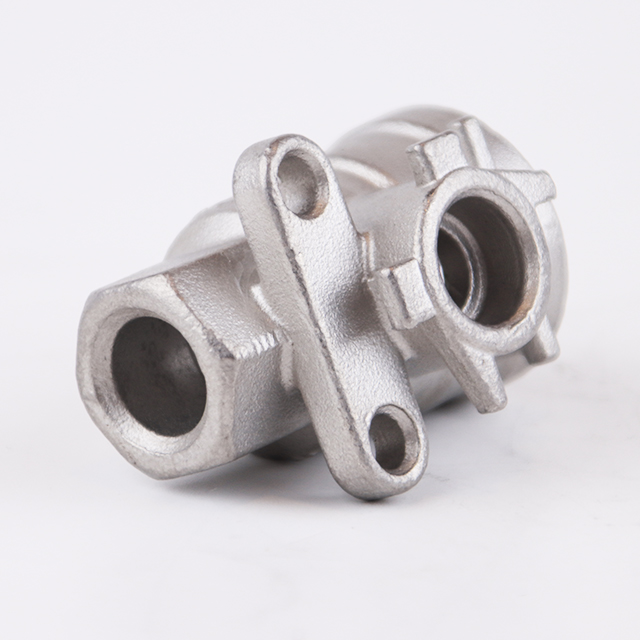

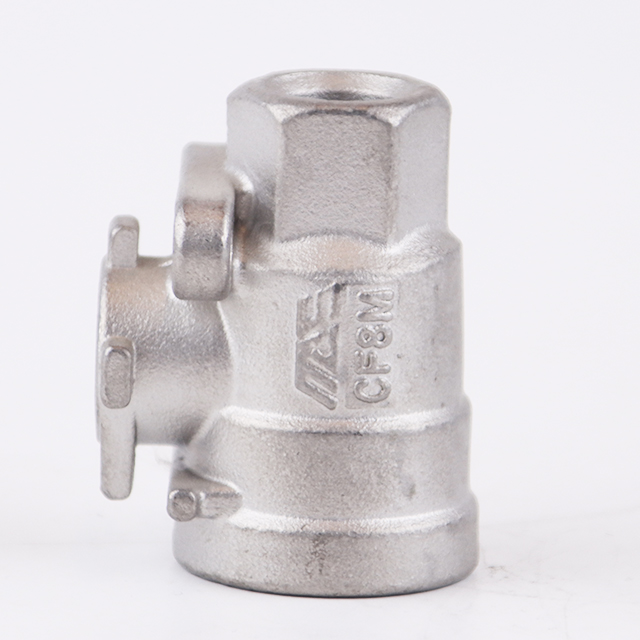

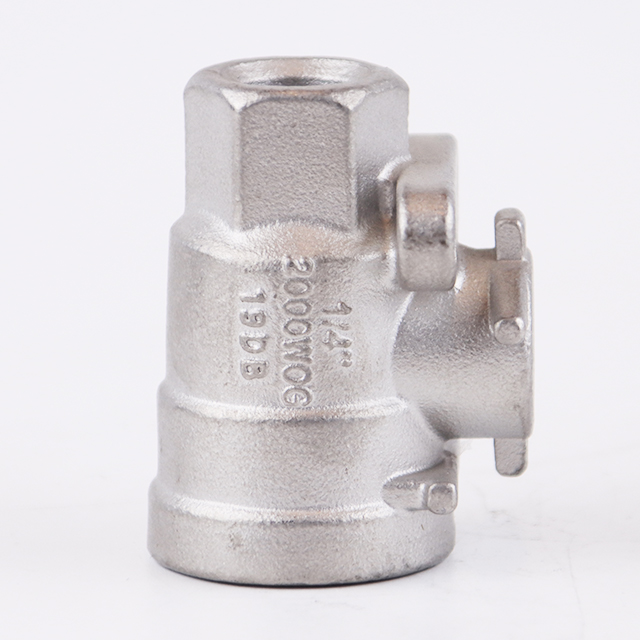

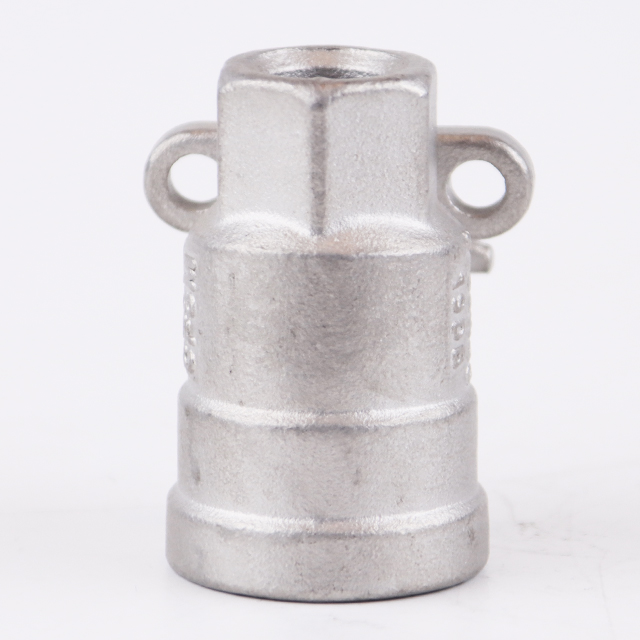

Other Product Images

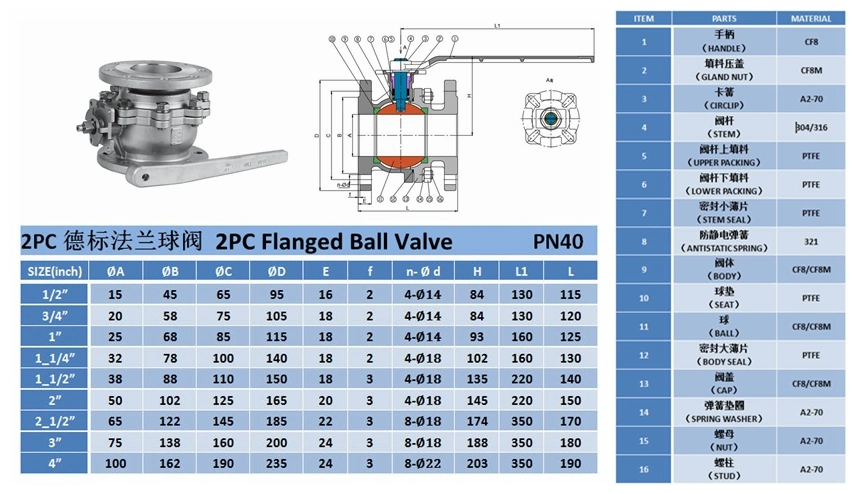

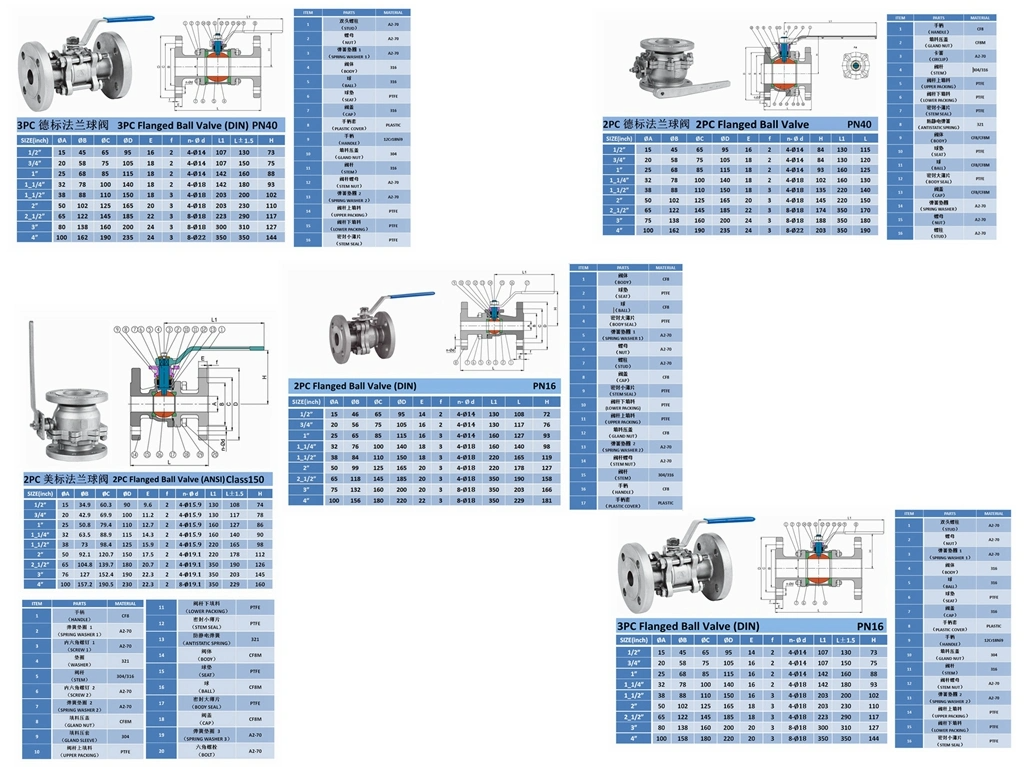

Technical Parameter
Media | Water | Material |
|
Connection Form | Clamp | Driving Mode |
|
Nominal Pressure | PN1.0-32.0MPa | Channel | Straight Through Type |
Structure | Floating Ball Valve | Type |
|
Function | Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve | Temperature | Normal Temperature |
Application | Industrial Usage, Water Industrial Usage, Household Usage | OEM | Yes |
Factory | Yes | MOQ | 1500 |
Customizable Trademark | Yes | Body Material |
|
Color |
| Transport Package |
|
Specification | 0.5kg to 1000kgs | Origin | ZheJiang,China |
Production Capacity | 10000000pieces/Year |
Application
Packaging & Shipping
 |  |  |
FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
