**Flange Ball Valve Product Introduction:**
The flange ball valve is a versatile industrial fluid control solution, particularly suited for a variety of challenging environments. Here's an innovative overview of its applications, structure, and standout features:
1. **Application Spectrum**:
- The floating ball valve is designed for broad industrial applications, including the chemical, petroleum, natural gas, and metallurgy sectors.
- It's also adept at handling corrosive media such as hydrogen sulfide and impure natural gases with robust resistance.
2. **Material Variability**:
- Tailored to specific needs, the valve's body material ranges from standard carbon steel (WCB, A105) to stainless steel (304, 316), low-temperature steel (LCB, LCC), and anti-sulfur series, ensuring suitability for diverse media.
3. **Structural Attributes**:
- A distinctive aspect of the floating ball valve is its lack of a support shaft, with the ball being "floated" by the seats on either side.
- This design is pivotal for on/off operations, flow distribution, and directional changes in the medium within pipelines.
4. **Seat Sealing Innovation**:
- The valve boasts a dependable seat sealing design that ensures a tight seal, even under reverse pressure conditions.
5. **Safety and Security Features**:
- Equipped with a fire static function, automatic pressure relief, and a locking device, the valve is designed with safety in mind.
6. **Main Structural Highlights**:
- The valve includes visual indicators for open and closed positions for ease of operation.
- It features a locking mechanism to prevent unauthorized adjustments.
- The valve stem is designed with a flight-proof structure to avoid tampering.
- An integrated anti-static device ensures compliance with safety standards.
- The valve is constructed with a fireproof design to withstand high temperatures.
- A unique seat sealing structure provides additional reliability in sealing performance.
- The mid-flange, connecting the valve body and the left body, is engineered to prevent external leakage.
The flange ball valve, with its comprehensive set of features and robust construction, is an optimal choice for industries requiring reliable fluid control and safety measures.
Name | Product model | Nominal diameter | Body material | Application field |

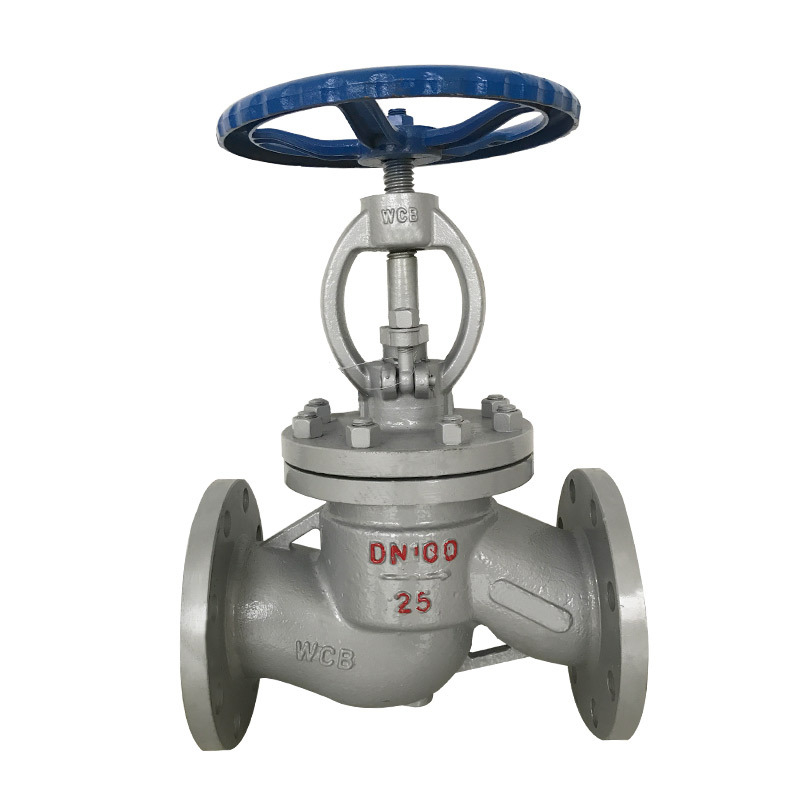

Cast steel flanged globe valve | J41H-25C | DN100 | Cast steel | Chemical industry, environmental protection, sewage treatment, medicine, municipal construction, etc |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements.
The above information is for reference only, Zhejiang Tieyong Machinery Manufacturing Co., Ltd. reserves the right to update the design, if you have any questions, please consult customer service.
2 Product Advantages
|
Valve body The valve body is all precision casting valve body material WCB standard |
Valve body coating The valve body is electrostatic coated with powder epoxy resin to prevent corrosion and rust |
|
|
Multi-level quality inspection From the blank to the finished product packaging factory each link layer quality inspection |
Exquisite appearance Inner parts CNC lathe processing, appearance processing after 2 times shot blasting, beautiful appearance |
|
3.Technical parameter
Form | cutoff | Overall dimension | minitype | Channel direction | Straight-through type |
Driving mode | Manual operation | Mode of action | Single action | Type (channel location) | cutoff |
Functional role | Cutoff type | Lining material | Stainless steel | Sealing material | Stainless steel 304 |
Sealing mode | Hard seal | Pressure environment | High tension | Temperature environment | hyperthermia |
Flow direction | unidirectional | Accessories available | Francois | Applicable industry | Metallurgy, chemical, petrochemical |
Applicable medium | Corrosive medium, weak acid-base medium |
4. Quality inspection equipment
Complete testing equipment to ensure product quality.
5.Packaging & Shipping
6. FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
