1. Product introduction

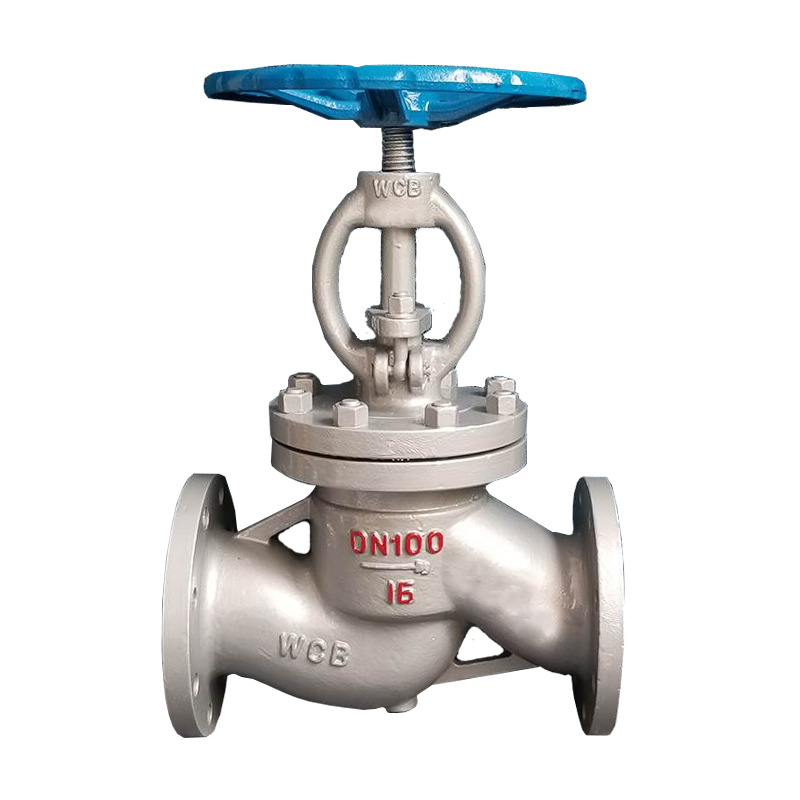

Cast steel globe valve is a common industrial valve, widely used in petroleum, chemical, electric power, metallurgy and other fields.
This paper will introduce the related knowledge of cast steel globe valve from the aspects of structural characteristics, working principle and application range.
First, structural characteristics
Cast steel globe valve is composed of body, valve cover, valve disc, valve stem and other parts.
It has compact structure, light weight, good sealing performance and flow regulation performance.
The valve stem and the valve cover are connected with threads for easy disassembly and maintenance.
The valve cover is provided with a sealing gasket to effectively prevent medium leakage.
Second, the working principle
The cast steel stop valve makes the disc move up and down by rotating the stem, so as to realize the cut-off or flow of the medium.
When the valve disc is raised, the valve disc is closely fitted with the seat, and the valve is closed; When the disc is lowered, the disc is separated from the seat, the medium passes through the valve, and the valve is open.
By adjusting the rotation Angle of the valve stem, the opening degree of the valve can be controlled to achieve the purpose of flow regulation.
3. Scope of application
Cast steel globe valves are suitable for piping systems with high temperature, high pressure and strong corrosive media.
Because of its compact structure, light weight and good sealing performance, it is widely used in petroleum, chemical industry, electric power, metallurgy and other industrial fields.
Especially in the petroleum and chemical industry, as a key equipment, cast steel globe valves can effectively control the flow and pressure of the medium, and the safety and stability of the production process.
Fourth, installation and maintenance
When installing the cast steel globe valve, the following points need to be noted:
1. The valve should be installed in a position that is easy to operate and maintain, and convenient for personnel to operate.
2. When installing the valve, pay attention to the connection between the valve stem and the valve cover to ensure that the connection is firm and prevent leakage.
3. Before using the valve, check the sealing performance of the valve to ensure that the valve works normally.
When maintaining cast steel globe valves, regular inspections and maintenance are required:
1. Check the sealing performance of the valve regularly. If leakage is found, replace the sealing gasket in time.
2. Regularly clean the inside of the valve, remove impurities on the valve disc and seat, and ensure the flexibility and normal operation of the valve.
3. When the valve is not used for a long time, anti-corrosion treatment should be carried out to prevent the valve from being corroded.
Summary: Cast steel globe valve, as a common industrial valve, has the characteristics of compact structure, light weight, good sealing performance, etc., and is widely used in petroleum, chemical, electric power, metallurgy and other fields.
Name | Product model | Nominal pressure | Nominal diameter | Body material | Applicable medium | Application field |
J41H-16C | PN16 | DN15-DN600 | Cast steel WCB | Water, steam, oil, etc | Tap water, sewage, construction, petroleum, chemical, electric power, etc |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements.
The above information is for reference only, Zhejiang Tieyong Machinery Manufacturing Co., Ltd. reserves the right to update the design, if you have any questions, please consult customer service.
2 Product Advantages
|
Valve body The material performance of the valve body with precision casting process meets the export standard |
Valve seat CR + surfacing 507 molybdenum increases the wear resistance of the seat |
|
|
Valve stem The valve stem is machined by cyclone milling to avoid the valve stem bending resulting in difficult switching |
Quality inspection From the blank to the finished product packaging factory each link layer quality inspection |
|
3.Technical parameter
Form | cutoff | Overall dimension | minitype | Channel direction | Straight-through type |
Driving mode | Manual operation | Mode of action | Single action | Type (channel location) | Straight-through type |
Functional role | Cutoff type | Lining material | Stainless steel | Sealing material | Stainless steel |
Sealing mode | Hard seal | Pressure environment | High tension | Temperature environment | Normal temperature |
Flow direction | unidirectional | Accessories available | Francois | Applicable industry | Water supply and drainage, environmental protection water treatment |
Applicable medium | Water, oil, steam |
4. Quality inspection equipment
Complete testing equipment to ensure product quality.
5.Packaging & Shipping
6. FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
