Introducing the fluorine-lined globe valve—a specialized forced seal valve designed to withstand the rigors of corrosive environments.
### How It Works
Unlike traditional valves, the fluorine-lined globe valve requires pressure to be applied to the valve disc during closure to ensure a leak-proof seal. When the medium enters from below the valve disc, the operating force must overcome the combined resistance of the valve stem's friction, packing force, and the thrust generated by the medium's pressure. The force needed to close the valve is greater than that for opening, necessitating a larger valve stem diameter to prevent stem breakage. Advances in self-sealing valve technology have shifted the flow direction, entering the valve chamber from the top of the valve disc. This innovation reduces the closing force and increases the opening force, allowing for a smaller stem diameter and enhancing the valve's sealing capability. Chinese valve standards, known as the "three to" regulations, mandate that the flow direction for globe valves should be from top to bottom.
### Construction and Applications
The steel body of the fluorine-lined globe valve features a metal housing with a lining of fluorinated plastic, providing exceptional resistance to a wide range of corrosive substances. It is suitable for various concentrations of acids, including sulfuric, hydrochloric, and hydrofluoric acids, as well as organic acids. It operates effectively in temperatures ranging from -50 to 150°C and is also fit for pipelines carrying corrosive gases and liquids, including strong oxidizers and strong alkaline organic solvents. The fluorine-lined globe valve is extensively utilized in industries such as petroleum, chemical, pharmaceutical, metallurgy, and electric power, where strong corrosive media are prevalent.
### Key Attributes
- **Superior Sealing**: The valve boasts excellent sealing properties with minimal friction between the sealing surfaces, contributing to its long service life.
- **Simplicity in Design**: Its straightforward structure facilitates ease of manufacturing and maintenance, reducing downtime and operational costs.
- **Compact Operation**: With a small working stroke and swift opening and closing times, the valve ensures efficient flow control and quick response to operational demands.
Name | Product model | Nominal diameter | Body material | Nominal pressure | Applicable medium | Application field |

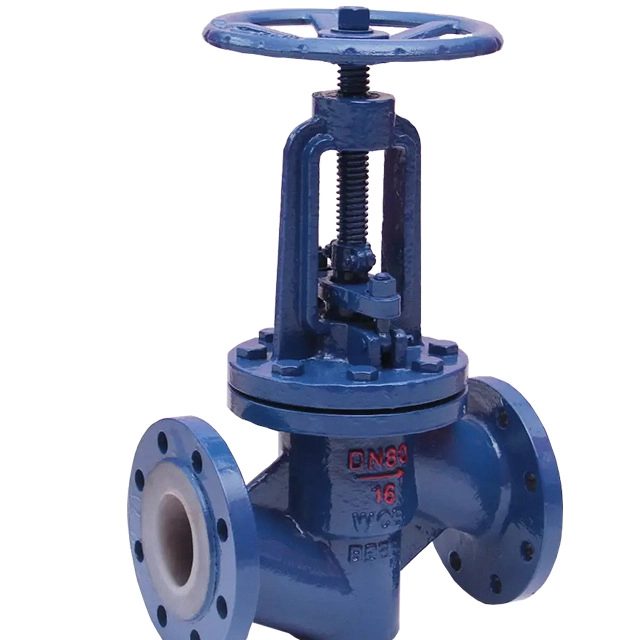

Flanged stop valve lined with fluorine | J41F46-16C | DN15-300 | Cast steel/stainless steel | PN16 | Corrosive medium | Medicine, chemical industry, environmental protection, petroleum, etc |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements.
The above information is for reference only, Zhejiang Tieyong Machinery Manufacturing Co., Ltd. reserves the right to update the design, if you have any questions, please consult customer service.
2 Product Advantages
|
Valve body Adopting precision casting process, the material performance of the valve body meets the export standard |
Lining The valve body and lining inner parts in direct contact with the medium are all lined with fluorine plastic |
|
|
Sealing pair The sealing pair is FEP/FEP or other material combination, with small friction coefficient and low opening and closing torque |
Valve clack The valve disc is integrated with the valve stem, which can prevent the possibility of the internals bursting out of the valve body caused by the fluctuation of pipeline pressure, and it is safe to use |
|
3.Technical parameter
Form | cutoff | Overall dimension | minitype | Channel direction | Straight-through type |
Driving mode | Manual operation | Mode of action | Single action | Type (channel location) | Straight-through type |
Functional role | Cutoff type | Lining material | fluoroplastics | Sealing material | All fluorine lined |
Sealing mode | Hard seal | Pressure environment | Atmospheric pressure | Temperature environment | Normal temperature |
Flow direction | unidirectional | Accessories available | Francois | Applicable industry | Chemical engineering |
Applicable medium | Corrosive medium |
