In the industrial landscape, the selection and application of valves play a critical role in ensuring operational efficiency, safety, and cost-effectiveness. Among the myriad of valve types available, butterfly valves and check valves stand out due to their widespread use across various sectors such as manufacturing, chemical processing, and water treatment. Understanding the fundamental differences between these two types of valves is crucial for manufacturers, distributors, and end-users alike. This paper aims to provide a comprehensive analysis of the differences between butterfly valves and check valves, focusing on their design, function, applications, and advantages.
To grasp these distinctions, it is essential first to understand what each valve is designed to do. A butterfly valve is a type of flow control device, used to regulate a fluid flowing through a section of pipe. The design and functionality make it suitable for a variety of industrial applications where space and weight are concerns. On the other hand, a check valve is a type of valve that allows fluid to flow in one direction only, preventing backflow and ensuring the proper functioning of equipment downstream.
Given the importance of selecting the appropriate valve for specific applications, this paper will delve into the technical aspects, design considerations, and operational efficiencies of both butterfly valves and check valves. By understanding these factors, industry professionals can make informed decisions that enhance the performance and reliability of their systems.
Furthermore, this paper will also explore the implications of these differences for various stakeholders in the supply chain, from manufacturers to distributors and end-users. This comprehensive approach ensures that all relevant factors are considered when making valve selections, ultimately leading to more efficient and cost-effective operations.
The butterfly valve is characterized by its simple yet effective design. The primary components include a disc mounted on a rotating shaft, which controls the flow of fluid. The disc, positioned in the center of the pipe, rotates perpendicular or parallel to the flow direction to either allow or restrict fluid passage. When fully open, the disc is parallel to the flow and offers minimal resistance, making butterfly valves highly efficient for controlling large volumes of fluids.
The construction materials for butterfly valves vary depending on their intended application. Common materials include cast iron, stainless steel, and other corrosion-resistant alloys. Additionally, seals and linings made from elastomers or polymers are often used to enhance sealing performance and extend the valve’s service life.
Butterfly valves are available in various configurations, including concentric (or centered), double-offset (high-performance), and triple-offset designs. Each configuration offers distinct advantages in terms of sealing capability, durability, and suitability for high-pressure applications.
Check valves, also known as non-return or one-way valves, are designed to permit fluid flow in one direction only. The primary components include a valve body with an internal movable element that opens under forward flow pressure and closes when flow reverses. The most common types of check valves include swing check valves, lift check valves, and ball check valves.

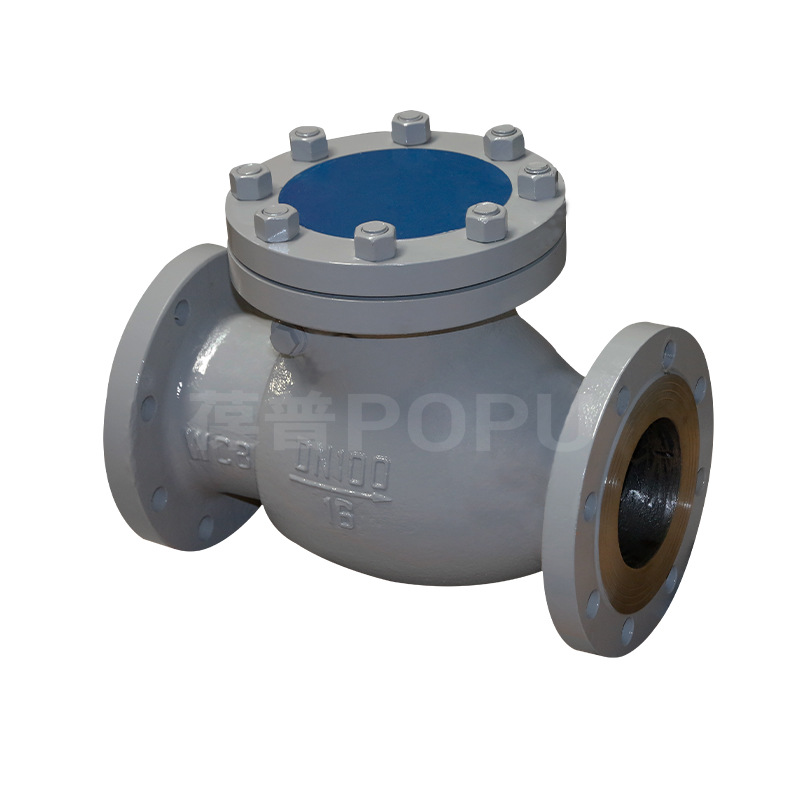

Swing check valves feature a hinged disc that swings open to allow forward flow and swings shut under reverse flow conditions. Lift check valves use a guided piston or disc that moves vertically within the valve body to allow or block fluid flow. Ball check valves utilize a spherical ball that moves within a chamber to prevent backflow.
The materials used in check valve construction vary widely depending on the application but typically include metals such as stainless steel or brass for durability and chemical resistance. Some designs may also incorporate elastomeric materials for enhanced sealing performance.
The primary function of a butterfly valve is to regulate or isolate the flow of fluids within a pipeline. The valve achieves this through the rotation of its disc, which can be adjusted to any position between fully open and fully closed. This ability to modulate flow makes butterfly valves ideal for throttling applications where precise flow control is necessary.
One of the key advantages of butterfly valves is their low-pressure drop when fully open due to their streamlined design. This characteristic makes them highly efficient for handling large volumes of fluid with minimal energy loss. Additionally, the compact size and lightweight nature of butterfly valves make them suitable for applications where space constraints are a concern.
The check valve serves a fundamentally different purpose than the butterfly valve. Its primary function is to prevent backflow in a piping system. When fluid flows in the desired direction, the internal mechanism (whether it be a disc, ball, or piston) moves out of the way to allow passage. However, if the flow reverses, gravity or backpressure forces the mechanism to close off the flow path automatically.
This one-way operation is crucial in systems where backflow could cause damage or contamination downstream, such as in water treatment plants or chemical processing facilities. Because check valves operate automatically without manual intervention or external control systems, they are often considered fail-safe devices in many critical applications.
Butterfly valves are versatile components used across a wide range of industries due to their ability to handle various types of fluids—including gases, liquids, and slurries—with ease. They are commonly found in:
Water Treatment Plants: Butterfly valves are extensively used in water distribution systems for regulating flow rates and isolating sections of pipelines.
HVAC Systems: In heating, ventilation, and air conditioning systems, butterfly valves control air and water flow efficiently.
Chemical Processing: Their ability to handle corrosive fluids makes them suitable for chemical processing applications.
Food & Beverage Industry: Butterfly valves are employed for their hygienic properties and ease of cleaning in processes involving food-grade liquids.
Check valves are critical in applications where preventing backflow is essential to maintain system integrity and prevent damage or contamination. Some typical applications include:
Pumping Systems: Check valves prevent backflow that could damage pumps when they shut down.
Wastewater Treatment: They are used to ensure unidirectional flow in sewage lines to prevent contamination.
Oil & Gas Industry: Check valves are utilized in pipelines to prevent reverse flow of oil or gas.
Fire Protection Systems: In fire suppression systems, check valves maintain water pressure and prevent contamination by stagnant water.
Butterfly valves offer several advantages that make them highly desirable in various industrial applications:
Cost-Effectiveness: Butterfly valves are generally less expensive compared to other types of valves like gate or ball valves.
Compact Design: Their small footprint makes them ideal for use in systems with limited space.
Low Maintenance: With fewer moving parts than other valve types, butterfly valves require minimal maintenance.
Versatility: They can handle a wide range of fluids and operating conditions.
Energy Efficiency: Low pressure drop across the valve translates into reduced energy consumption for fluid transport.
Check valves also provide several key benefits that make them indispensable in specific applications:
Simplicity: Check valves operate automatically without external control systems.
Reliability: They provide a fail-safe mechanism that prevents backflow even in power outages or system failures.
Durability: Constructed from robust materials, check valves have long service lives even under harsh operating conditions.
Minimal Pressure Drop: Properly sized check valves have low resistance to forward flow.
Maintenance-Free Operation: Once installed, they require little to no maintenance under normal operating conditions.
Selecting between a butterfly valve and a check valve depends largely on the specific requirements of the application at hand:
If precise flow control is necessary alongside space efficiency, a butterfly valve may be more appropriate.
If preventing backflow is critical without needing additional control mechanisms or manual operation, then a check valve is likely the better option.
Other factors to consider include the type of fluid being handled (e.g., corrosive or abrasive), operating pressures and temperatures, maintenance requirements, and cost constraints.
In conclusion, both butterfly valves and check valves serve critical roles in industrial operations but are suited to different applications due to their unique designs and functionalities. Understanding these differences enables industry professionals—from manufacturers to distributors—to make informed decisions that optimize system performance and reliability while minimizing costs.
Butterfly Valve remains an excellent choice for applications requiring efficient flow control with minimal maintenance needs. On the other hand, for applications where preventing backflow is paramount, investing in Check Valve technology will ensure long-term operational reliability.
