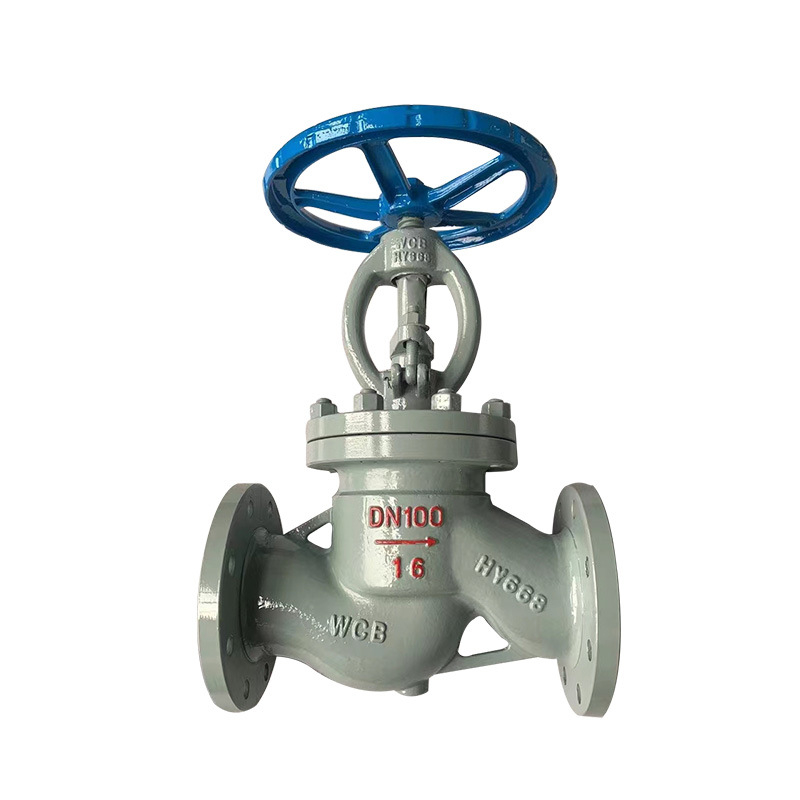

1. Product introduction
1. ** High temperature and high pressure ** : This stop valve is designed to withstand high temperature and high pressure steam environment, commonly used in industrial steam systems, power plants and heat exchangers.
2. ** Material selection ** : The valve body and valve cover are usually made of high temperature and high pressure resistant materials, such as carbon steel, alloy steel or stainless steel, to ensure sufficient strength and corrosion resistance under high temperature and high pressure.
3. ** Structure design ** : The valve adopts a cut-off structure, the valve flap can be completely closed to cut off the steam flow, which is suitable for occasions where the steam flow needs to be accurately controlled.
4. ** Manual operation ** : The valve is equipped with a manual wheel, and the operator can control the opening and closing of the valve by rotating it. This design is simple and reliable, and is suitable for occasions where manual control is required.
6. ** Easy maintenance ** : Due to the simple structure, the maintenance and repair of the manual high temperature and high pressure steam stop valve is relatively easy, reducing maintenance costs and downtime.
7. ** Widely used ** : In addition to being used in steam systems, this valve can also be used in petroleum, chemical, food processing and pharmaceutical industries to handle a variety of high temperature and high pressure fluids.
8. ** Safety features ** : Valve design usually includes safety devices to prevent overpressure, such as safety valves or pressure relief valves, to ensure the safety of the system under abnormal conditions.
9. Various specifications ** : According to the different pipe diameter, working pressure and temperature, provide a variety of specifications of valves to meet the needs of different industrial applications.
10. ** Certification standard ** : Manual high temperature and high pressure steam globe valves usually follow the relevant international and domestic standards, such as API, DIN, BS, GB, etc., to ensure that their quality and performance meet industry requirements.
Name | Product model | Nominal diameter | Body material | Application field |
Manual high temperature and high pressure steam stop valve | J41H-16C | DN15-DN600 | Cast steel | Chemical, environmental protection, sewage treatment, medicine, municipal, etc |
Note: The configuration of each part of this product is optional, please consult us for details, explain your specifications and requirements.
The above information is for reference only, Zhejiang Tieyong Machinery Manufacturing Co., Ltd. reserves the right to update the design, if you have any questions, please consult customer service.
2 Product Advantages
|
Valve body The material performance of the valve body with precision casting process meets the export standard |
Valve seat CR + surfacing 507 molybdenum increases the wear resistance of the seat |
|
|
Valve stem The valve stem is machined by cyclone milling to avoid the valve stem bending resulting in difficult switching |
Quality inspection From the blank to the finished product packaging factory each link layer quality inspection |
|
3.Technical parameter
Connection form | Francois | material | Cast steel | Nominal diameter | DN100 (mm) |
Applicable medium | steam | Pressure environment | High tension | Operating temperature | hyperthermia |
Standard | National standard | appearance | minitype | Flow direction | unidirectional |
Driving mode | Manual operation | Parts and accessories | actuator | form | Plunger type |
Type (channel location) | Straight-through type | 3C Valve Category | industry | specification | DN15,DN20,DN25,DN32,DN40,DN50,DN65,DN80,DN100,DN125,DN150,DN200,DN250,DN300,DN350,DN400 |
4. Quality inspection equipment
Complete testing equipment to ensure product quality.
5.Packaging & Shipping
6. FAQ
1. What is the Minimum Order Quantity?
5~1000 pcs.And we also accpet sample orders.
2. Can you manufacture according to customer's samples?
According to samples, we can make drawing, tooling and sample
3.How long will it take to make new samples according to customer's drawing or sample?
Totally 20 days. 10 days for tooling and another 10 days for sample.
